System-Level UV LED Solutions Covering the
Full Home Appliance Ecosystem

We deliver proven UV LED disinfection solutions for air, surface, and water applications across a wide range of household appliances. From component selection and
optical simulation to dose validation and reliability testing, we support manufacturers in integrating reliable, compliant, and production-ready
UV LED systems into their products.

White Goods



Appliances: Air Conditioners, Washing Machines, Refrigerators



We integrate UVC LED technology across major home appliances to enhance hygiene and safety. In air conditioners, it sterilizes circulating air, effectively removing bacteria, viruses, and allergens to improve indoor air quality. In washing machines, it disinfects water and drum surfaces, preventing mold growth and secondary contamination of laundry. In refrigerators, it suppresses bacterial growth on food surfaces, prolonging freshness. With extensive collaboration with leading white goods brands, we have accumulated mature, proven application experience.

Smart Appliances
2

Water Purifiers



Appliances: Drinking Water Filtration Systems, Under Sink RO Water Filters, Countertop RO Water Filters



We provide compact, modular UVC LED sterilization modules covering a full flow range from 0.5L/min to 50L/min, adaptable to various water purification systems. Optimized optical design and long-lasting UVC LED solutions achieve high inactivation efficiency for bacteria and viruses, ensuring safe drinking water. We have successfully delivered stable, large-volume supply to multiple domestic and international water purifier brands, demonstrating mature customization experience and scalable production capability.

Kitchen & Bathroom Appliances



Appliances: Dishwashers, Sterilizing Cabinets, Smart Toilets



For kitchen and bathroom appliances with diverse structural requirements, we provide customized optical and thermal integration solutions. In refrigerators, our solutions effectively inhibit bacterial and mold growth, reducing cross-contamination and odors. In dishwashers, they deliver deep sterilization of the internal cavity and spray water, eliminating microbial residues and enhancing dish hygiene. We collaborate with leading kitchen appliance brands, providing end-to-end capabilities from optical design and module development to validation and mass production.

Smart Appliances
2

Environmental & Cleaning Appliances



Appliances: Air Purifiers, Robot Vacuums, Humidifiers, Mite Removal Devices, Vacuum Cleaners



Our UV sterilization systems are integrated into the air ducts or behind filters of indoor air systems to efficiently inactivate bacteria, viruses, and allergens, purifying the air at its source. For washing machines, our modules continuously sterilize the drum, washing water, and other damp components, effectively eliminating mold and bacteria, preventing odors, and reducing the risk of secondary contamination of laundry. We have successfully supplied these solutions in stable, large volumes to leading appliance brands, ensuring both reliable delivery and consistent product quality.

Personal Care Appliances



Appliances: Toothbrush Sterilizers, Eyewear Sterilizers, Earphone Sterilizers



Our UV sterilization solutions for personal hygiene devices are engineered to efficiently disinfect small items, such as toothbrush heads, lenses, and ear tips, eliminating bacteria and mold that accumulate during daily use. We provide leading personal care brands with ultra-compact, low-power, and easy-to-integrate UVC LED modules, featuring battery or USB power, smart sensor-controlled operation, and built-in safety protection. These solutions enable the development of safe, portable, and user-friendly daily sterilization products.

Smart Appliances
2

Maternal & Baby Appliances



Appliances: Baby Sterilizers, Infant Clothes Dryers, Baby Care Tool Sterilization Boxes



We precisely engineered the optical layout to deliver 360° disinfection of surfaces and crevices on items such as baby bottles, clothing, and teething toys. They effectively inactivate common pathogens, including E. coli and Staphylococcus aureus, without producing chemical residues or ozone. We provide leading maternal and baby brands with customized UVC LED sterilization modules featuring low-temperature operation to protect sensitive materials, smart sensor-controlled safety (automatic shut-off when opened), and quiet operation.

Related Products for Smart Appliance Applications
modular-1

Applications: Instant Water Dispensers, Countertop/Undersink Purifiers, Direct Drinking Machines

  • Water Flow: 3-5L/min
  • Disinfection Rate: >99.99%
  • Radiant LOP: ≥180mW
  • Drive Type: 12V-24V Constant Voltage, Customizable
  • Power: 5W~8W
  • Spout Interface:3/8" Quick Connector

Custom-designed with aluminum and food-grade PC composite housing, our UVC modules efficiently inactivate common microorganisms such as E. coli and influenza virus.


modular-2

Applications: Water System in Smart Toilet

  • Water Flow: 0.5L/min~1L/min
  • Disinfection Rate: ≥99.9%
  • Radiant LOP: 15mW~30mW
  • Drive Type: 12V-24V Constant Voltage.Customizable
  • Power: 1-1.6W
  • Product Dimension: 97mm×30mm×33mm

These UVC modules are integrated into inlet pipes, nozzles, or inner surfaces, providing real-time, continuous disinfection of flowing water, effectively eliminating bacteria, viruses, and biofilm hazards from source to outlet.


modular-3

Applications: Water storage devices in water dispensers and humidifiers.

  • Radiant LOP: ≥10mW
  • Drive Type: 24V Constant Voltage, Customizable
  • Power: ≤1W
  • Product Dimension: φ37mm×18mm

Compact and food-safe, these modules fit limited spaces and feature a wide-angle light field to ensure full water coverage, effectively eliminating E. coli and other common microbes.


modular-4

Applications: Air Conditioners, Fresh Air Systems, Air Purification Equipment

  • Radiant LOP: 15mW~30mW
  • Drive Type: Constant Voltage,DC12V
  • Power: ≤0.72W
  • Product Dimension: 52mm×27mm×8mm

Designed for continuous in-device air sterilization, our modules efficiently inactivate airborne bacteria, viruses, and allergens while decomposing odor molecules.




> 15,000 Hours

L70 Lifetime



Up to 13.6%

Wall-Plug Efficiency



Up to >99.9999%

Sterilization Rate



CE, RoHS, ISO 9001

Compliant

Engineered for Performance,
Safety, and Compliance
Customized Design & Engineering Support
Contact Our Experts

We provide end-to-end engineering and validation services to help appliance manufacturers bring safe, effective, and production-ready UV LED disinfection solutions into real products.

  • Customized Wavelength & Dose Engineering

    Based on microbial inactivation models and your specific application (surface, air, or water disinfection), we design precise wavelength selection and irradiation dose schemes. Spectral–material–pathogen matching analysis is applied to maximize energy efficiency and avoid under-design or over-design.
  • Optical & Thermal Co-Design

    We provide optical design services to precisely control spot shape, irradiation distance, and uniformity, while developing high-efficiency thermal architectures to maintain stable LED junction temperature, extend lifetime, and sustain output power.
  • System Integration & Simulation Validation

    Using optical and thermal simulation platforms, we evaluate light field distribution, thermal behavior, and dose achievement before prototyping. We also provide electrical driving and intelligent control solutions that support integrated with PWM dimming, motion-sensor linkage, and energy monitoring.
  • Co-Development & Rapid Prototyping

    For innovative application scenarios, we form dedicated technical teams and support collaborative development from concept design to prototype integration. Modular kits (including LED arrays, optics, drivers, and sensors) can be delivered, significantly shortening your system development cycle.
  • Scientific Testing & Data Support

    We conduct quantitative germicidal testing in standard laboratories and provide inactivation reports for target pathogens, together with environmental reliability and other performance validation data.
  • Scalable Manufacturing & Consistency Control

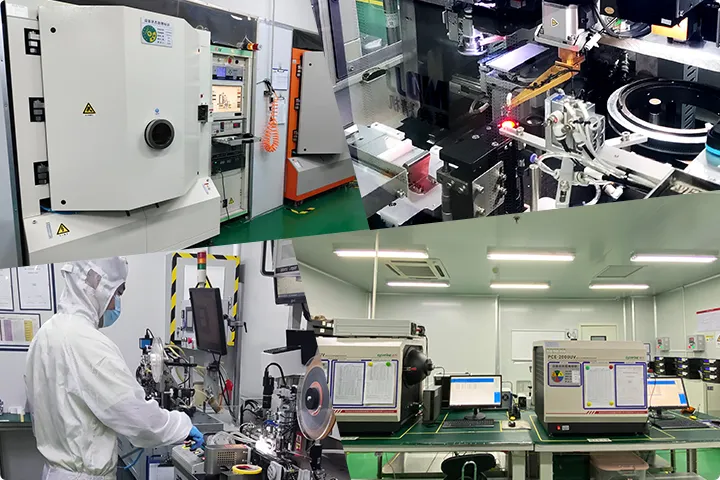

    Backed by a vertically integrated supply chain covering epitaxy, chips, packaging, modules, and systems, we enable full-process quality traceability from wafer level to system level. Our quality management system ensures high consistency in mass production.
  • Flexible Supply & Long-Term Support

    We support flexible small-batch and multi-lot supply to meet market trials and iterative development needs. Safety stock and forecast-based material planning ensure on-time delivery. Product lifecycle management support includes upgrade planning, EOL notifications, and alternative solution transitions.
Explore More Solutions Across Industries
1

Biomedicine and Chemical Synthesis

2001

Automotive UV LED Application

2001

Water Disinfection

4001

All-LED Curing

From Proven Engineering to
Production-Ready Solutions

As a vertically integrated, third-generation semiconductor–based UV LED solution provider, we deliver full-chain support from optical design, thermal management, and data-driven simulation and validation to mass-production readiness.

Backed by extensive real-world applications, verified performance data, and long-term reliability testing, our solutions are trusted by leading brands to reduce development risk and accelerate time to market.

Get a Customized System Proposal

Share details about your application and requirements. Our engineering team will assess technical feasibility and define the optimal solution based on your specific requirements.
