Industrial & Municipal Water Disinfection Solutions

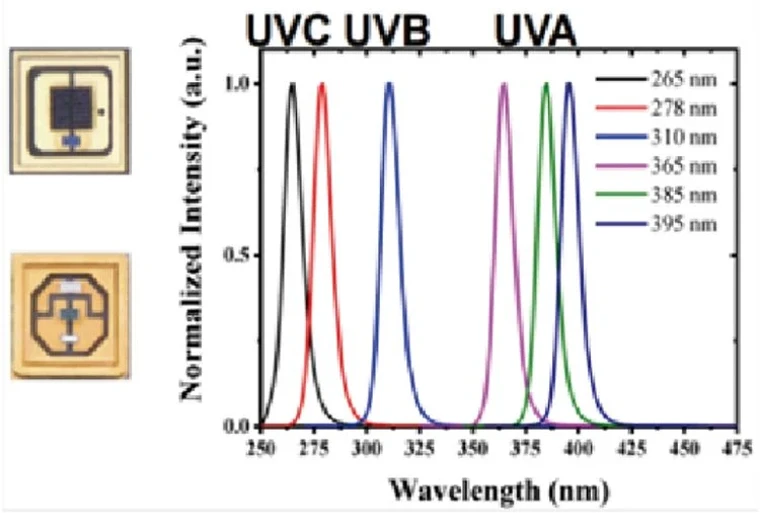

Light-Field Design Ensures Comprehensive Sterilization Without Dead Zones

Through advanced geometric optical design combined with multi-medium penetration simulation and multiphysics numerical modeling techniques, ultraviolet light is precisely delivered throughout the whole reaction chamber, so as to ensure that every corner of the water body receives adequate UV exposure, achieving comprehensive sterilization without blind spots.

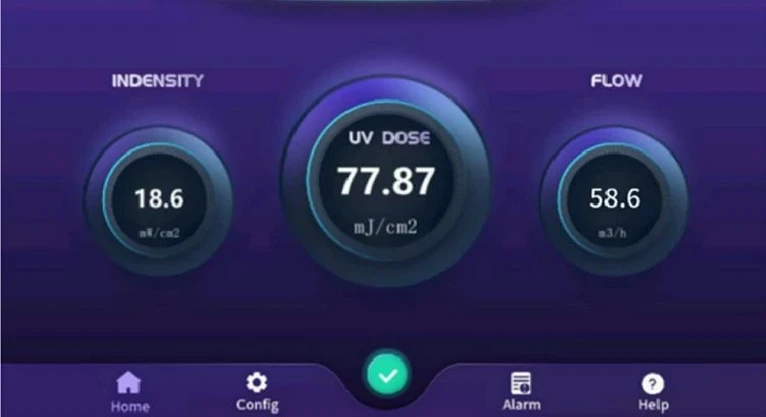

A Simple and Clear User Interface for Easy Operation

The UV-C LED disinfection system features a simple and intuitive human-machine interface. Operators can easily monitor key operational parameters, such as current dosage, light intensity, and flow rate, through this interface. Additionally, the menus provide convenient access to device logs and alarm information.

This user-friendly design reduces training requirements, enhances maintenance efficiency, and enables more efficient equipment management.

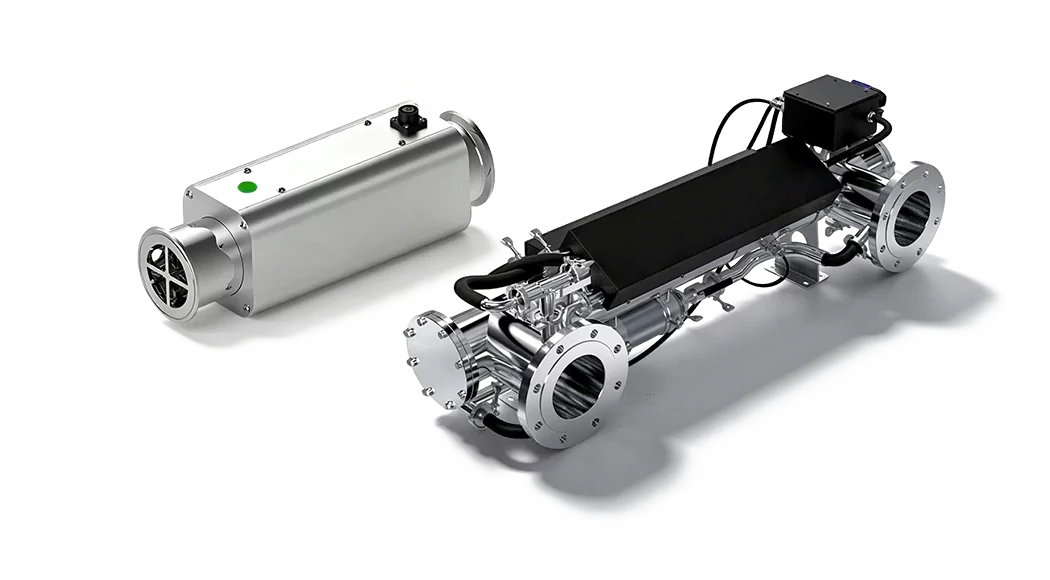

Modular Design Simplifies Maintenance Operations

The UV-C LED ultraviolet disinfection system adopts a modular design, with the light source and reaction chamber operating independently. This configuration allows rapid module replacement when failures occur without disrupting the water supply, ensuring continuous and stable operation. The system enables coordinated adjustment with flow rate, residual chlorine levels, and UVT parameters for precise adaptation to various working conditions.

A UVC LED water disinfection system uses ultraviolet-C light to inactivate microorganisms in water without adding chemical disinfectants. Compared with traditional mercury UV lamps, UVC LED systems offer mercury-free operation, instant start, compact design, and easier intelligent control.

UVC LED disinfection can be used in municipal water supply, secondary water supply, direct drinking water, industrial process water, wastewater treatment, and other water safety applications. The system should be selected based on flow rate, UVT, target UV dose, pipe size, and installation conditions.

UVC LED disinfection is a physical disinfection method that does not require chemical dosing. It helps reduce chemical-handling risks, avoids chemical residues and certain disinfection by-products, and provides fast microbial inactivation under a validated UV dose.

Yes, UVC LED systems can be used as a mercury-free alternative to conventional UV lamp systems in suitable applications. They start instantly, do not require warm-up time, and can be integrated with intelligent control systems for more flexible operation.

UVLEDTEK provides different UVC LED water disinfection systems for project requirements. The secondary water supply series covers high-flow options from 10T/h to 120T/h, while the direct drinking water series includes 3T/h and 5T/h options.

To recommend a suitable system configuration, we usually need the project application, flow rate, UVT, pipe size, water temperature, target UV dose or microbial control requirement, installation space, and control or monitoring requirements.

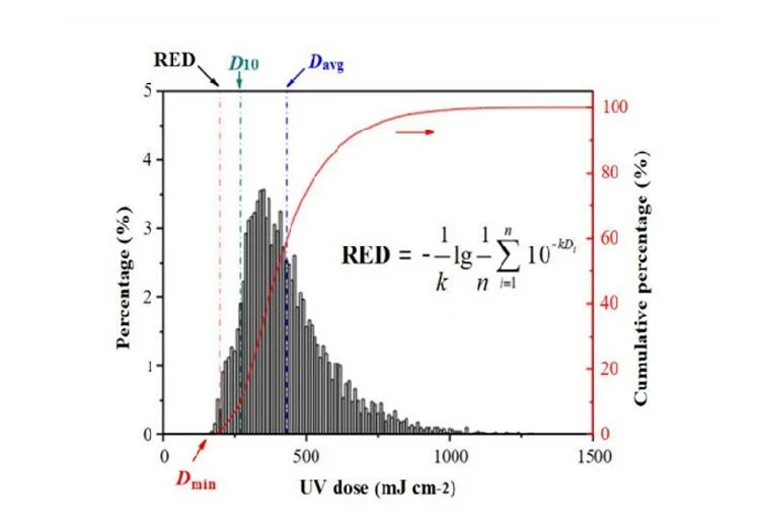

UVLEDTEK improves dose stability through optimized reactor design, optical field distribution, flow-field design, and RED-CFD simulation support. These engineering methods help improve UV exposure and system matching under real operating conditions.

Yes. UVLEDTEK can support system configuration based on flow capacity, water quality, installation space, pipe layout, control requirements, and application scenario.

You can submit your project parameters, such as flow rate, UVT, pipe size, application type, and installation conditions. UVLEDTEK's engineering team will help evaluate the requirements and recommend a suitable UVC LED disinfection system configuration.
