Application |
Model |
Product |
Applicable Flow Rate Range |
Dimensions |
Sterilization Rate |
Driving Method |
Power |
Water Nozzle Interface |
|
Water Disinfection-Water Purifier/Dispenser |
Water Purifier flow-through sterilization module |
|
0.5L/min~1L/min |
15mm×13mm×86mm (with water spout) |
≥99.999% |
12V~24VConstant Voltage, Custom Design & Manufacturing |
2W~2.4W |
1/4" Quick-Connect Fitting |
|
Home Appliance -Humidifier |
Humidifier water flow sterilization module |
|
1.5L/min |
Φ22mm×42mm |
≥99.99% |
12V~24VConstant Voltage, Custom Design & Manufacturing |
6W~7.2W |
1/4" Quick-Connect Fitting |
|
Water Disinfection-Water Purifier/Dispenser |
Water Purifier flow-through sterilization module |
|
3L/min |
81mmx67mmx46mm |
NSF55,CLASS B |
12V~24VConstant Voltage, Custom Design & Manufacturing |
12W~15W |
3/8" Quick-Connect Fitting |
|
Home Appliance-Kitchen & Bathroom Appliances |
Intelligent toilet flow-through sterilization module |
|
0.5L/min~1L/min |
43mm×36mm×40mm |
≥99.9% |
12V~24VConstant Voltage, Custom Design & Manufacturing |
1W~1.2W |
1/4" Quick-Connect Fitting |
|
Home Appliance-Kitchen & Bathroom Appliances |
Intelligent toilet flow-through sterilization module |
|
0.5L/min~1L/min |
97mm×30mm×33mm |
≥99.9% |
12V~24VConstant Voltage, Custom Design & Manufacturing |
1W~1.6W |
1/4" Quick-Connect Fitting |
|
Water Disinfection-Water Purifier/Dispenser |
Instant Hot/Cold Water Purifier flow-through sterilization module |
|
0.5L/min~1.5L/min |
18.5mm×16mm×103mm |
≥99.999% |
12V~24VConstant Voltage, Custom Design & Manufacturing |
2W~3W |
1/4" Quick-Connect Fitting |
|
Water Disinfection-Water Purifier/Dispenser |
Water Purifier flow-through sterilization module |
|
1L/min~2L/min |
24mm×20mm×100mm |
≥99.999% |
12V~24VConstant Voltage, Custom Design & Manufacturing |
2W~3.6W |
1/4" Quick-Connect Fitting |
|
Water Disinfection-Water Purifier/Dispenser |
Water Purifier flow-through sterilization module |
|
3L/min~5L/min |
29.6mm×26.6mm×133mm |
≥99.999% |
12V~24VConstant Voltage, Custom Design & Manufacturing |
5W~8W |
3/8" Quick-Connect Fitting |
|
Water Disinfection-Whole house water purification |
Whole house purified water flow-through sterilization module |
|
10L/min~20L/min |
Φ82.1mm×256mm |
≥99.999% |
12V~24VConstant Voltage, Custom Design & Manufacturing |
20W~22W |
3/4" Threaded Port |

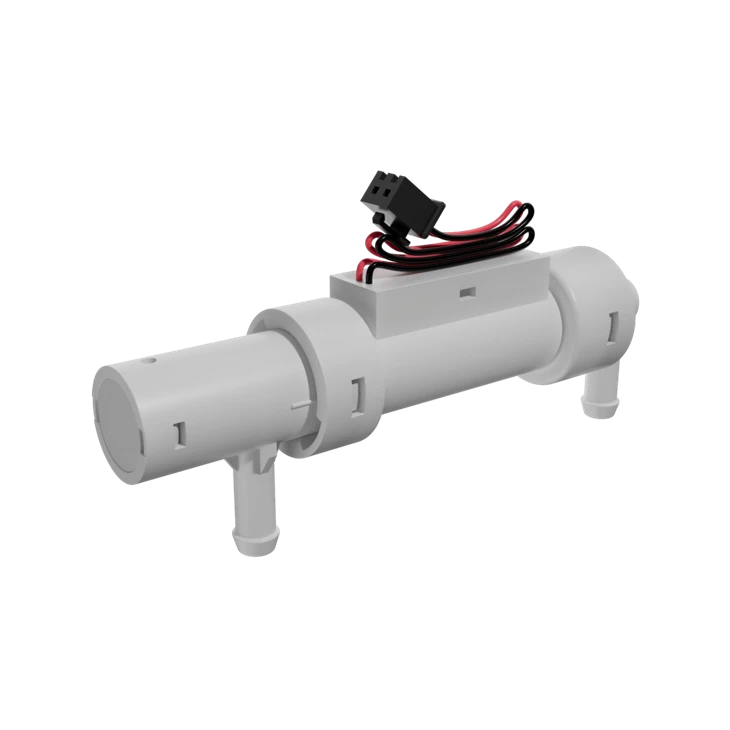

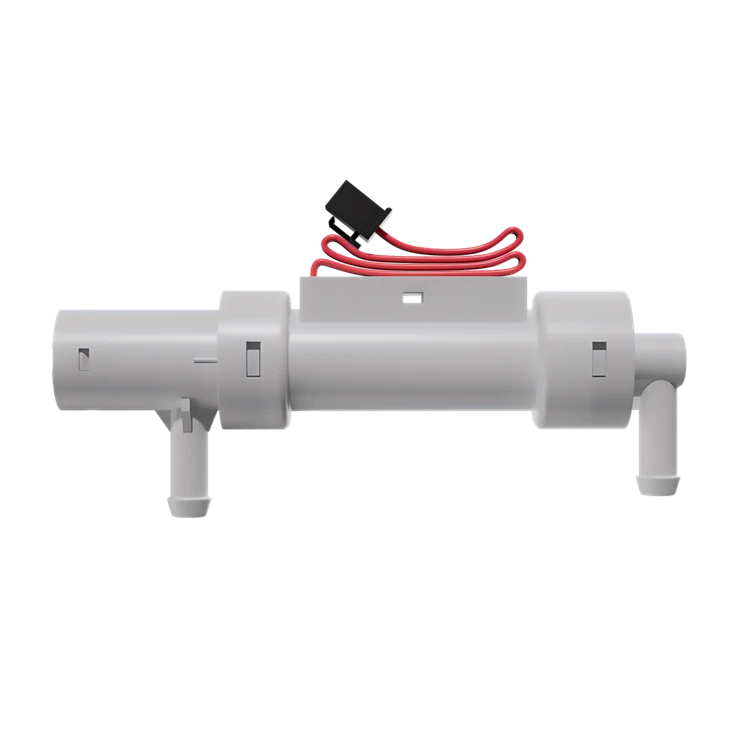

High-Flow Water Sterilization Module (AqueGuard-A)
UVLEDTEK High-Flow Water Sterilization Module (AqueGuard-A) is applied to commercial water dispensers and high-flow water purification equipment. It provides efficient and stable disinfection for large-flow water systems and meets NSF certification standards. It features high flow rate adaptation, high disinfection efficiency, reliable performance and suitability for offices and public places.
As a professional manufacturer and supplier of UVLEDTEK flow-through UVC water disinfection modules based in China, we deliver complete inline UV sterilization solutions tailored for water purifiers, water dispensers, humidifiers, smart toilets, instant hot & cold water appliances and whole-house water purification systems. Our product lineup includes inline flow-through UVC sterilizers, static water UV disinfection modules, DC12V/24V UVC water treatment components and NSF-certified germicidal UV LED units with comprehensive custom engineering support. We sincerely invite global equipment manufacturers to source bespoke flow-through sterilization modules straight from our factory. As a trusted OEM supplier and bulk wholesale manufacturer of UV disinfection lighting parts, our UVC modules integrate seamlessly into kitchen and bathroom household appliances, with fully flexible OEM & ODM customization available for voltage, wiring connectors and physical dimensions to meet all water sterilization equipment development demands.
