Upgrade from Mercury UV Lamps to UV LED Systems:
Compliant, Efficient, and High-Performance
Our eco-friendly UV LED curing technologies help industrial manufacturers meet strict
environmental regulations, improve process
control, and enhance product quality, all while reducing operating costs.
Regulatory Compliance & Environmentally Sustainable
- Mercury-Free Compliance: Replace traditional mercury lamps with UV LED to eliminate mercury pollution at the source and comply with global regulations such as the Minamata Convention.
- Reduced VOC Emissions: Cold-light UV LED minimizes heat-induced solvent evaporation. Combined with water-based UV coatings, it helps manufacturers meet strict VOC limits and avoid fines or production restrictions.
- Safer Working Environment: UV LEDs produce no ozone, improving workplace safety and reducing operational health risks.
Advanced and Efficient
Technology
- Cold Curing for Expanded Applications: Low heat output protects heat-sensitive materials, enabling use in precision applications that UV lamps can't reach, such as electronics, optical films, medical devices, and high-end wood products.
- Precise & Instant Control: Millisecond-level on/off switching allows on-demand curing and fine energy adjustment. It can also achieve precise energy regulation at the milliwatt level through PWM.
- Optimized Workflow & Space: No preheating or cooling required, shortening production cycles; compact design simplifies integration into automated production lines.
Better Curing
Performance
- Stable Light Source & Long Lifespan: Extended lifetime with minimal light decay ensures consistent curing quality from the first piece to full-scale production.
- Material Compatibility & Performance: Concentrated monochromatic light enables efficient curing, lower migration, higher crosslink density, and superior surface properties such as hardness, scratch resistance, and chemical durability.
- Defect Control: Low heat and uniform light distribution minimize surface defects like orange peel, pinholes, and uneven curing.
Lower Total Cost of Ownership with UV LED Curing
0
Mercury
≈0
second
Startup Time
≥15,000
hours
Lifespan
70%-90%
Energy Saving
Related Products for Industrial LED Curing Applications
VF-750 Curing Light for Offset Printing
This UV LED curing light is specifically designed for offset printing with an advanced "focused parallel light" optical design, which can effectively enhance printing efficiency and product quality. It is compatible with over 700 high-intensity sheet-fed printers and 100+ rotary presses, and supports the full range of UVLED, UV, IR, and UVC curing systems, providing comprehensive solutions for the printing industry.
Water-Cooled UVA Curing Light for Optical Fiber Coloring
The water-cooled UV curing system is designed specifically for optical fiber coloring , ensuring consistent optical output and spectrum through efficient heat dissipation for uniform, high-speed curing. With its compact design, long lifespan, and easy maintenance, it delivers a reliable, high-performance curing solution.
330 Air-Cooled UVA Light for Label Printing
This label curing light system is compatible with intermittent, flexographic, and rotary offset printing presses, offering rapid start-up, low maintenance cost, eco-friendly operation, energy-efficient performance, and stable output.
200×30 UVA Curing Light for LCD Panels
This UV LED curing light, specially designed for screen printing, features an effective exposure area of 200 × 30 mm, significantly enhancing curing speed, while its high uniformity supports the high-quality production of LCD panels.
Handheld UV Curing Gun
This UV LED curing light, specially designed for electronic adhesives, is a portable and high-efficiency curing device that significantly accelerates the curing of UV adhesives and coatings.
Core Values of Our Full-LED UV Curing Systems
Industry-Leading Energy Efficiency
With a wall-plug efficiency (WPE) of ≥13.6% and continuous optimization, our LED curing systems deliver lower power consumption and reduced heat generation, enabling energy savings while expanding curing possibilities for heat-sensitive materials.
Fully Customizable Full-Spectrum Output (200–400nm)
We provide UVA/UVB/UVC wavelength customization and flexible spectral ratio design. By matching LED wavelengths precisely to photoinitiator absorption characteristics and material requirements, we ensure efficient, deep, and reliable curing.
Long Lifetime & Stable Optical Output
Our LED light sources offer a lifespan exceeding 20,000 hours with slow degradation and stable light intensity output throughout the lifecycle. Modular, maintenance-free design eliminates the need for lamp, reflector, and filter replacement, reducing downtime and operating costs.
End-to-End Engineering & Customized System Solutions
From optical simulation and system design to sample validation and mass-production delivery, we provide full-process technical support. Backed by an experienced R&D team and a responsive service team, we develop customized curing systems that perform consistently from design through large-scale production.
Case Studies :
System-level UV LED Curing Solutions for Key Industrial Applications

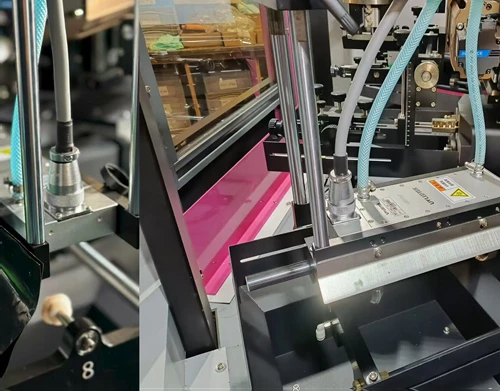

Printing Industry
Applications: Label Printing, Digital Inkjet Printing, Screen Printing, Flexographic Printing, Offset Printing, etc.
We helped leading printing companies achieve a full upgrade with UV LED curing technology. To address challenges such as film deformation and limited printing speed caused by traditional UV processes, we developed a customized intelligent temperature control system that enables efficient curing at low temperatures. This solution increases printing speed by 35% and reduces energy consumption by 72%, achieving a win-win improvement in quality, productivity, and sustainability.
Electronics Manufacturing Industry
Applications: PCB Conformal Coating & Protection Curing, Chip Encapsulation, Underfill & Dispensing Adhesive Curing, etc.
Leveraging advanced UV LED curing technology, we have successfully
supported leading customers in OLED flexible display encapsulation by using
ultra-low-temperature curing to prevent thermal damage and stress-induced warpage,
significantly improving yield.
In Mini LED mass production, our high-power point-source system enables
millisecond-precision curing of chip adhesives, greatly enhancing production
efficiency.
Optical Fiber Manufacturing Industry
Applications: Fiber Coating Curing, Optical Fiber Device
Encapsulation & Bonding, etc.
Our customized UV curing solution has helped optical fiber and cable manufacturers overcome critical process challenges in high-speed fiber drawing and precision coating. It achieved remarkable results, including 70% energy savings and a 20% increase in drawing speed, while establishing a milestone collaboration that sets a new efficiency benchmark in the industry through process innovation.
Lithium Battery Manufacturing Industry
Applications: Electrode Coating Curing, Battery Sealing & Assembly Curing, Insulation Coating Curing, Anti-Counterfeiting & Traceability Mark Printing Curing, etc.
We were the first to adopt high-speed, intelligent in-line UV LED curing
technology, successfully applying high-performance insulation coatings to critical
processes such as battery cell housing sealing, resulting in a dense, uniform, and
highly adhesive next-generation lithium battery protective layer.
This new protective layer achieves tensile and shear strength more than 10 times
higher than conventional blue-film processes, with superior aging and corrosion
resistance, effectively enhancing battery safety and service life.
Your Trusted Partner for Industrial Curing Applications
Contact Our ExpertsA leading solution provider specializing in third-generation semiconductor technology, delivering high-performance UV LED curing solutions for industrial applications.
-
Full-Chain Vertical Integration & Deep Customization
With a fully controlled layout spanning epitaxial wafers, chips, packaging, modules, and complete systems, we can precisely customize key parameters such as wavelength, emission angle, UV dose, and light-field distribution. This enables professional solutions for point, line, and area UV sources, as well as multi-band composite applications. -
High-Performance Solutions Driven by Third-Generation Semiconductor Technology
Leveraging advanced deep-UV and UV LED platforms, we provide curing systems covering the full UV-A/B/C spectrum with high power density, excellent photoelectric conversion efficiency, and low thermal emission. Our solutions are widely used in printing and packaging, fiber coating, 3D printing, electronics manufacturing, and new energy batteries, delivering industrial-grade reliability with a lifespan of up to 15,000 hours at ≥70% output. -
System-Level Engineering Simulation & Reliability Design
Through a closed-loop engineering platform combining optical simulation, thermal management modeling, and mechanical reliability verification, we optimize performance and mitigate risks during product design. This ensures uniform light distribution, efficient heat dissipation, and long-term stability, while reducing customer process validation time and system integration costs. -
Standardized Quality Control & Green Manufacturing
Certified to ISO9001 and ISO14001, we implement full-process quality control from chips to modules. Our products maintain batch consistency while following a green path-mercury-free, low-energy, and low-ozone emission-helping customers achieve both environmental and efficiency goals. -
Expert R&D Team & Agile Support System
Our R&D team, led by master's and PhD-level engineers, specializes in UV technology and cross-industry applications. We offer full-cycle technical services, from spectral matching and curing process optimization to production line integration. Combined with scalable production and flexible delivery, we ensure efficient project implementation and continuous supply for our customers.
Explore More Solutions Across Industries
Biomedicine and Chemical Synthesis
Automotive UV LED Application
Home Appliance/HVAC
Water Disinfection
From Proven Engineering to
Production-Ready Solutions
As a vertically integrated, third-generation semiconductor–based UV LED solution provider, we deliver full-chain support from optical design, thermal management, and data-driven simulation and validation to mass-production readiness.
Backed by extensive real-world applications, verified performance data, and long-term reliability testing, our solutions are trusted by leading brands to reduce development risk and accelerate time to market.
Get a Customized System Proposal
Share details about your application and requirements. Our engineering team will assess technical feasibility and define the optimal solution based on your specific requirements.
