Application |
Model |
Product |
Dimensions |
Mounting Hole Dimensions |
Radiant Flux |
Wavelength Range |
Driving Method |
Electrical Power |
|
Home Appliance -Humidifier/Water Purifier/Dispenser |

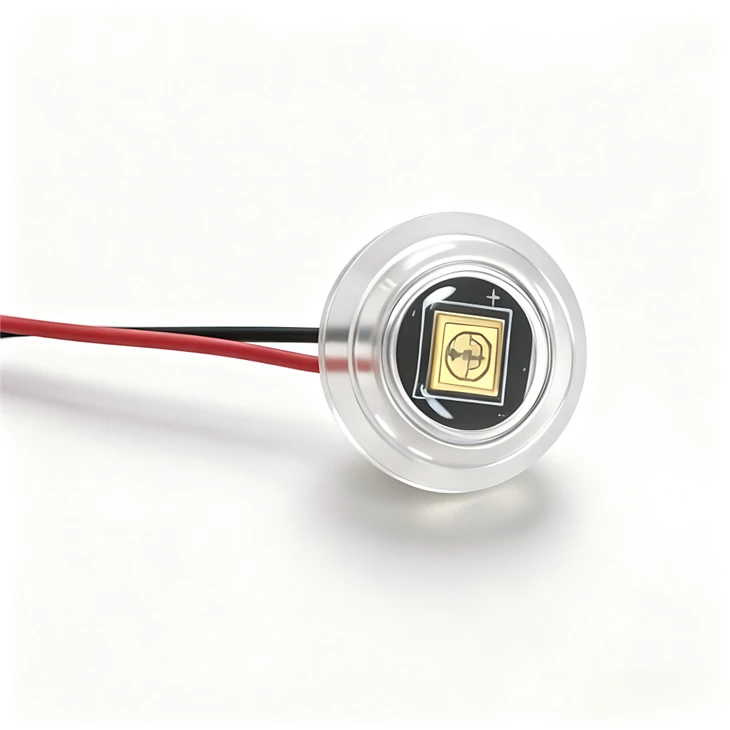

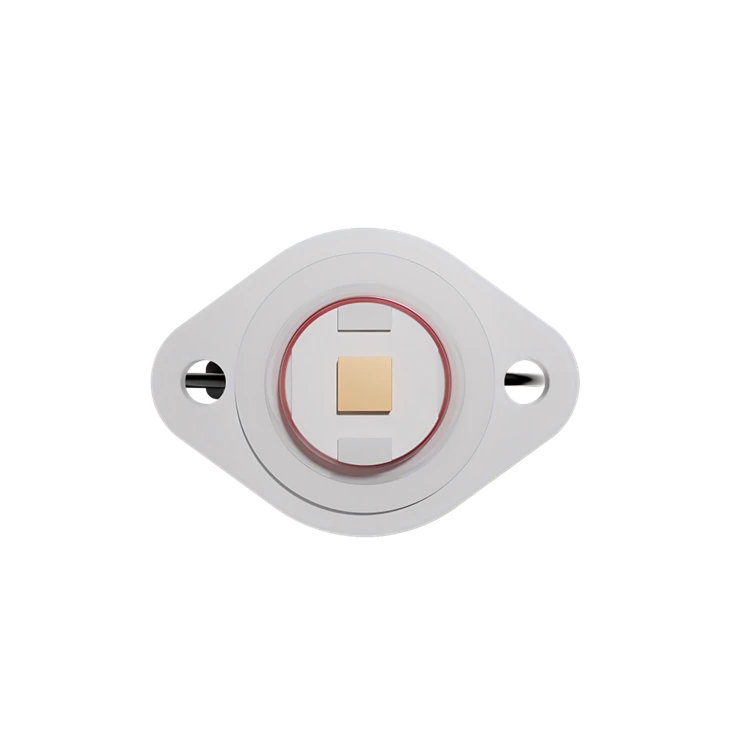

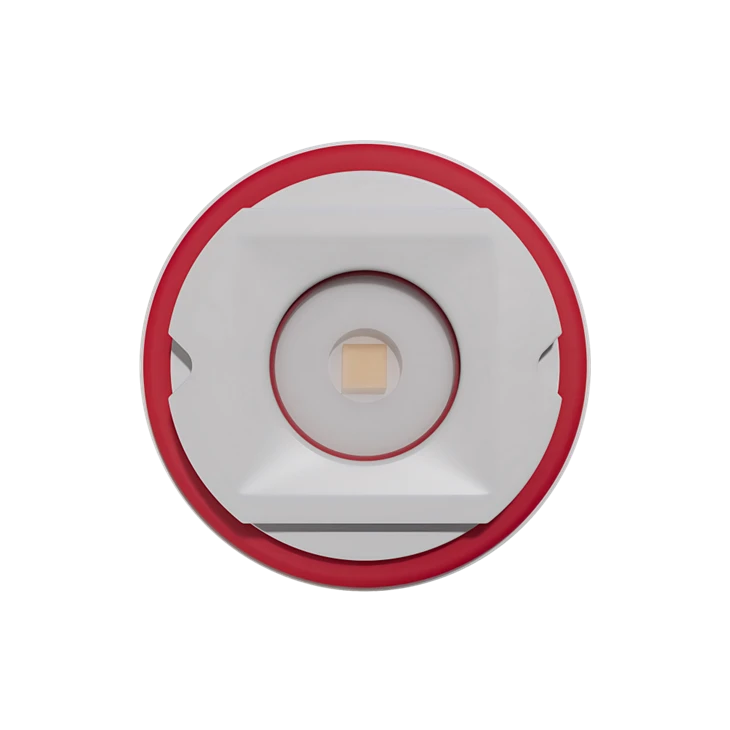

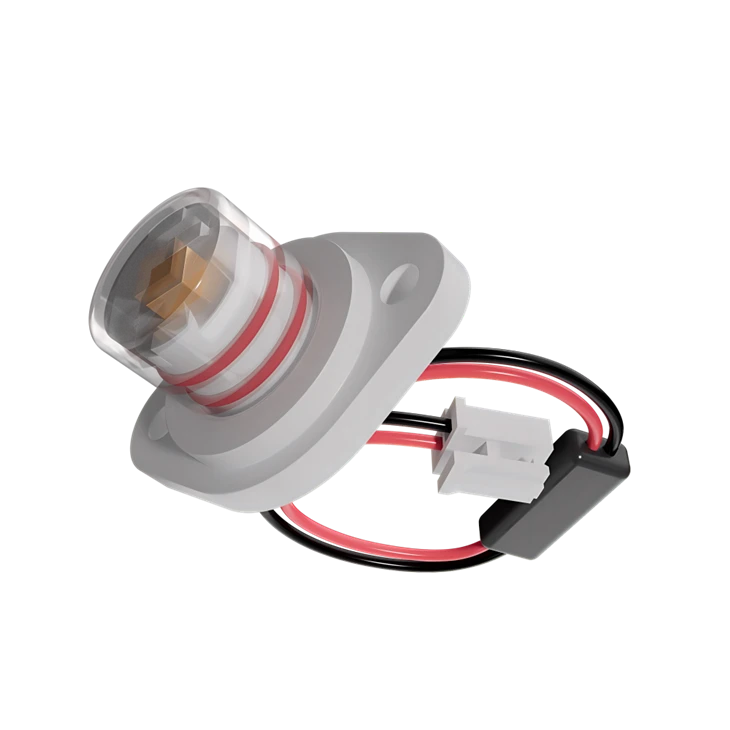

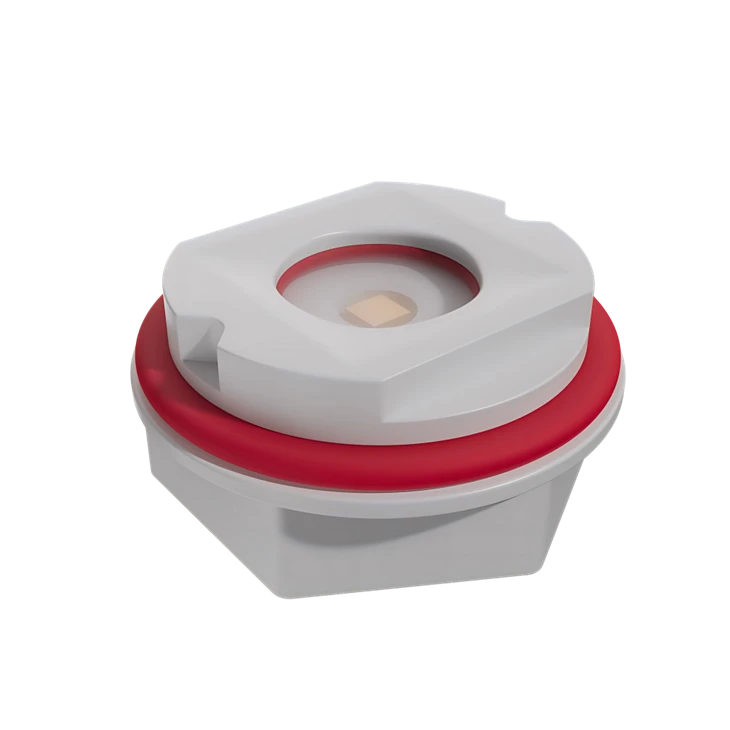

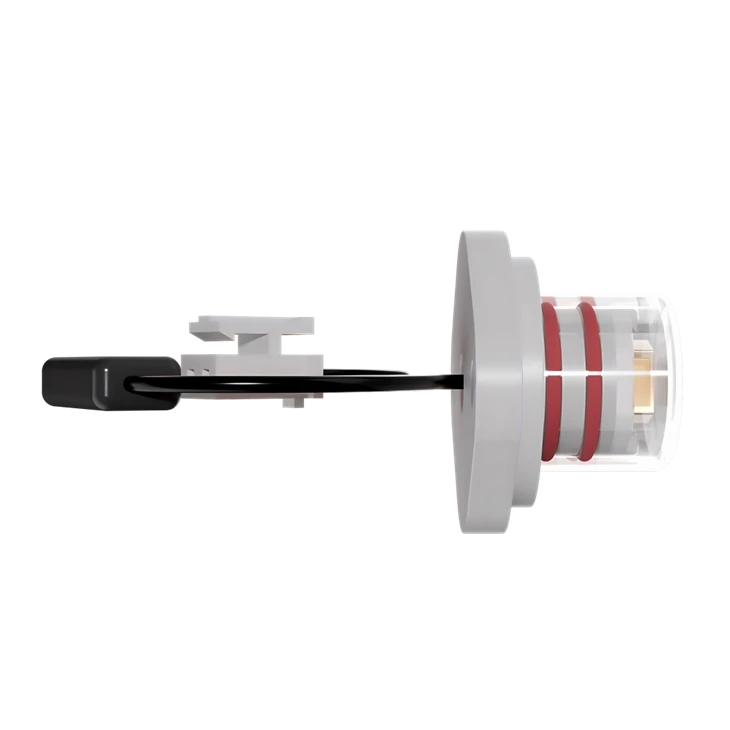

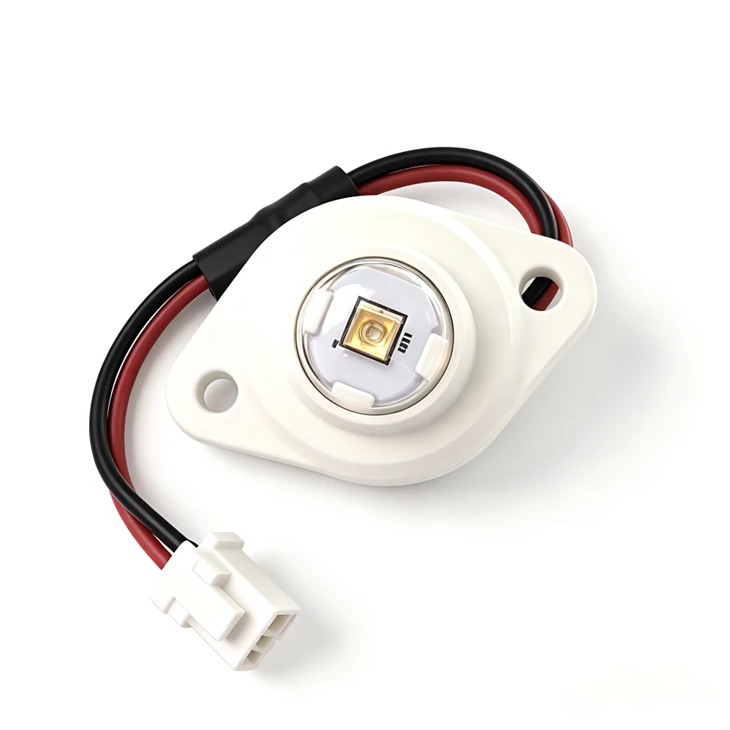

Humidifier/Water Purifier/Dispenser static water sterilization module |
|
φ22mm×13.5mm |
φ13.5mm±0.3mm |
≥20mW |
270nm~280nm |
Constant Voltage Drive,DC12V |
≤0.5W |
|
Home Appliance -Pet Water Dispenser |
Pet Water Dispenser static water sterilization module |
|
φ11.4mm×9.6mm |
φ10mm±0.3mm |
6mW~8mW |
260nm~280nm |
Constant Current Drive,40mA |
≤0.28W |
|
Home Appliance -Humidifier/Water Purifier/Dispenser |
Humidifier/Water Purifier/Dispenser static water sterilization module |
|
φ24mm×15mm |
φ14.5mm±0.3mm |
≥10mW |
270nm~280nm |
Constant Voltage Drive,DC12V |
≤1W |
|
Home Appliance -Humidifier/Water Purifier/Dispenser |
Humidifier/Water Purifier/Dispenser static water sterilization module |
|
φ37mm×18mm |
φ31mm±0.3mm |
≥10mW |
270nm~280nm |
Constant Voltage Drive,DC24V |
≤1W |
|
Home Appliance -Humidifier/Water Purifier/Dispenser |
Humidifier/Water Purifier/Dispenser static water sterilization module |
|
18.2mm×30.5mm×12mm |
φ13mm±0.3mm |
≥6mW |
270nm~280nm |
Constant Current Drive,60mA |
≤0.5W |
|
Home Appliance -Humidifier/Water Purifier/Dispenser |
Humidifier/Water Purifier/Dispenser static water sterilization module |
|
22mm×30.5mm×14.5mm |
φ13mm±0.3mm |
≥8mW |
270nm~280nm |
Constant Current Drive,40mA |
≤0.5W |
|
Home Appliance -Humidifier/Water Purifier/Dispenser |
Humidifier/Water Purifier/Dispenser static water sterilization module |
|
18mm×30.5mm×17.45mm |
φ13mm±0.3mm |
6mW~8mW |
270nm~280nm |
Constant Voltage Drive,DC12V |
≤0.5W |
|
White Goods |

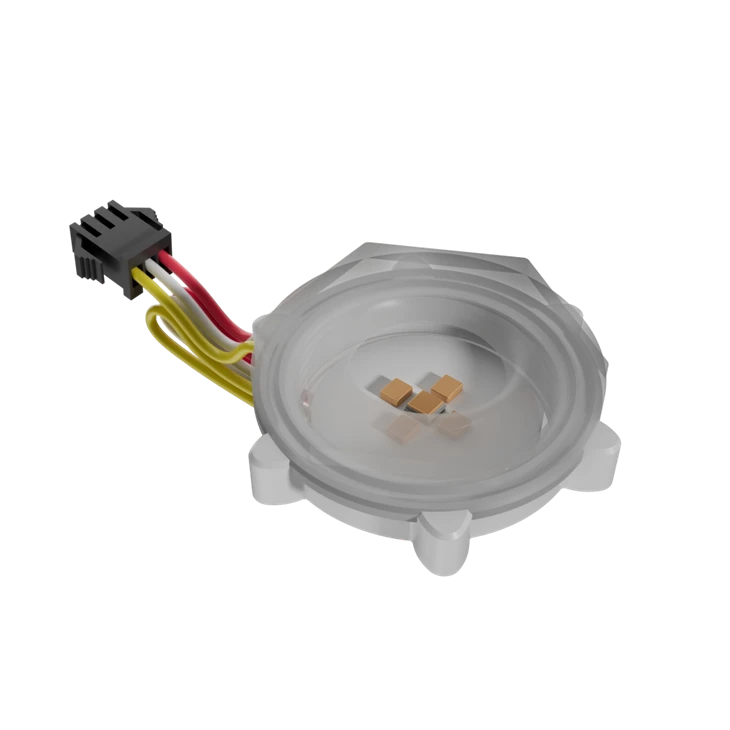

Dishwasher UV sterilization module |
|
46mm×46mm×16mm |
φ40mm±0.3mm |
6mW~8mW |
270nm~280nm |
Constant Voltage Drive,DC12V |
≤0.7W |
Air Conditioning UVC Sterilization Module (MD001)
UVLEDTEK Air Conditioning UVC Sterilization Module (MD001) is used in HVAC systems, household air conditioners and air purification appliances to realize real-time air disinfection. It can effectively reduce airborne bacteria, viruses and allergens to improve indoor air quality. It features ultra-compact size for built-in installation, low power consumption, high disinfection efficiency, long service life and maintenance-free operation.

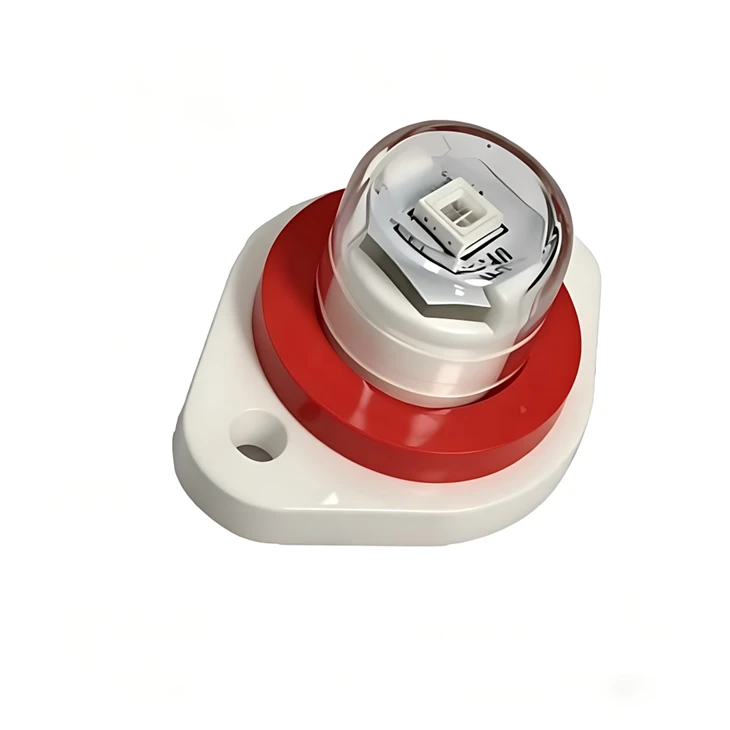

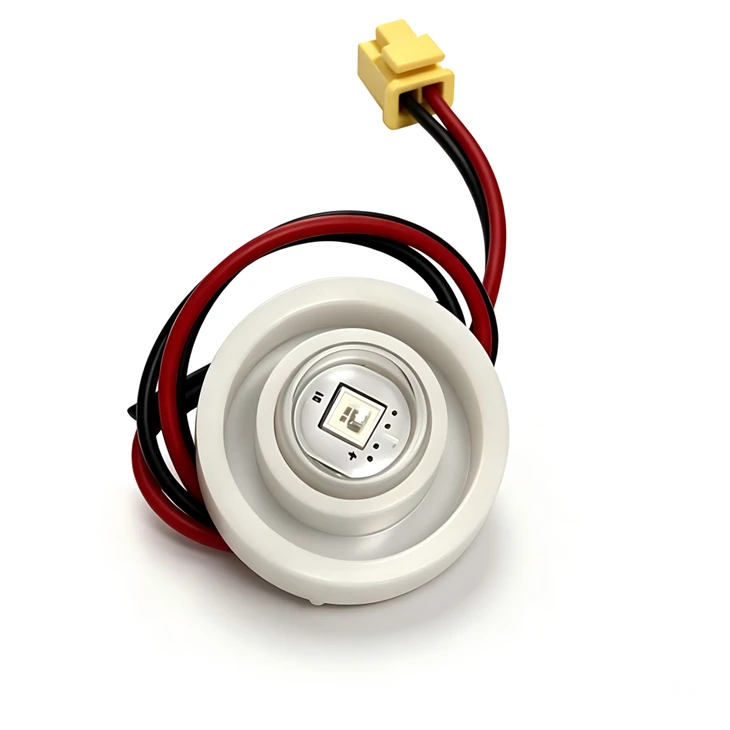

UVLEDTEK static water UVC sterilization modules are compact tank-mount germicidal LED units designed for stationary water disinfection inside humidifiers, water dispensers, pet fountains and dishwashers. Adopting 270–280nm UVC chips with low power consumption, these modular parts support DC12V/24V constant voltage & constant current drive, with customizable dimension, mounting aperture and wiring harness. As a Chinese professional manufacturer, we supply wholesale OEM & ODM static water disinfection components with high sterilization efficiency, and also provide matching HVAC air UV sterilization modules as extended solutions.
