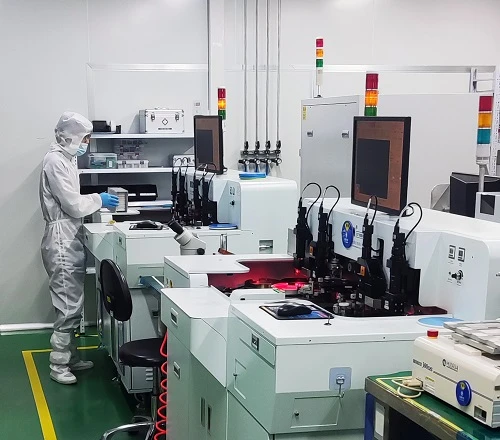

UVC LED Manufacturer with In-House Chip & Packaging Capabilities
UVLTEK is a UVC LED manufacturer with in-house UVC chip development and UVC LED packaging capabilities. Our germicidal UVC LED chips cover a wavelength range of 260–280nm, offering scalable light power from 6mW to 1000mW, and selectable viewing angles of 30°, 60°, and 120°. We offer compact 3.5×3.5mm and high-power 6.5×6.5mm package designs, plus customizable UVC+UVA dual-chip configurations to meet different equipment design and integration requirements.
For OEM manufacturers and system integrators, we provide product selection support, customized UVC LED configurations, and bulk supply to meet specific application and production needs.
UVC LED Product Range
For accurate model selection based on your terminal products and technical specifications, refer
to the complete electrical, optical and dimensional parameters in the table below.
|
Part NO. |
Product Photograph |
Device Dimension |
Peak Wavelength (WLP) |
Size (mm) |
Forward Current (IF) |
Forward Voltage (VF) |
Optical Power (Po) |
Radiation Angle (2θ1/2) |
|
UVC LED Y35ANBQ |
|
|
260nm~270nm |
3.5×3.5 |
160mA |
5V~7V |
65mW~85mW |
120° |
|
UVC LED Y35AMBQ |
|
|
260nm~280nm |
3.5×3.5 |
200mA |
5V~6.V |
120mW~130mW |
120° |
|
UVC LED LS2MQBB |
|
|
260nm~280nm |
3.5×3.5 |
40mA |
5V~7V |
6mW~15mW |
120° |
|
UVC LED LS2AQBB |
|
|
260nm~280nm |
3.5×3.5 |
100mA |
5V~7V |
15mW~50mW |
120° |
|
UVC LED LS4AQHB |
|
|
260nm~280nm |
3.5×3.5 |
350mA |
5V~7V |
50mW~175mW |
120° |
|
UVC LED LD2MQBB |
|
|
260nm~280nm 395nm~405nm |
3.5×3.5 |
40mA@UVC |
5V~7V@UVC |
6mW~15mW@UVC |
120° |
|
UVC LED LS2AHAA |
|
|
260nm~280nm |
3.5×3.5 |
100mA |
5V~7V |
15mW~50mW |
60° |
|
UVC LED LS2AHAC |
|
|
260nm~280nm |
3.5×3.5 |
100mA |
5V~7V |
15mW~50mW |
30° |
|
UVC LED LP2AQHB |
|
|
260nm~280nm |
3.5×3.5 |
200mA |
5V~7V |
40mW~90mW |
120° |
|
UVC LED LM2IQUB |
|
|
260nm~280nm |
6.5×6.5 |
600mA |
15V~21V |
650mW~1000mW |
120° |
Selecting UVC LEDs for Different Applications
UVLTEK UVC LEDs support diverse applications, from disinfection and sterilization to optical sensing
and bioanalysis. Explore key selection considerations for different equipment requirements.

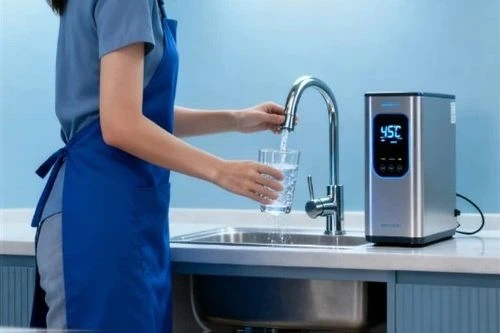

Water Purification & Disinfection
Our UVC LEDs provide germicidal light sources for industrial water treatment systems, drinking water dispensers, and compact water purifiers, with different optical power options to accommodate various water flow and disinfection requirements.
Key Selection Factors
Radiant Power · UV Dose · Flow Rate · Thermal Management
Air Purification & HVAC
UVLTEK UVC LEDs can be integrated into commercial air purifiers, HVAC disinfection modules, and ventilation systems, providing UV irradiation for air disinfection under different airflow and operating conditions.
Key Selection Factors
Airflow Rate · Exposure Time · Optical Coverage · Operating Lifetime

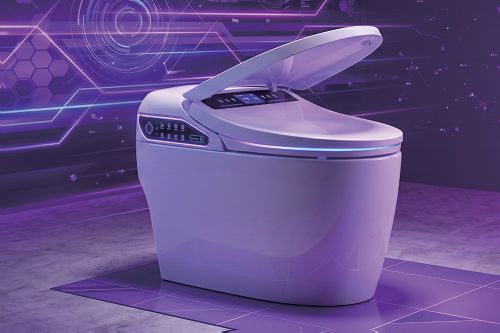

Home Appliance Disinfection
Our compact UVC LED packages enable manufacturers to integrate disinfection functions into refrigerators, dishwashers, smart toilets, and other household appliances without requiring large installation spaces.
Key Selection Factors
Package Size · Power Consumption · Installation Space · Operating Cycles

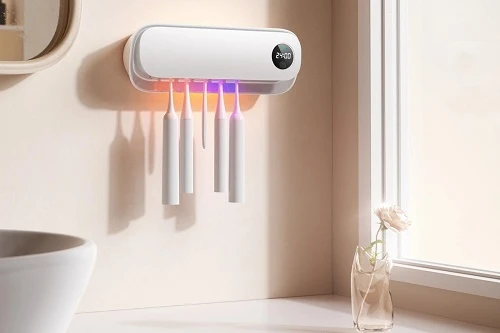

Portable & Surface Disinfection
UVLTEK offers compact UVC LED light sources for portable sanitizers and enclosed surface disinfection devices, supporting different irradiation distances, coverage requirements, and power configurations.
Key Selection Factors
Irradiation Distance · Surface Coverage · UV Dose · Exposure Safety
Need Help Selecting the Right UVC LED?
UVC LEDs Customization & Engineering Support
UVLTEK provides customized UV-C LED components and engineering support for OEM manufacturers and system integrators.
Custom UVC LED Configurations
We evaluate application-specific requirements for wavelength, radiant power, chip combinations, and package configurations to support customized UVC LED designs.
Optical & Thermal Engineering Support
We support optical layout, UV irradiation analysis, and thermal design to optimize UVC LED integration, light distribution, heat dissipation, and operating stability.
PCB & Module Development
We support the integration of UVC LED components into customized PCBs and modules, taking into account circuit design, thermal management, and equipment compatibility.
Prototyping & Performance Validation
We collaborate with OEM customers on sample evaluation and performance verification before moving toward volume production.
Discuss Your Custom UVC LED Requirements
FAQ
Q: How do I determine the UVC LED power required for my disinfection equipment?
A: The required UVC LED radiant power depends on the target UV dose, irradiation distance, exposure time, optical distribution, and application conditions. For water and air disinfection, flow rate and system geometry are also important. Our engineering team can help assess suitable UVC LED configurations based on your equipment requirements.
Q: How do you ensure consistency between UVC LED production batches?
A: UVLTEK applies optical and electrical testing throughout chip fabrication and UVC LED packaging. We evaluate key performance parameters, including wavelength, radiant output, and forward voltage, to support consistent device performance. Product specifications and available inspection records can be discussed according to your procurement requirements.
Q: Can I request UVC LED datasheets and samples for evaluation?
A: You can contact UVLTEK to request available product datasheets and discuss samples for engineering evaluation. Please provide your preferred model, application, and key technical requirements so our team can help identify suitable products for testing.
Q: What information should I provide when requesting a UVC LED quotation?
A: Please share your preferred UVC LED model or required wavelength, radiant power, package size, estimated order quantity, and intended application. If available, include your target specifications or existing datasheet to help our team evaluate your requirements and prepare an appropriate quotation.
Q: What are your MOQ and lead times for bulk UVC LED orders?
A: MOQ and production lead times may vary depending on the UVC LED model, order volume, and customization requirements. Contact our sales team with your required specifications and estimated quantity to confirm sampling arrangements, bulk pricing, and delivery schedules.
