Advanced UV Disinfection for Industrial & Municipal Water Treatment
Industrial and municipal water systems need reliable disinfection that can operate continuously under high-flow conditions while maintaining stable performance and manageable operating costs.
Compared to traditional chemical-based methods such as chlorine or ozone disinfection, UV-C LEDs offer significant advantages.
Chemical-Free Physical Disinfection
Secondary Pollution Prevention
Fast Microbial Inactivation
Broad-Spectrum Disinfection
Chlorine Compound Reduction
Safer Chemical-Free Operation
Deeply cultivating the field of water treatment
Accurate sterilization ensures water safety
UVLEDTEK develops UVC LED disinfection systems to help project owners and system integrators achieve reliable microbial control without chemical additives or mercury lamps.
Ultraviolet Radiation Inactivates Over 99.999% of Bacteria and Viruses.
Wide Application
Suitable for all places that require water quality safety.
UV-C LED Light Source
4th-gen environmentally friendly mercury-free, UV-C LED light source is safe and reliable.
Energy-Saving Eco Design
Intelligent light power control, significantly reduces carbon emissions.
Note: This bactericidal rate is based on Escherichia coli, Giardia, and Cryptosporidium as examples
Core Engineering Advantages Behind Reliable Disinfection Performance
Excellence in Product Design, Comprehensively Delivers High Performance
Light-Field Design Ensures Comprehensive Sterilization Without Dead Zones
Through advanced geometric optical design combined with multi-medium penetration simulation and multiphysics numerical modeling techniques, ultraviolet light is precisely delivered throughout the whole reaction chamber, so as to ensure that every corner of the water body receives adequate UV exposure, achieving comprehensive sterilization without blind spots.
Optimized Flow Field Design to Improve Flow Dynamics and Enhance Performance
The maximum flow velocity significantly impacts sterilization efficacy. From a fluid mechanics perspective, high-speed flowing water may result in insufficient dwell time for microorganisms within the UV irradiation zone, compromising their exposure to ultraviolet radiation and thereby reducing sterilization effectiveness. UVLEDTEK optimized the inner flow field with rotating flow, which ensures more uniform UV dose distribution throughout the water and enhances sterilization performance.
A Simple and Clear User Interface for Easy Operation
The UV-C LED disinfection system features a simple and intuitive human-machine interface. Operators can easily monitor key operational parameters, such as current dosage, light intensity, and flow rate, through this interface. Additionally, the menus provide convenient access to device logs and alarm information. This user-friendly design reduces training requirements, enhances maintenance efficiency, and enables more efficient equipment management.
RED-CFD Coupled Simulation Ensures Precise Quantification and Reliable Operation
It adopts the internationally leading UV-C LED reactor design, RED-CFD. The light source does not require a housing immersed in water, resulting in more efficient fluid dynamics and facilitating better coupling between the light and flow fields, while UV light efficiency is further enhanced by the high-reflection design. Additionally, this design minimizes head loss and installation space. Through RED-CFD coupled simulation analysis, core parameters such as ultraviolet disinfection dose, light source configuration, water flow rate, and UVT can be precisely quantified, ensuring superior performance and reliable operation to deliver a stable and efficient disinfection effect.
Modular Design Simplifies Maintenance Operations
The UV-C LED ultraviolet disinfection system adopts a modular design, with the light source and reaction chamber operating independently. This configuration allows rapid module replacement when failures occur without disrupting the water supply, ensuring continuous and stable operation. The system enables coordinated adjustment with flow rate, residual chlorine levels, and UVT parameters for precise adaptation to various working conditions.
UVLEDTEK UVC LED Water Disinfection Product Series
Explore UVLEDTEK's UVC LED water disinfection systems designed for different
flow capacities, installation conditions, and water safety requirements.

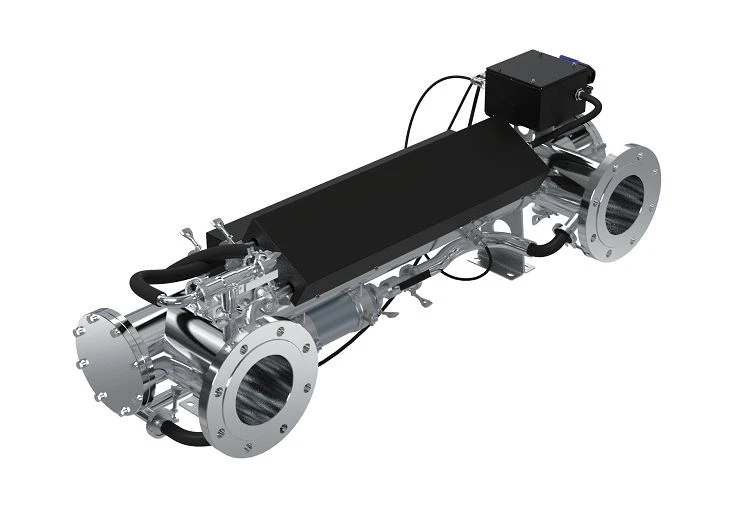

Designed for secondary water supply, centralized water supply, municipal water safety, and high-flow industrial water disinfection projects.
Key Features
- High-flow capacity options from 10T/h to 120T/h
- Modular light source and reactor structure
- Intelligent monitoring for dose, light intensity, and flow rate
- Optimized reactor design for stable UV exposure
- Suitable for continuous water supply operation

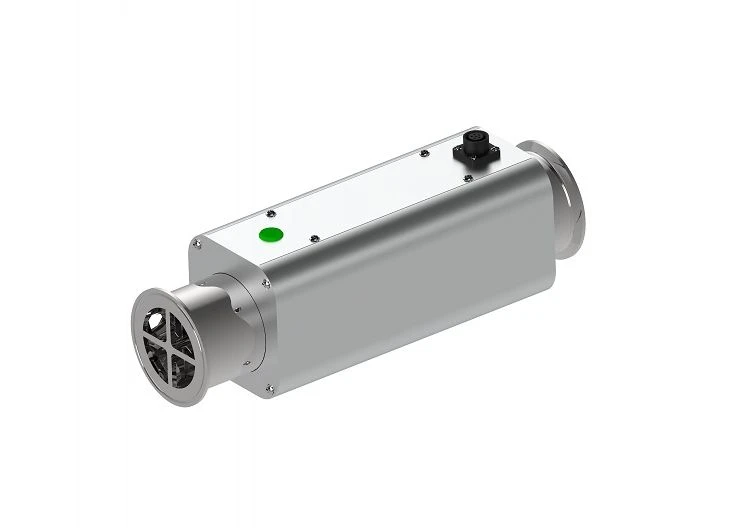

Designed for direct drinking water systems that require compact installation, stable disinfection, and safe microbial control without chemical additives.
Key Features
- Compact structure for direct drinking water systems
- 3T/h and 5T/h flow capacity options
- Mercury-free UVC LED light source
- Fast start and stable disinfection performance
- Suitable for public drinking water and smaller centralized systems
FAQ
Q: What is a UVC LED water disinfection system?
A: A UVC LED water disinfection system uses ultraviolet-C light to inactivate microorganisms in water without adding chemical disinfectants. Compared with traditional mercury UV lamps, UVC LED systems offer mercury-free operation, instant start, compact design, and easier intelligent control.
Q: How is UVC LED disinfection used in industrial and municipal water treatment?
A: UVC LED disinfection can be used in municipal water supply, secondary water supply, direct drinking water, industrial process water, wastewater treatment, and other water safety applications. The system should be selected based on flow rate, UVT, target UV dose, pipe size, and installation conditions.
Q: What are the advantages of UVC LED water disinfection compared with chlorine or ozone?
A: UVC LED disinfection is a physical disinfection method that does not require chemical dosing. It helps reduce chemical-handling risks, avoids chemical residues and certain disinfection by-products, and provides fast microbial inactivation under a validated UV dose.
Q: Can UVC LED systems replace conventional mercury UV lamps?
A: Yes, UVC LED systems can be used as a mercury-free alternative to conventional UV lamp systems in suitable applications. They start instantly, do not require warm-up time, and can be integrated with intelligent control systems for more flexible operation.
Q: What flow capacities can UVLEDTEK water disinfection systems support?
A: UVLEDTEK provides different UVC LED water disinfection systems for project requirements. The secondary water supply series covers high-flow options from 10T/h to 120T/h, while the direct drinking water series includes 3T/h and 5T/h options.
Q: What information is needed to recommend the right system model?
A: To recommend a suitable system configuration, we usually need the project application, flow rate, UVT, pipe size, water temperature, target UV dose or microbial control requirement, installation space, and control or monitoring requirements.
Q: How does UVLEDTEK improve UV dose stability in flowing water?
A: UVLEDTEK improves dose stability through optimized reactor design, optical field distribution, flow-field design, and RED-CFD simulation support. These engineering methods help improve UV exposure and system matching under real operating conditions.
Q: Can UVLEDTEK customize systems for different projects?
A: Yes. UVLEDTEK can support system configuration based on flow capacity, water quality, installation space, pipe layout, control requirements, and application scenario.
Q: How can we start a water disinfection project with UVLEDTEK?
A: You can submit your project parameters, such as flow rate, UVT, pipe size, application type, and installation conditions. UVLEDTEK's engineering team will help evaluate the requirements and recommend a suitable UVC LED disinfection system configuration.
Looking for a Project-Based Water Disinfection Solution?
Where UVLEDTEK Water Disinfection Systems Are Applied
UVLEDTEK UVC LED water disinfection systems can be configured for different water supply and process
water applications, helping project owners, system integrators, and equipment manufacturers
improve microbial control without chemical additives or mercury lamps.
Direct Drinking Water Systems
Secondary Water Supply
Wastewater Treatment
Municipal Water Plants
Plumbing & Sanitary Systems
Marine & Ocean-Going Vessels
Swimming Pools, Spas & Aquariums
Circulating Water for Power & Chemical Plants
Electronics & Semiconductors
Pharmaceutical Water Systems
Food & Beverage Processing
Aquaculture
