LS2MQBB

Data Download

Product characteristics

Product features: high reliability, long lifespan, environmentally friendly and energy-saving, 120 ° light emission angle; Application areas: sterilization and disinfection, medical phototherapy, optical sensors, biological analysis/detection

Shipment

Over 100KK

Dedicated to

Home appliance sterilization scene

lens

sapphire

Basic parameters

wavelength 260~280 nm

Optical power 6~15mW

drive current 40 mA

working voltage 5~7 V

Light output angle 120°

Substrate material Aluminum nitride

Lens Material sapphire

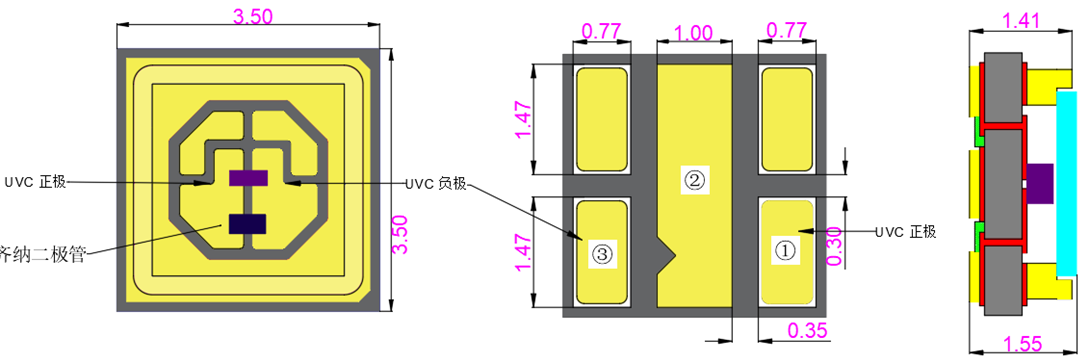

structure size

parameter

parameter	Test conditions	symbol	numerical value			Grading	unit
parameter	Test conditions	symbol	minimum value	Typical values	Maximum value	Grading	unit
UVCpeak wavelength	I_f=40 mA	WLP	260		280	10	nm
Half wave width	I_f=40 mA	Δλ	7		13	/	nm
Optical power	I_f=40 mA	P_o	6		15	/	mW
UVCworking voltage	I_f=40 mA	V_f	5		7	0. 1	V
viewing angle	I_f=40 mA	2θ1/2	110	120	130	/	Deg
Reverse leakage	V_r=5 V	I_r	0		1	/	μA
thermal resistance	I_f=40 mA	Rth (j-s)		≤20			℃/W

Extreme conditions

parameter	symbol	numerical value	unit
power consumption	P_d	560	mW
forward current	I_f	80	mA
forward voltage	V_f	5~7	V
operation temperature	T_opr	-30~85	℃
storage temperature	T_stg	-40~100	℃
Junction temperature	T_j	≤110	℃
Static electricity (human body mode)	ESD	2000	V

Reliability project

Test project	Relevant standards	Test conditions	Test Cycle	Failure Criteria	Number of failures
Room temperature aging	JEDEC JESD22 A108. C	Ta=25 ℃, I_f=40 mA Rthja=22 ℃/W	1000 hour	ΔP_o' 15% ΔV_F' 10%	0/10
Thermal Shock	JEDEC JESD22-A104	-40 ℃arrive100 ℃Temperature changes, 30 mina cycle	300order		0/10
antistatic	ANSI/ESDA/ JEDEC JS-001	HBM ,2 KV,1. 5 kΩ,100 pF,3 pulses			0/50
vibrate	JEDEC JESD22-B110	200 m/s², 20 Hz , x. y. z Three directions	24hour		0/10
low temperature storage	EIAJED4701/200(202)	Ta=-40 ℃	1000hour		0/10
high temperature storage	EIAJED4701/200(201)	Ta=100 ℃	1000hour		0/10
Anti reflux	EIAJED4701/300(304)	Peak≤260 ℃, 10Temperature zone reflux	1order		0/100
