LP2AQHB

Data Download

Product characteristics

Product features: high reliability, long lifespan, environmentally friendly and energy-saving, 120 ° light emission angle; Application areas: sterilization and disinfection, medical phototherapy, optical sensors, biological analysis/detection

Optical power
40~70 mW
wavelength
260~280 nm
viewing angle
110°~130°
Product images
Product images
thumbnail
thumbnail

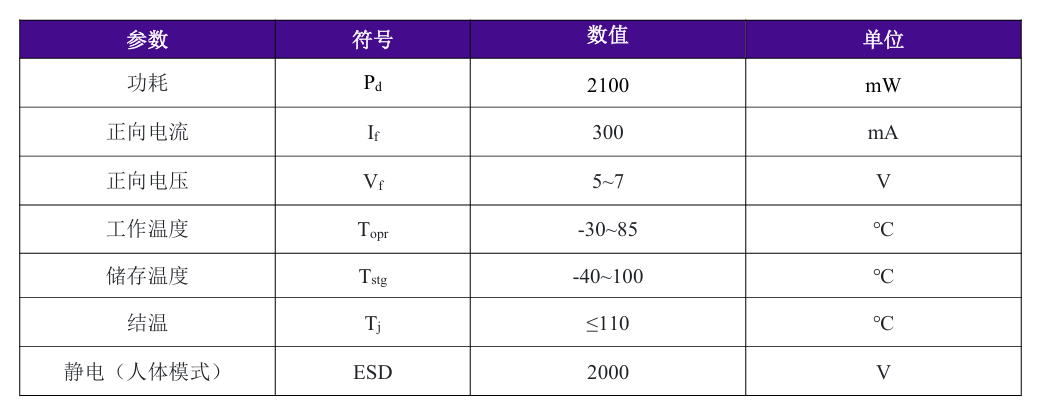

Basic parameters

Optical power 40~70 mW
drive current 200 mA
wavelength 260~280 nm
Light output angle 120°
working voltage 5~7 V

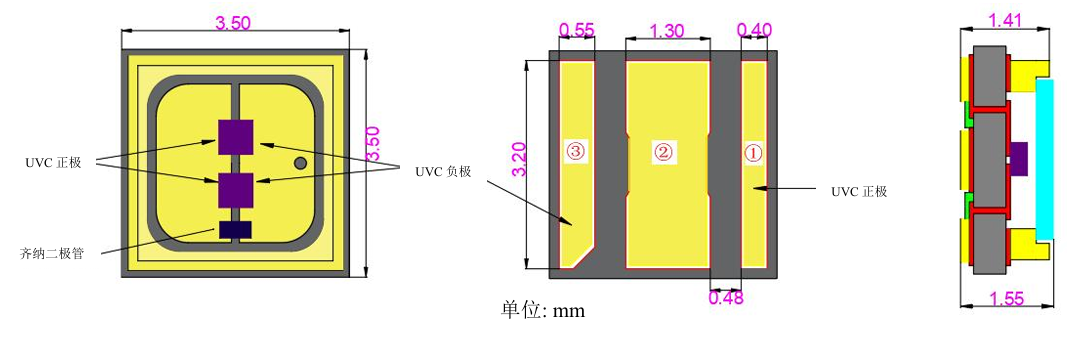

structure size

Data Download

file name category date file type file size
2025 Lamp Bead RoHS Testing Report - Chinese Version
certificate 2025-07-21 PDF Loading in progress download
LP2AQHB Product Specification
SPECIFICATION 2025-07-16 PDF Loading in progress download
