LM218QQA
Product characteristics
Product features: high reliability, long service life, environmental protection and energy saving, ultra-high light power, efficient sterilization with concentrated light; Application areas: sterilization and disinfection, medical phototherapy, optical sensors, biological analysis/detection
Optical power
400~600 mW
wavelength
260~280 nm
viewing angle
50°~70°

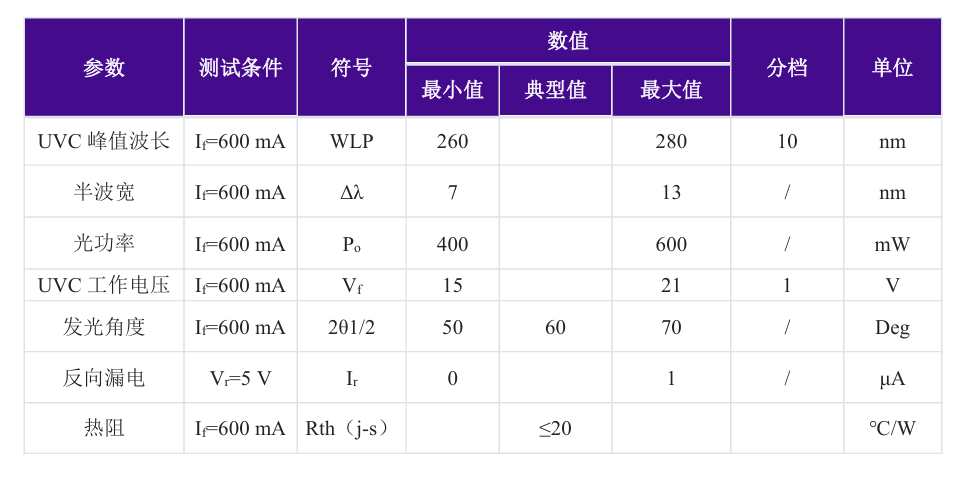

Basic parameters
Optical power
400~600 mW
drive current
600 mA
wavelength
260~280 nm
Light output angle
60°
working voltage
15~21 V

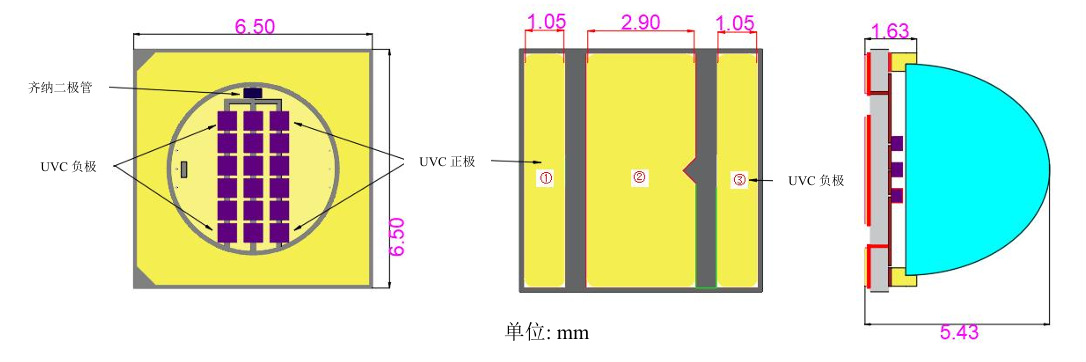

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
LM218QQA Product Specification
|
SPECIFICATION | 2025-07-15 | Loading in progress | download |
