LP2AHAC
Product characteristics
Product features: high reliability, long lifespan, environmentally friendly and energy-saving, 30 ° light emission angle; Application areas: sterilization and disinfection, medical phototherapy, optical sensors, biological analysis/detection
Optical power
40~70 mW
wavelength
260~280 nm
viewing angle
20°~40°

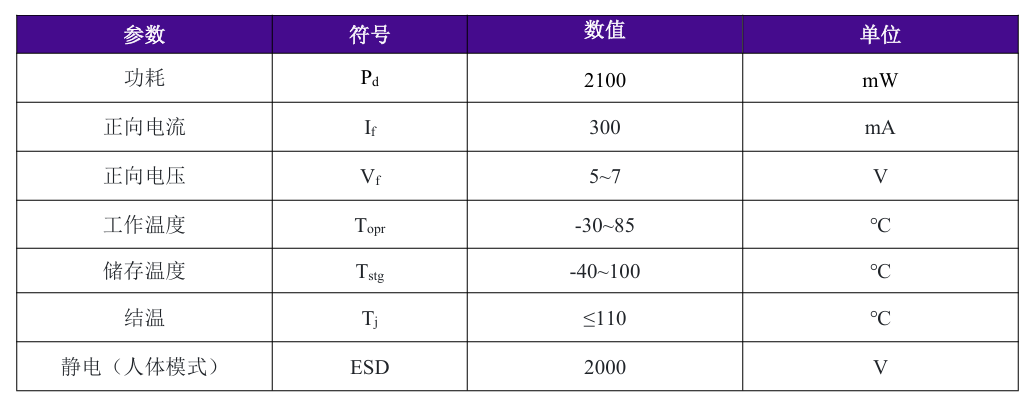

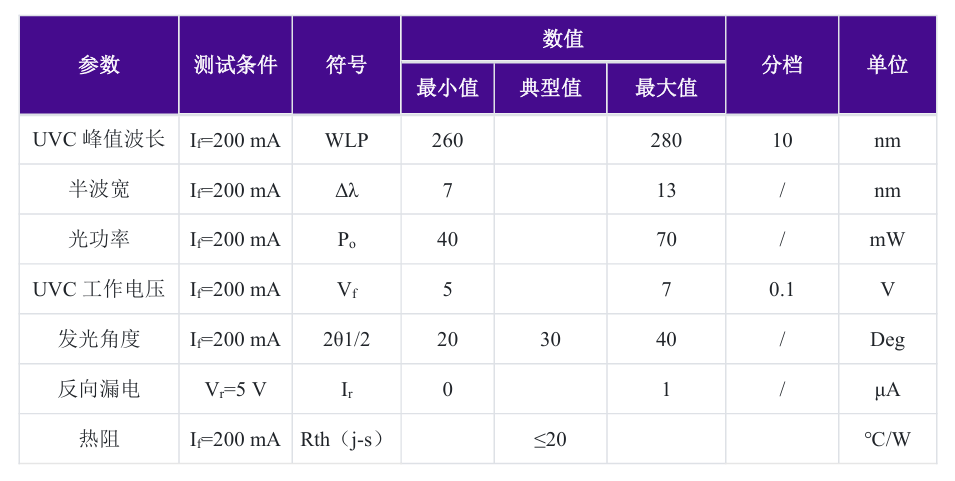

Basic parameters
Optical power
40~70 mW
drive current
200 mA
wavelength
260~280 nm
Light output angle
30°
working voltage
5~7 V

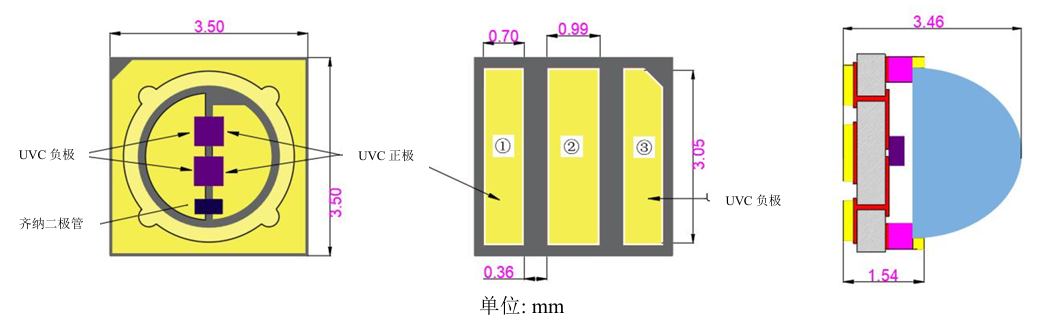

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
LP2AHAC Product Specification
|
SPECIFICATION | 2025-07-16 | Loading in progress | download |
