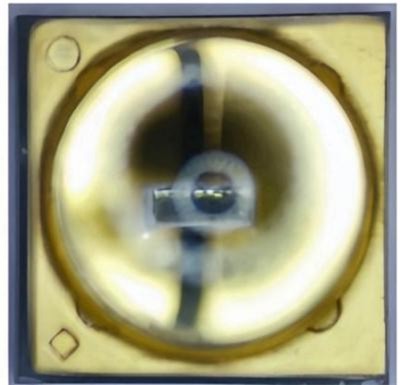

LD2AHAA

Data Download

wavelength

260~280 nm

Optical power

15~50 mW

working voltage

5~7 V

Light output angle

60°

Basic parameters

wavelength 260~280 nm

Optical power 15~50 mW

working voltage 5~7 V

Light output angle 60°

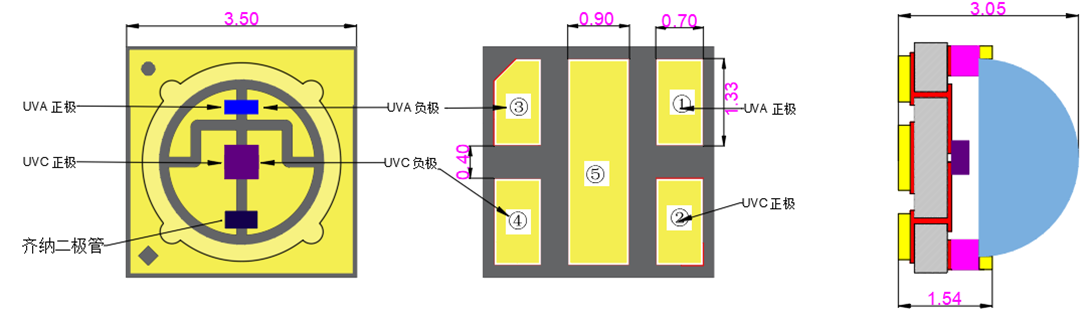

Package Size 3535

Lamp bead height 3. 05 mm

Substrate material Aluminum nitride

drive current 100 mA

UVA photoelectric parameters

Test project	Relevant standards	Test conditions	Test Cycle	Failure Criteria	Number of failures
Room temperature aging	JEDEC JESD22 A108. C	Ta=25 ℃, I_f=100 mA Rthja=22 ℃/W	1000 hour	ΔP_o' 15% ΔV_F' 10%	0/10
Thermal Shock	JEDEC JESD22-A104	-40 ℃arrive100 ℃Temperature changes, 30 mina cycle	300order		0/10
antistatic	ANSI/ESDA/ JEDEC JS-001	HBM ,2 KV,1. 5 kΩ,100 pF,3 pulses			0/50
vibrate	JEDEC JESD22-B110	200 m/s², 20 Hz , x. y. z Three directions	24hour		0/10
low temperature storage	EIAJED4701/200(202)	Ta=-40 ℃	1000hour		0/10
high temperature storage	EIAJED4701/200(201)	Ta=100 ℃	1000hour		0/10
Anti reflux	EIAJED4701/300(304)	Peak≤260 ℃, 10Temperature zone reflux	1order		0/100

file name	category	date	file type	file size
LD2AHAA Product Specification	SPECIFICATION	2025-07-05	PDF	Loading in progress	download
