LM24QMC
Product characteristics
Product features: high reliability, long service life, environmental protection and energy saving, ultra-high light power, efficient sterilization with concentrated light; Application areas: sterilization and disinfection, medical phototherapy, optical sensors, biological analysis/detection
Optical power
70~150 mW
wavelength
260~280 nm
viewing angle
20°~40°

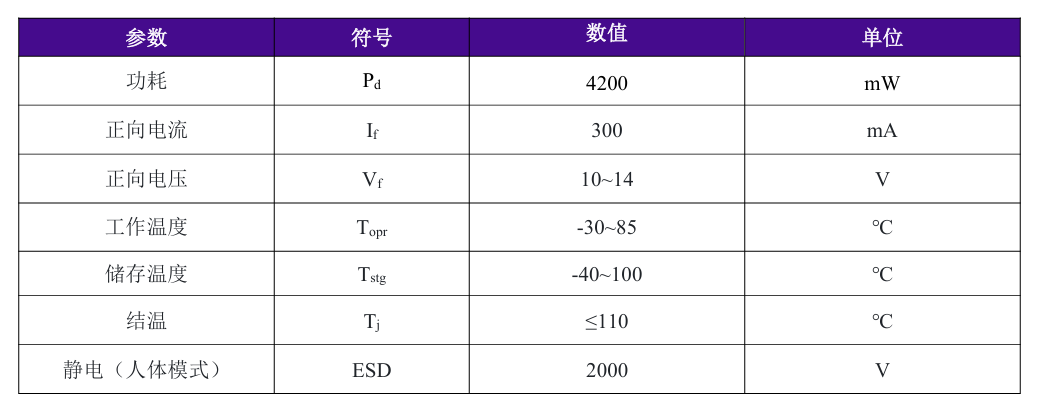

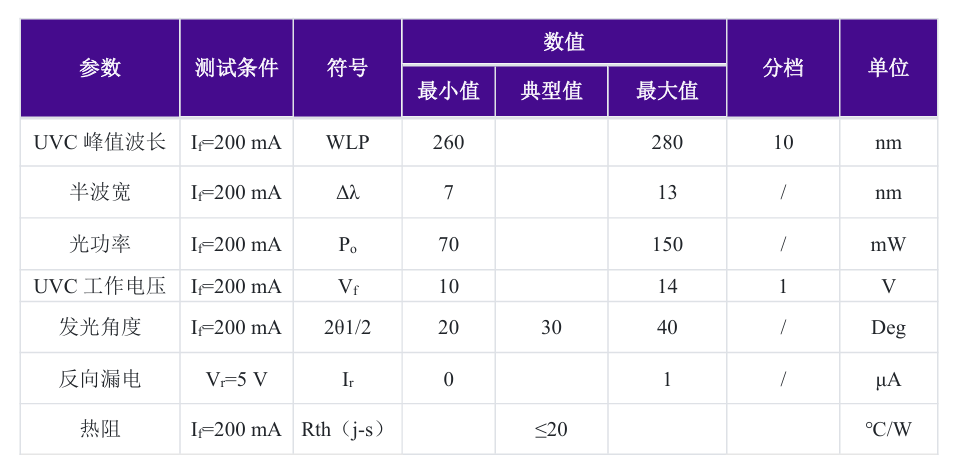

Basic parameters
Optical power
70~150 mW
drive current
200 mA
wavelength
260~280 nm
Light output angle
30°
working voltage
10~14 V

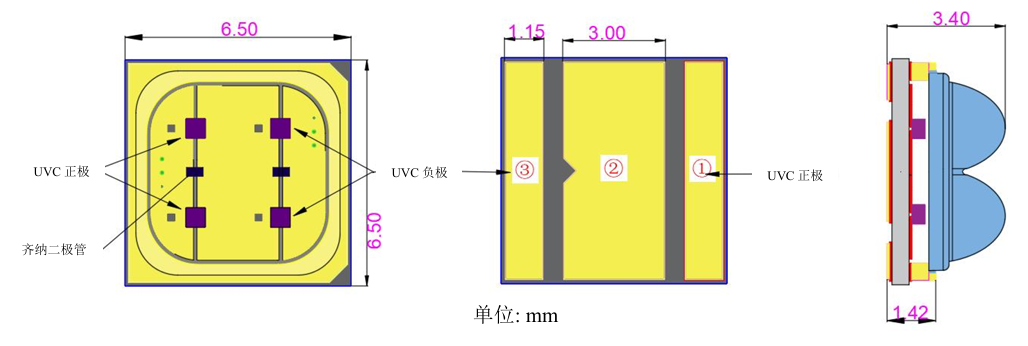

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
LM24QMC Product Specification
|
SPECIFICATION | 2025-07-15 | Loading in progress | download |
