LD2MHAA
Product characteristics
Product features: high reliability, long lifespan, environmentally friendly and energy-saving, 60 ° light emission angle; Application areas: sterilization and disinfection, medical phototherapy, optical sensors, biological analysis/detection
Optical power
6~15 mW
wavelength
260~280 nm
viewing angle
50°~70°

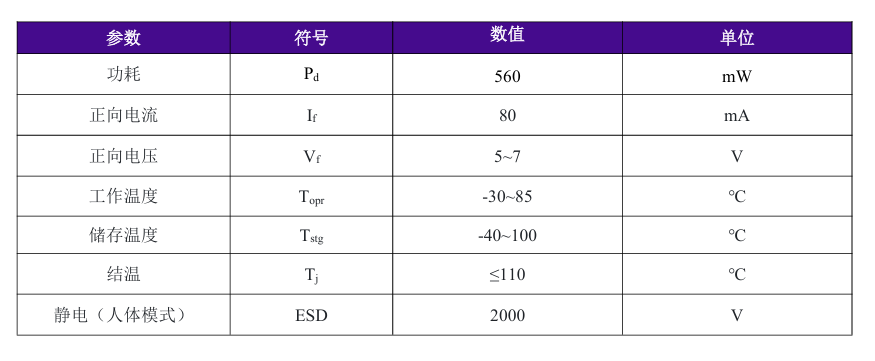

Basic parameters
Optical power
6~15 mW
drive current
40 mA
wavelength
260~280 nm
Light output angle
60°
working voltage
5~7 V

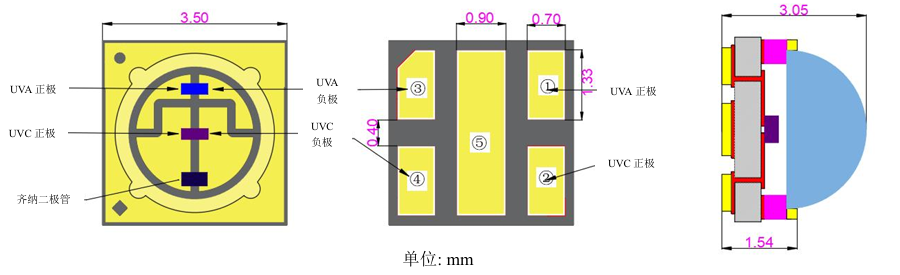

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
LD2MHAA Product Specification
|
SPECIFICATION | 2025-07-14 | Loading in progress | download |
