LD2AQBB
Product characteristics
Product features: high reliability, long lifespan, environmentally friendly and energy-saving, 120 ° light emission angle; Application areas: sterilization and disinfection, medical phototherapy, optical sensors, biological analysis/detection
Optical power
15~50 mW
wavelength
260~280 nm
viewing angle
110°~130°

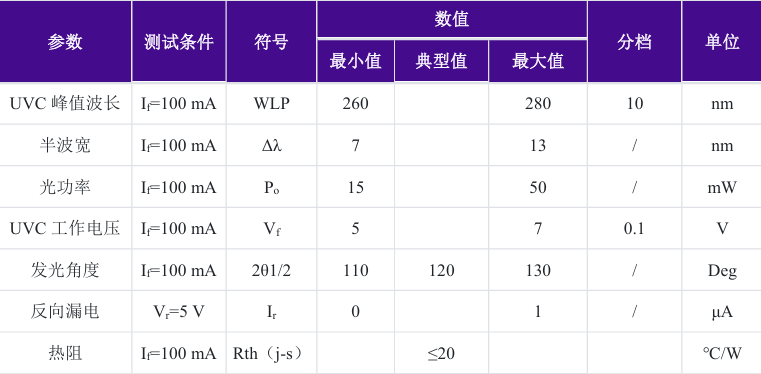

Basic parameters
Optical power
15~50 mW
drive current
100 mA
wavelength
260~280 nm
Light output angle
120°
working voltage
5~7 V

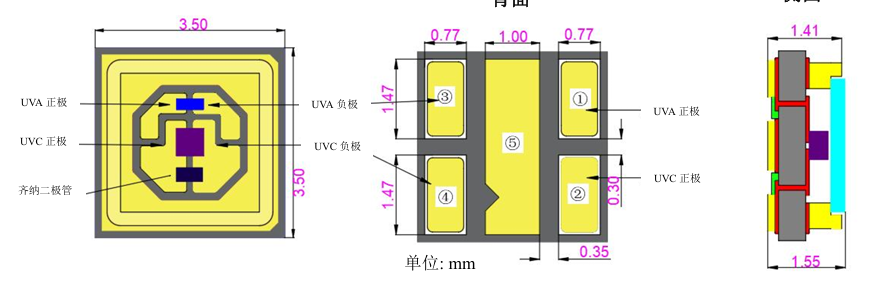

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
LD2AQBB Product Specification
|
SPECIFICATION | 2025-07-14 | Loading in progress | download |
