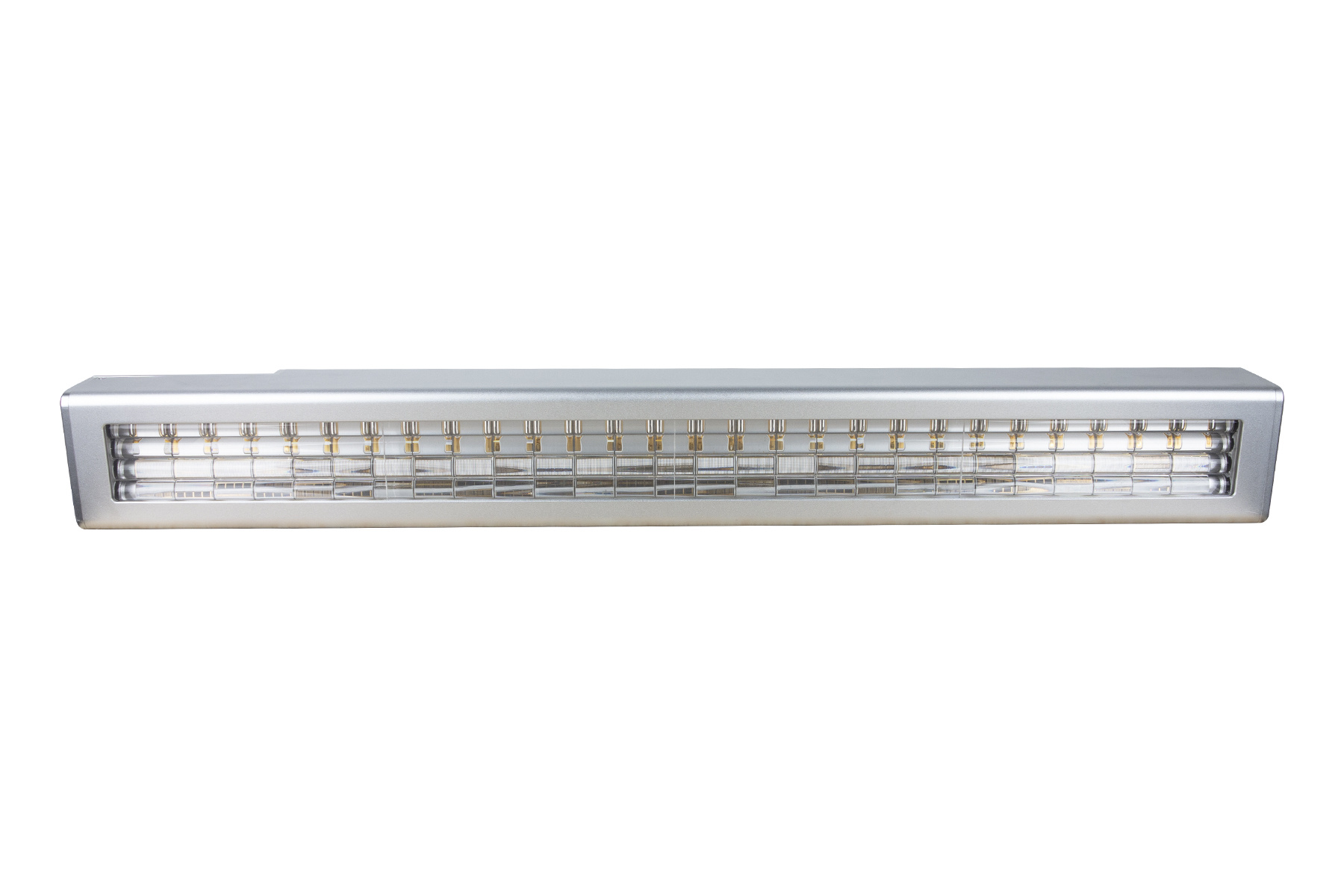

VE-1050 curing offset printing light source
Product characteristics
Excellent "focusing parallel light" optical design, suitable for 700+high illumination single sheet paper printing machines in the range of 0-100mm, and 100+UVLED, UV, IR, UVC full series products of rotary printing machines, serving the printing industry
Application
Offset printing
length
1020 mm
Radiation intensity
12W/cm2
Basic parameters
wavelength
385 nm
Radiation intensity
12W/cm2
Effective irradiation area
1020*60 mm
Irradiation distance
80~100 mm
Cooling method
water-cooling
Dimensions
1200 × 103 × 127. 4 (mm）
Whole machine weight
About 28KG
control mode
PLC
Drive power supply
DC power supply
Whole machine power
About 16KW

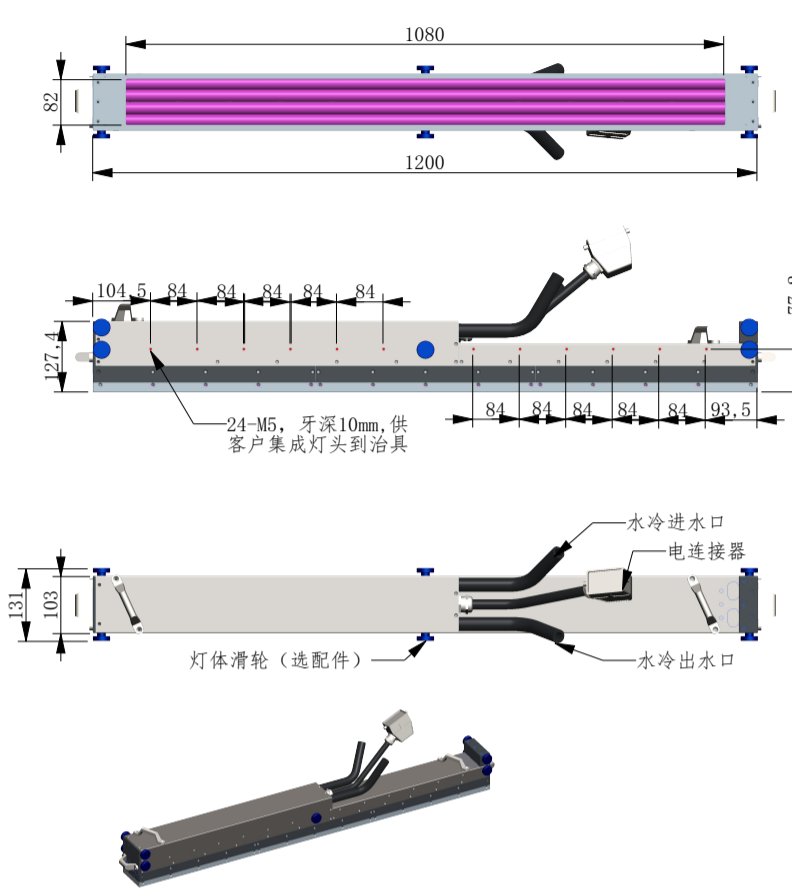

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
VE-1050 Curing Offset Light Source Specification
|
SPECIFICATION | 2025-07-05 | Loading in progress | download |
