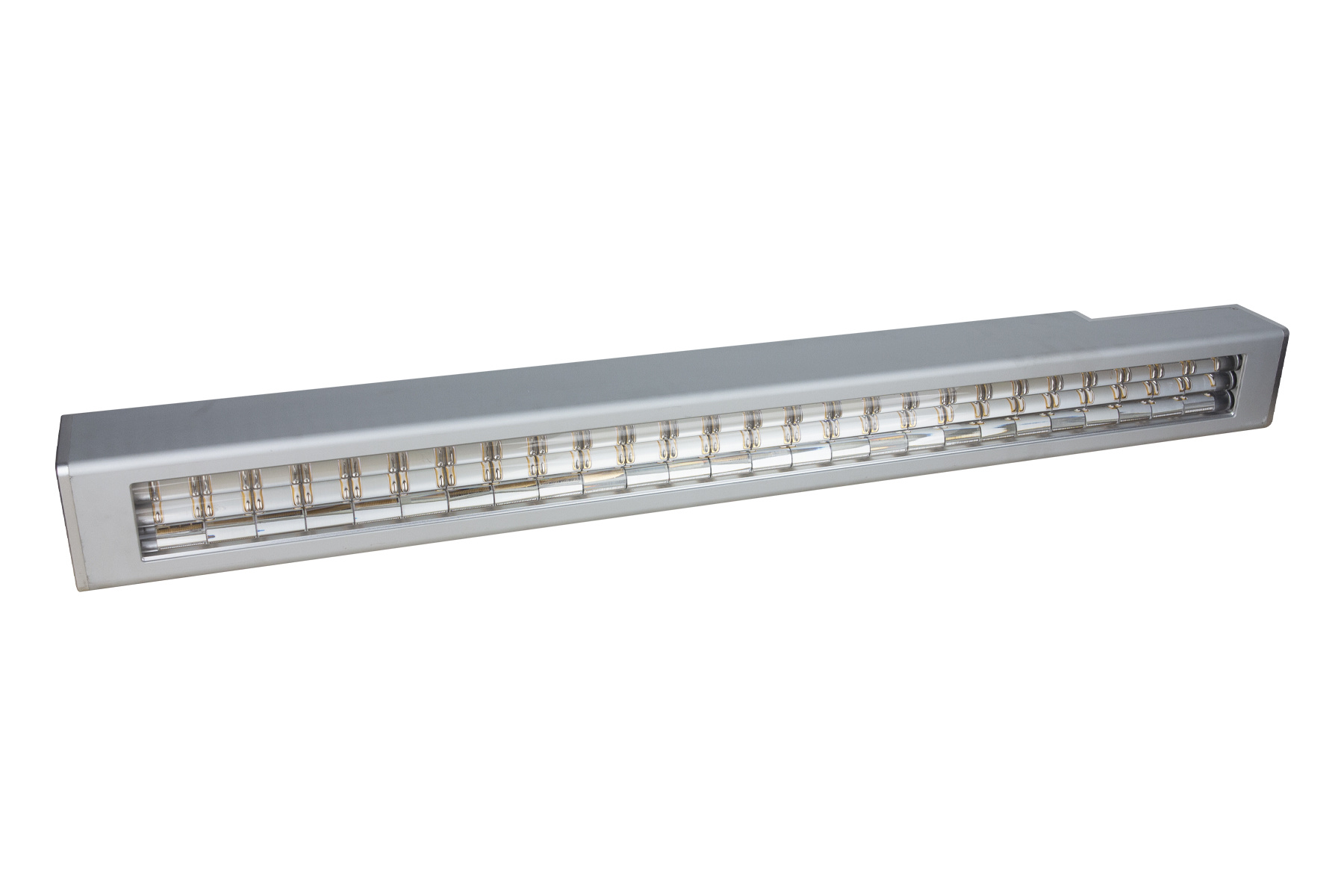

VS-1050 curing offset printing light source
Product characteristics
Excellent "focusing parallel light" optical design, suitable for 700+high illumination single sheet paper printing machines in the range of 0-100mm, and 100+UVLED, UV, IR, UVC full series products of rotary printing machines, serving the printing industry
Application
Offset printing
length
1065 mm
Radiation intensity
15W/cm2
Basic parameters
wavelength
385 nm
Radiation intensity
15W/cm2
Effective irradiation area
1065*60 mm
Irradiation distance
30~100 mm
Cooling method
forced air cooling
Dimensions
L119. 1*W115. 4*H120mm
Whole machine weight
About 7KG
control mode
PLC
Drive power supply
DC power supply
Whole machine power
About 14KW

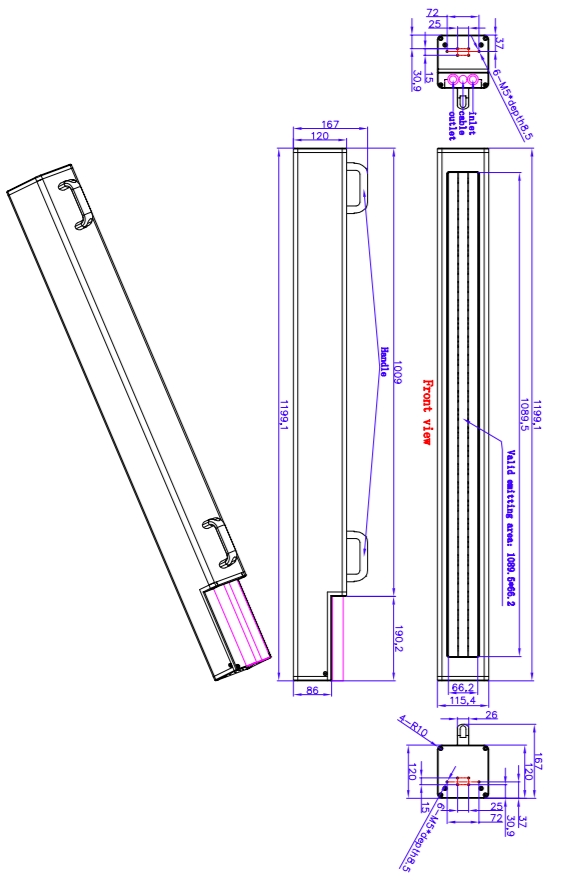

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
Specification for VS-1050 Curing Offset Printing Light Source
|
SPECIFICATION | 2025-07-05 | Loading in progress | download |
