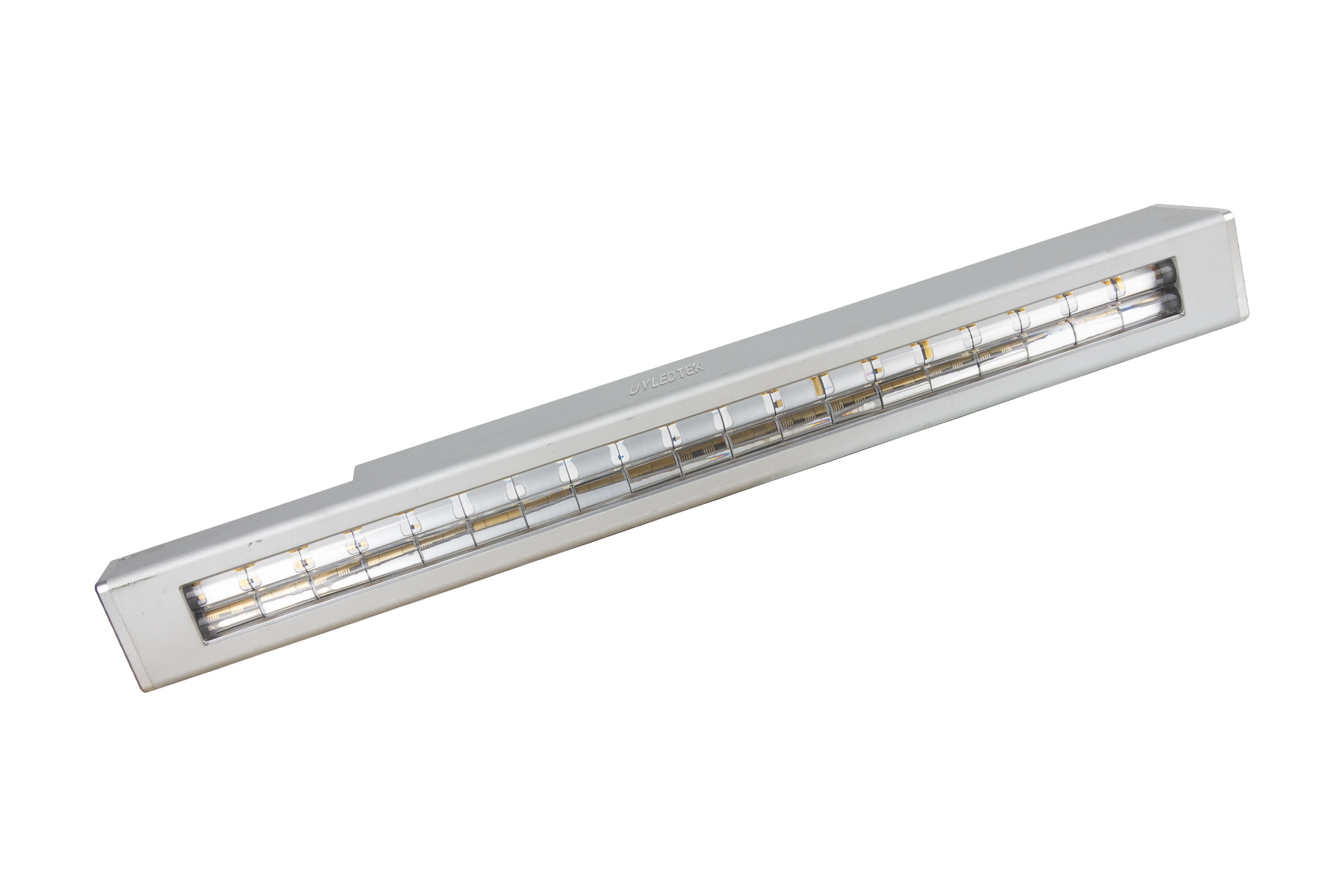

VF-750 curing offset printing light source
Product characteristics
Excellent "focusing parallel light" optical design, suitable for 700+high illumination single sheet paper printing machines in the range of 0-100mm, and 100+UVLED, UV, IR, UVC full series products of rotary printing machines, serving the printing industry
Application
Offset printing
length
778 mm
Radiation intensity
＞10W/cm2
Basic parameters
wavelength
385 nm
Radiation intensity
＞10W/cm2
Effective irradiation area
778*60 mm
Irradiation distance
30~100 mm
Cooling method
forced air cooling
Dimensions
L892*W90*H120mm
Whole machine weight
About 4KG
control mode
PLC
Drive power supply
DC power supply
Whole machine power
Approximately 4.4KW

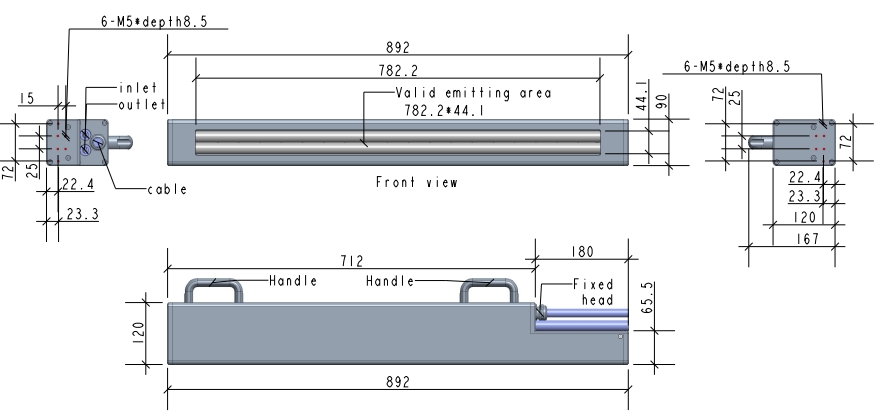

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
VF-750 Curing Offset Printing Light Source Specification
|
SPECIFICATION | 2025-07-05 | Loading in progress | download |
