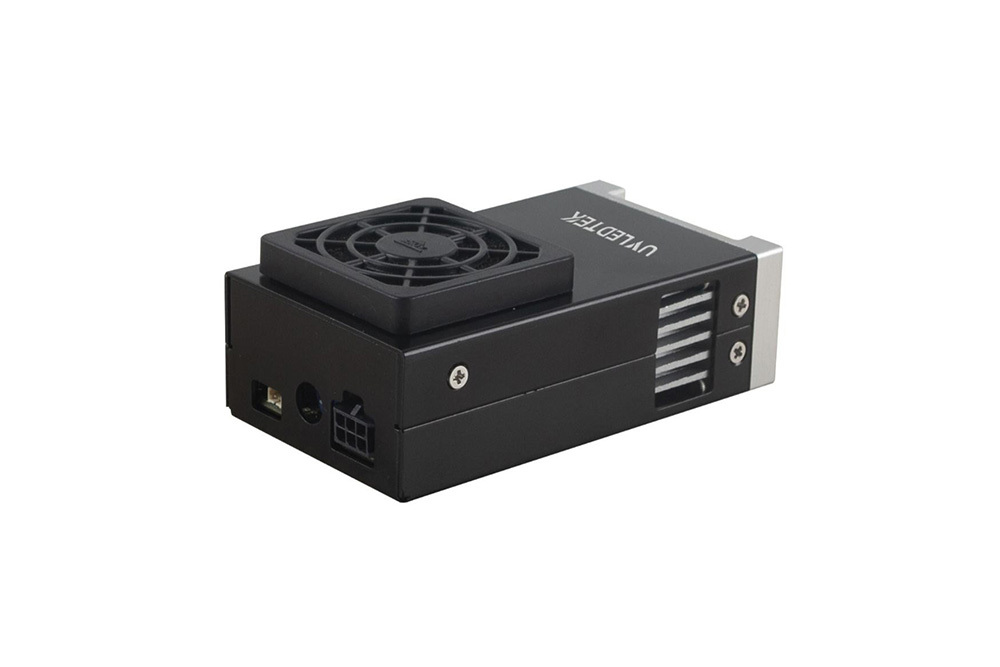

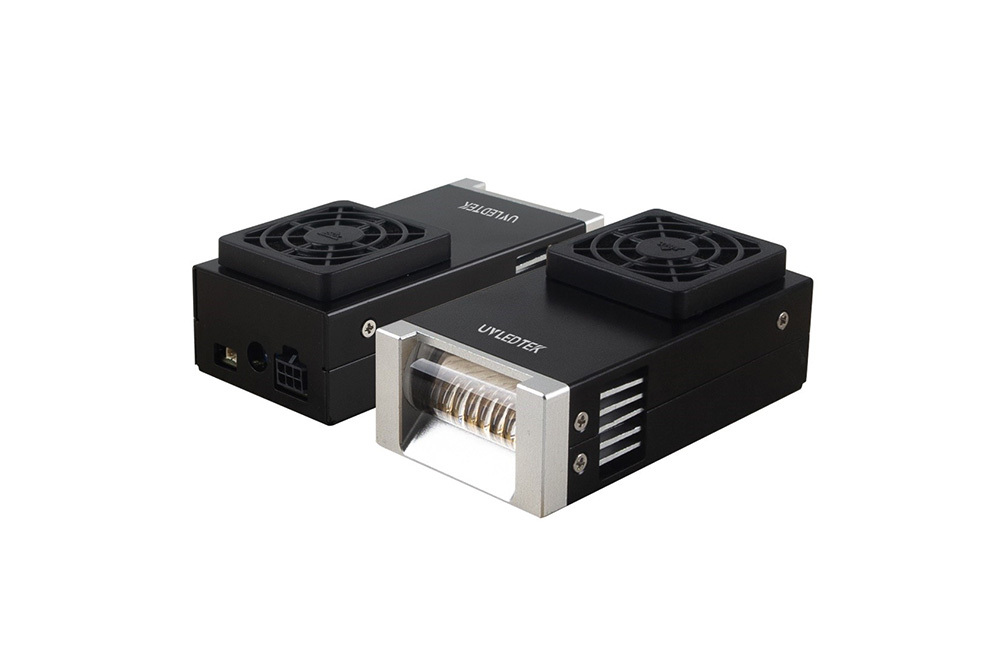

36.6 × 16 air-cooled digital printing UVA curing light source
Product characteristics
Specifications such as 160, 200, 220, etc., with a speed of 120-200 meters per minute, UVLEDTEK digital light source products provide refined product management for users' actual usage needs. Through precise control of the light efficiency and angle of the light source, the application effect of the equipment is optimized. Bring the most cost-effective products to customers
wavelength
395 nm
Effective irradiation area
36. 6×16 mm
Basic parameters
wavelength
395 nm
radiance
≥5. 8 W/cm2
Effective irradiation area
36. 6×16 mm
Suggested irradiation distance
≤5 mm
Cooling method
forced air cooling
Dimensions
90*54*33. 3 mm
control mode
12-24V level
Drive power supply
DC 24V
power consumption
60W

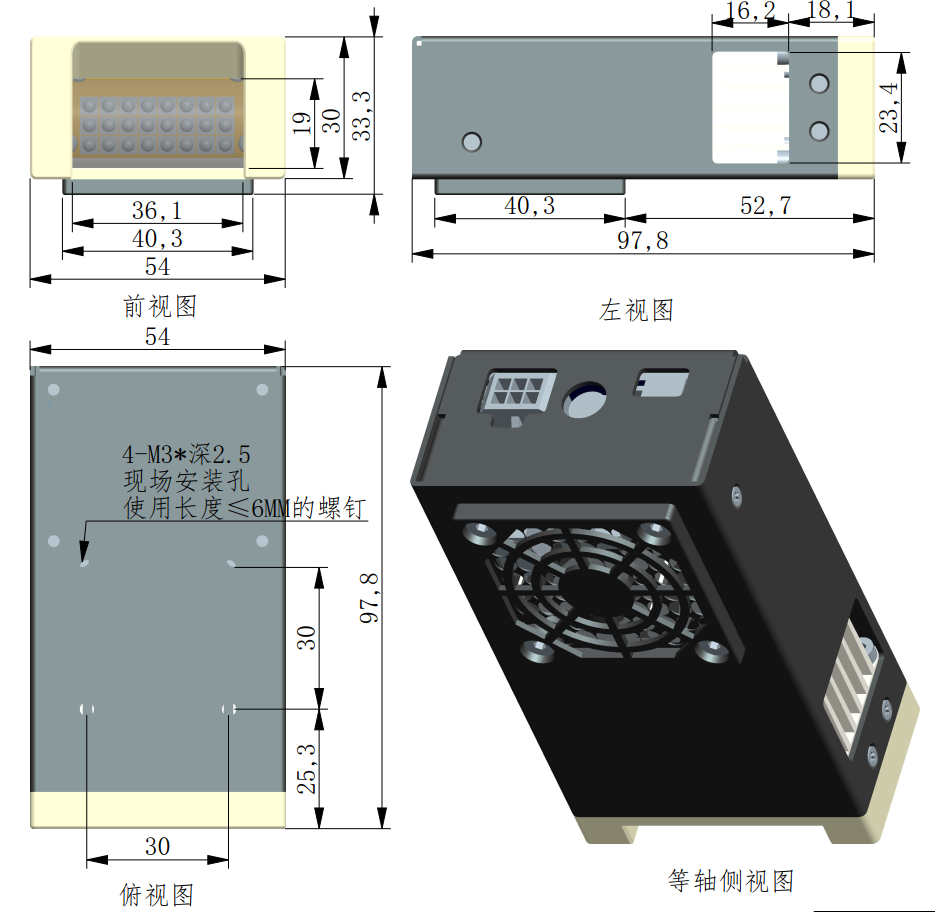

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
Specification for 36.6x16 air-cooled digital printing light source
|
SPECIFICATION | 2025-07-06 | Loading in progress | download |
