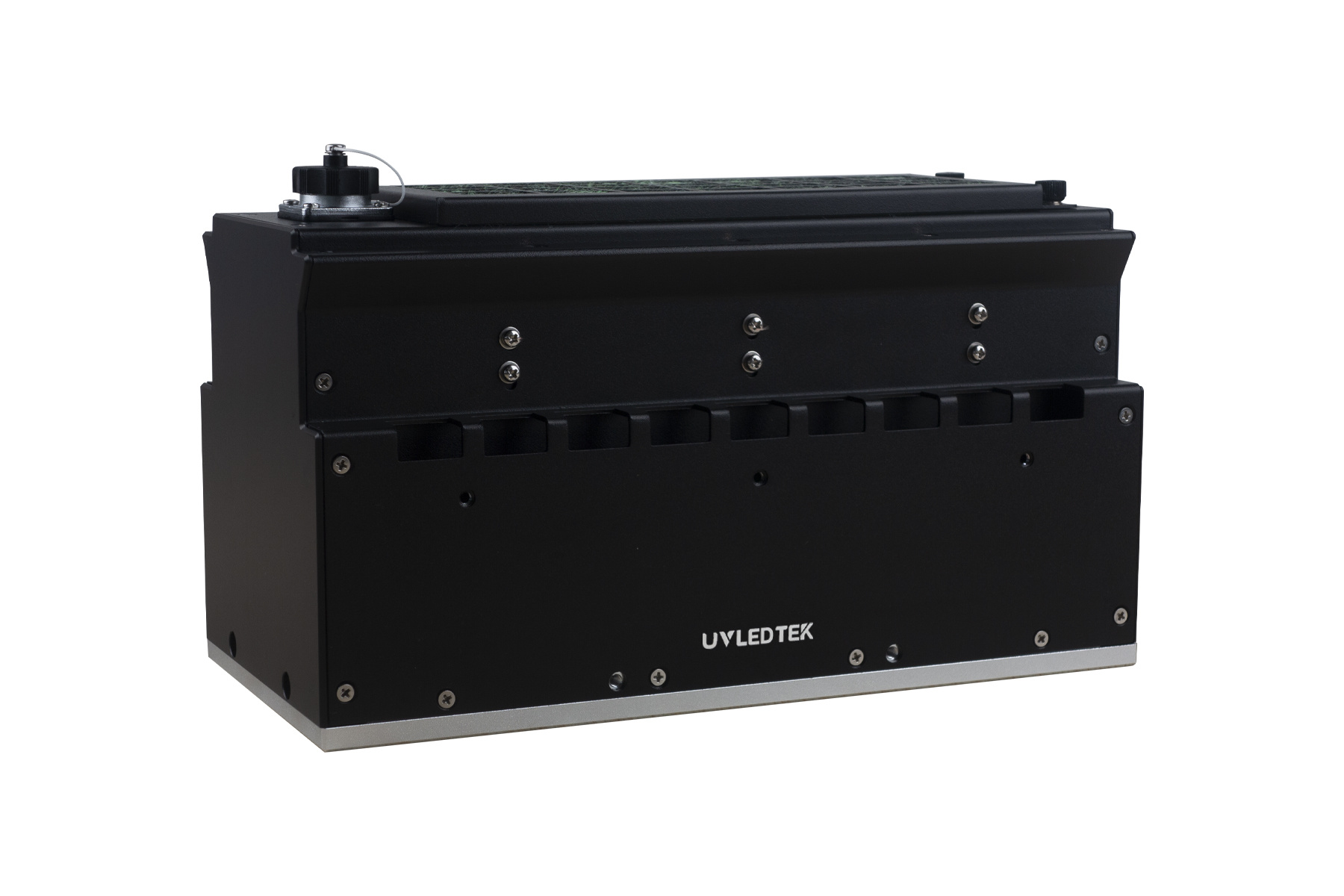

240 × 40 air-cooled digital printing UVA curing light source
Product characteristics
Specifications such as 160, 200, 220, etc., with a speed of 120-200 meters per minute, UVLEDTEK digital light source products provide refined product management for users' actual usage needs. Through precise control of the light efficiency and angle of the light source, the application effect of the equipment is optimized. Bring the most cost-effective products to customers
wavelength
395 nm
Effective irradiation area
230×40 mm
Basic parameters
wavelength
395 nm
radiance
≥15 W/cm2
Effective irradiation area
230×40 mm
Suggested irradiation distance
3~5 mm
Cooling method
forced air cooling
Dimensions
280*133*158. 1 mm
Whole machine weight
About 3KG
control mode
Alternative options such as switch signal/level signal/PLC
Drive power supply
Constant current drive
power consumption
Less than 1350W/irradiation head

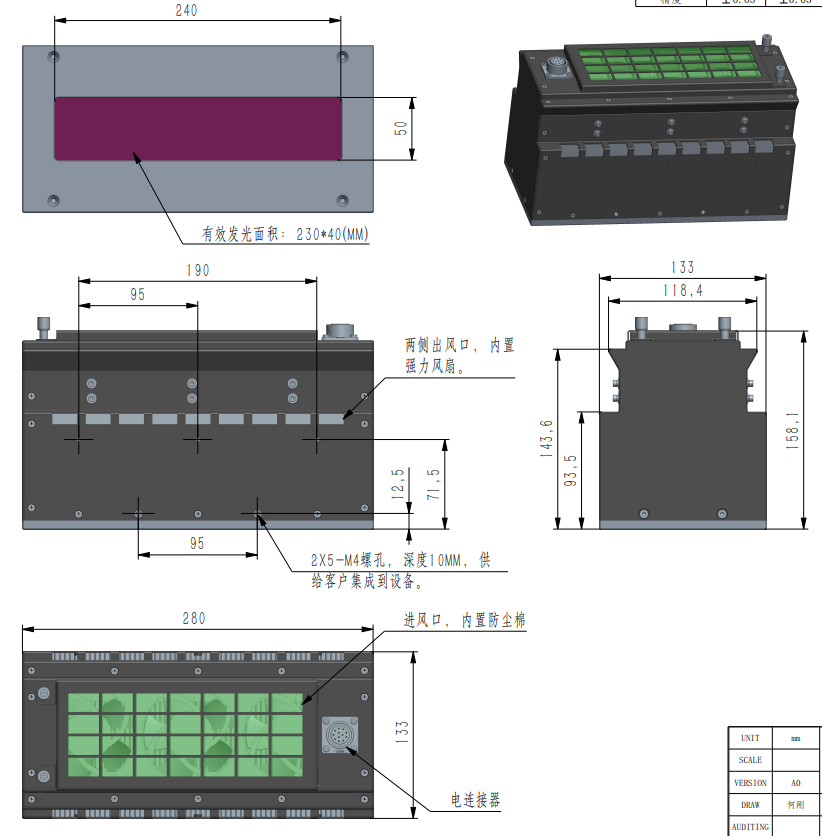

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
Specification for 240x40 air-cooled digital printing light source
|
SPECIFICATION | 2025-07-06 | Loading in progress | download |
