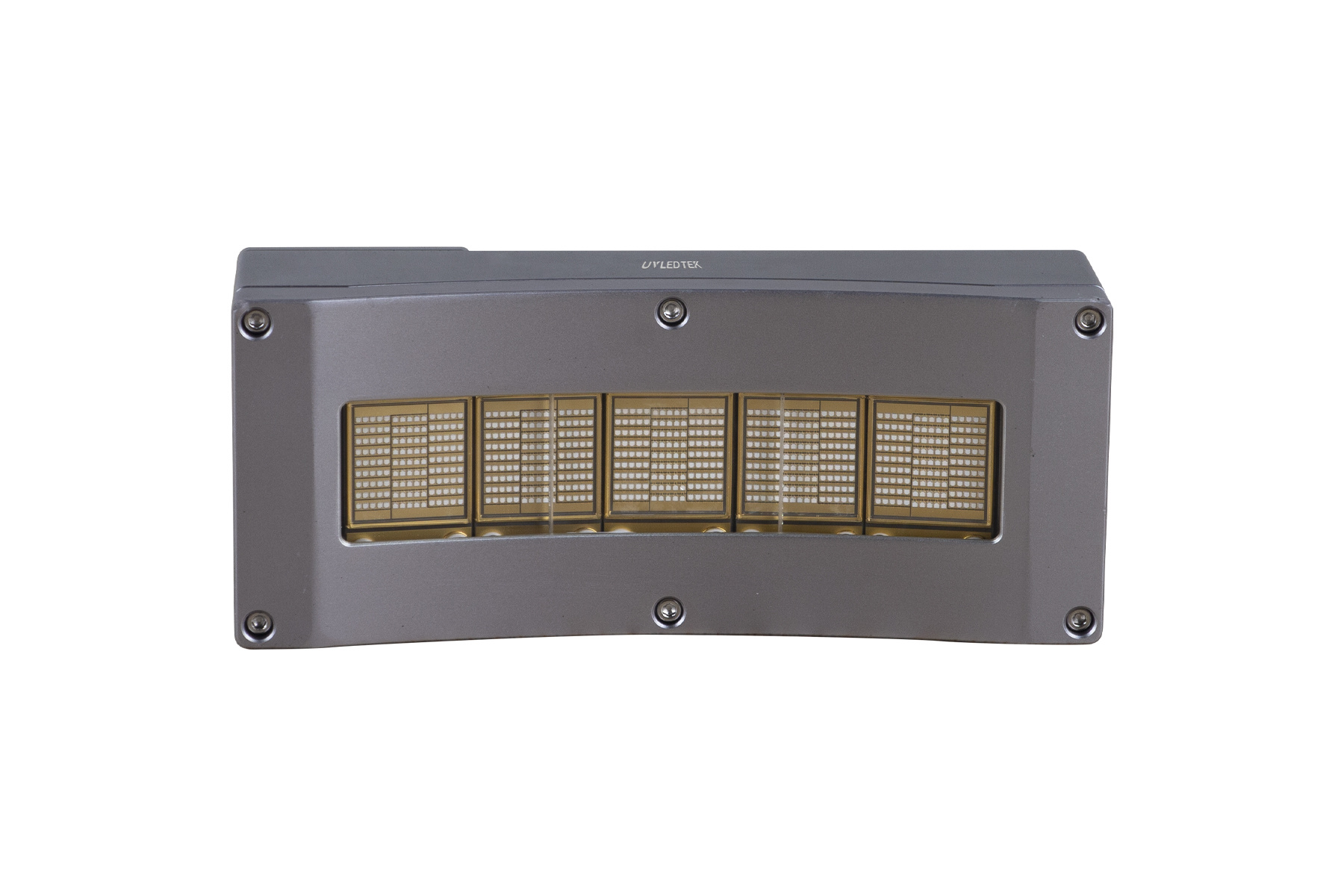

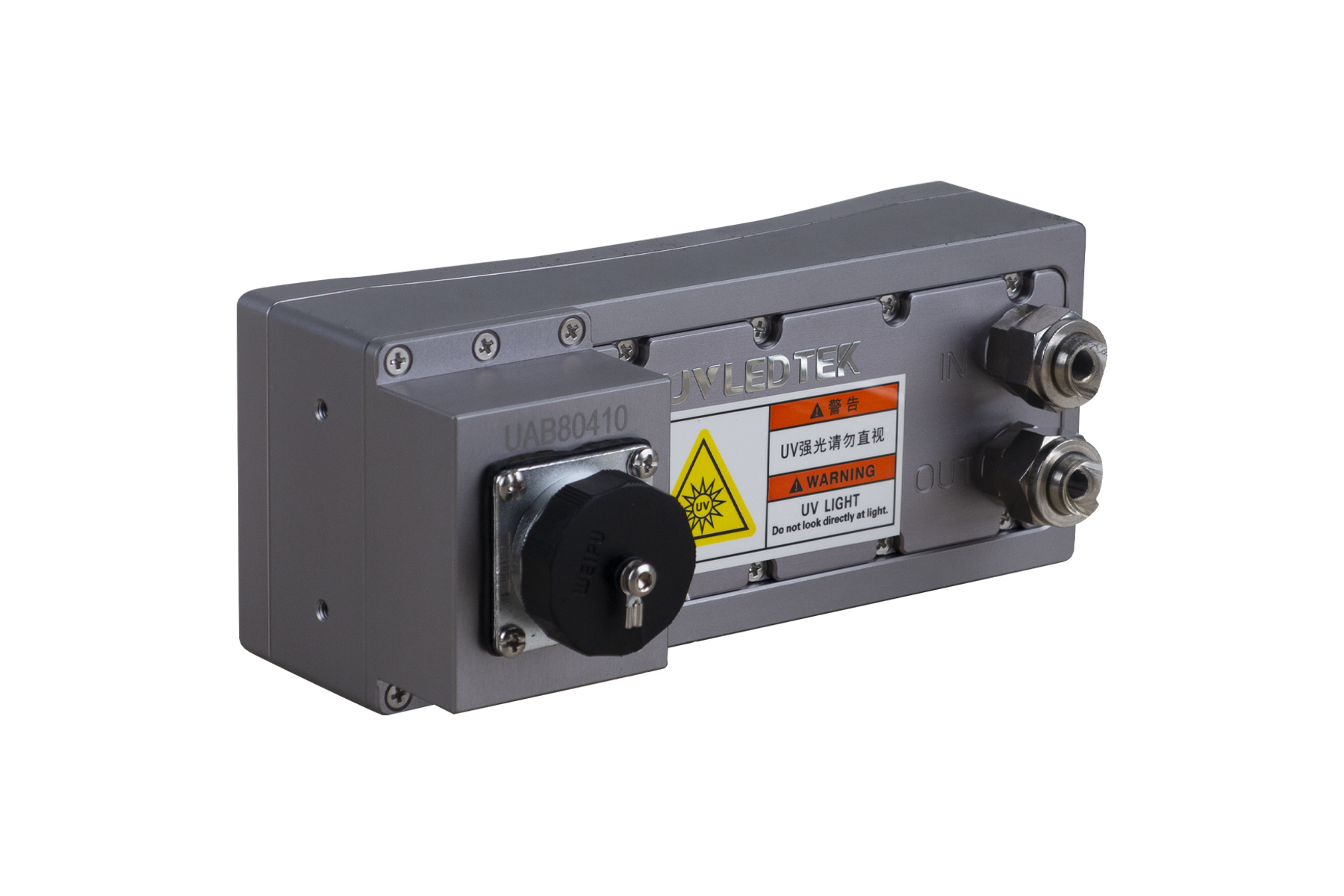

160 × 20 air-cooled digital printing UVA curing light source
Product characteristics
Specifications such as 160, 200, 220, etc., with a speed of 120-200 meters per minute, UVLEDTEK digital light source products provide refined product management for users' actual usage needs. Through precise control of the light efficiency and angle of the light source, the application effect of the equipment is optimized. Bring the most cost-effective products to customers
wavelength
395 nm
Effective irradiation area
160×40 mm
Basic parameters
wavelength
395 nm
radiance
30 W/cm2
Effective irradiation area
160×40 mm
Suggested irradiation distance
5~10 mm
Cooling method
forced air cooling
Dimensions
200*70*85 mm
Whole machine weight
About 1KG
Drive power supply
Constant current drive
power consumption
About 2800W

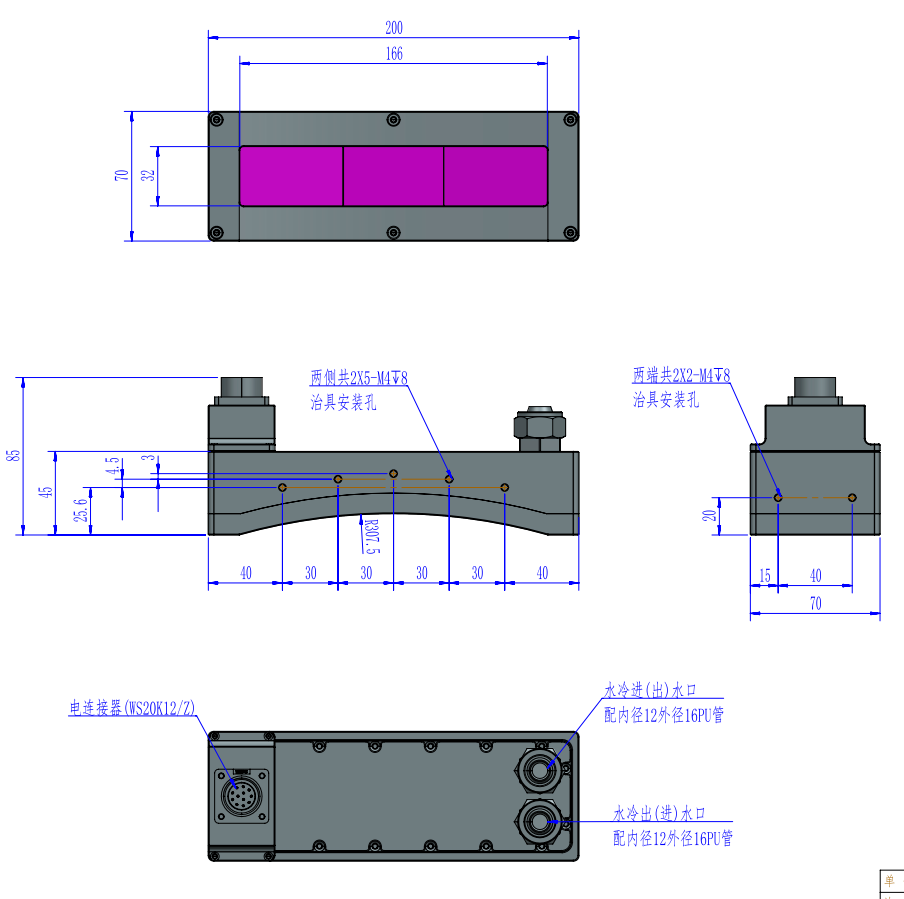

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
Specification for 160x20 air-cooled digital printing light source
|
SPECIFICATION | 2025-07-06 | Loading in progress | download |
