MSS002A Surface sterilization module

Hubei Youweixin Maternal and Child Disinfection Cabinet-275nm deep ultraviolet LED Sterilization module

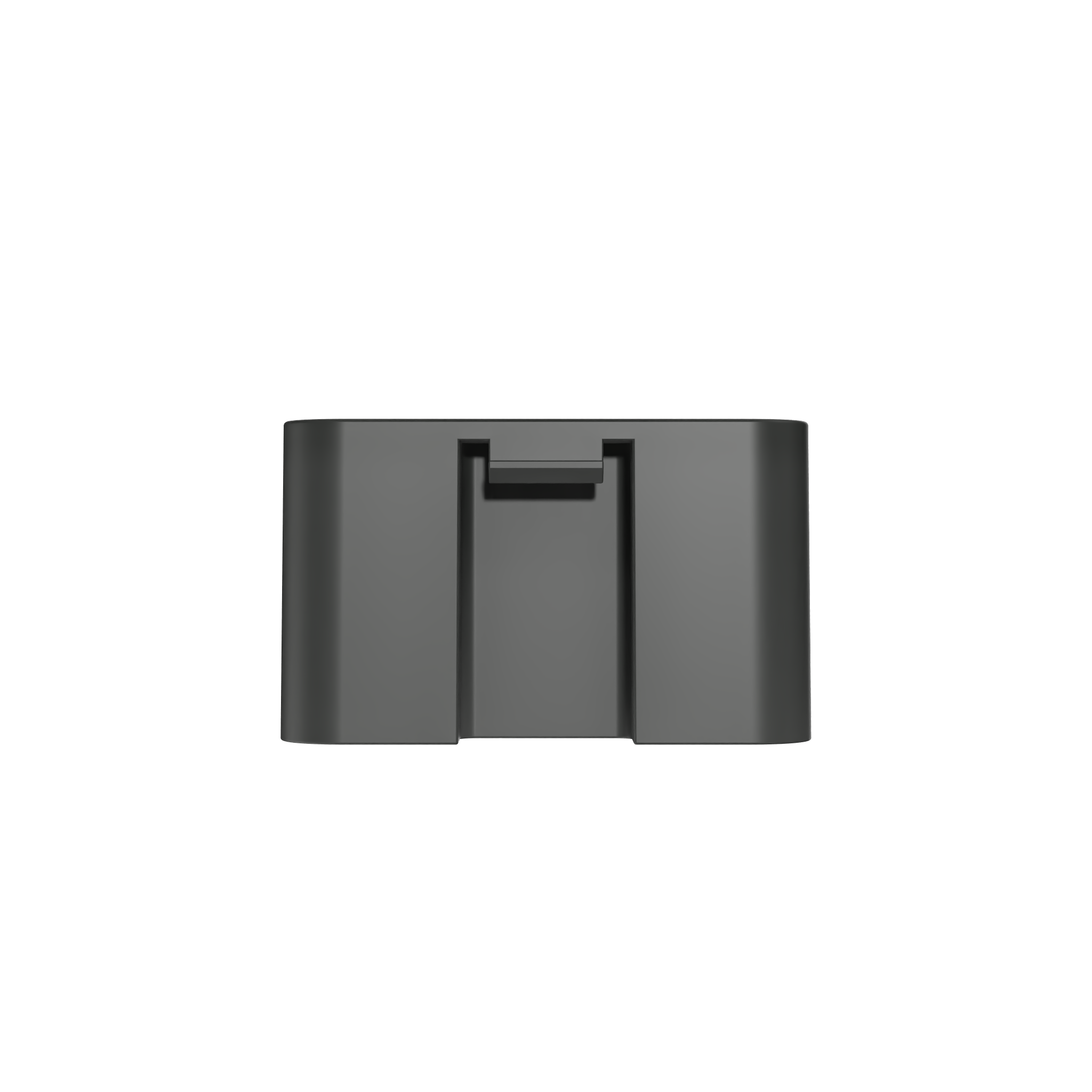

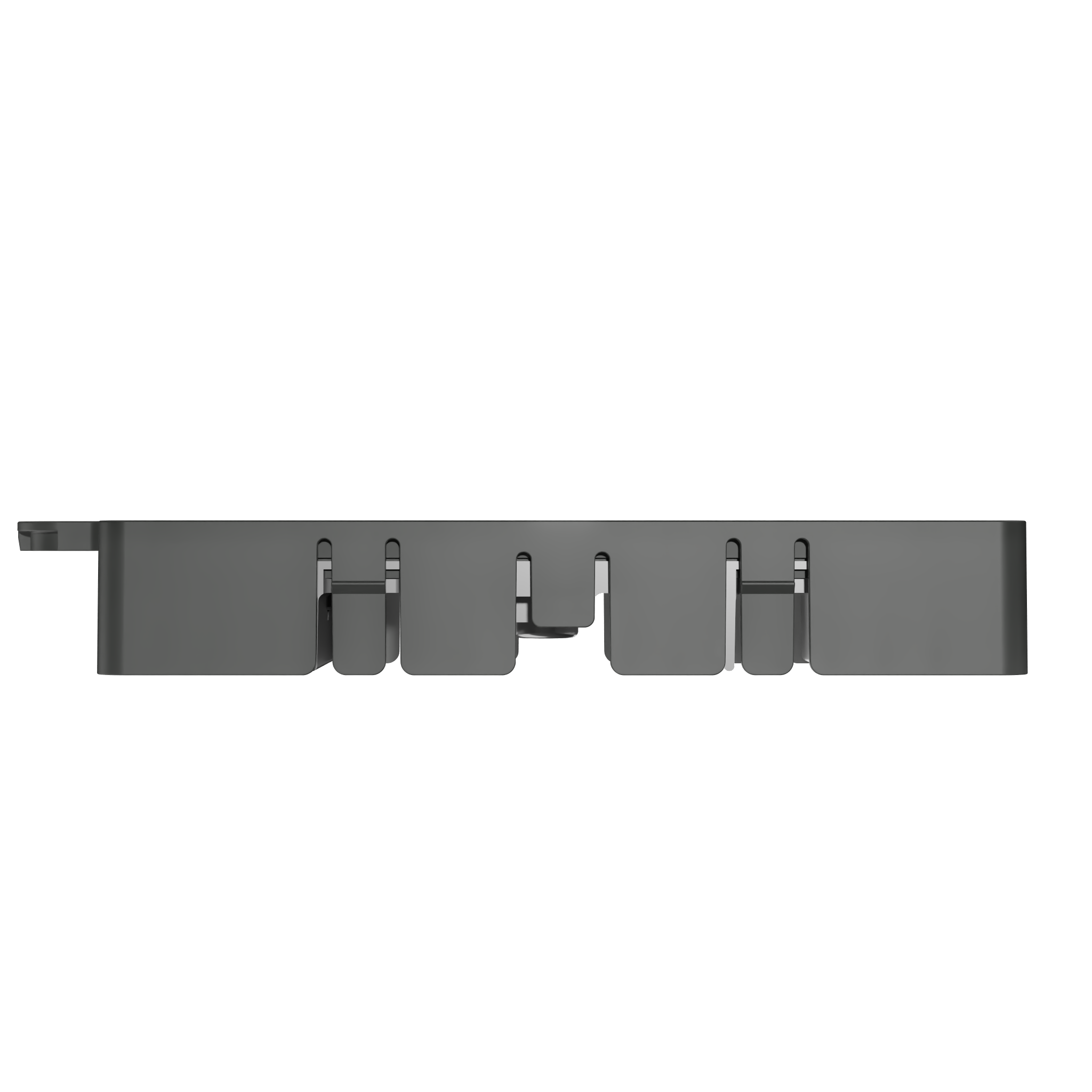

product image
product image
product image
thumbnail
thumbnail
thumbnail
Product Model MSS002A
Product Category Surface sterilization module
Product documentation
MSS002A Chinese. pdf
413KB
MSS002A Specification. pdf
503KB

Product description

Specially designed for robotic vacuum cleaners, carry, mount, equip, deploy 4 piece 270-285nm UVC LED package (Single piece≥24mW optical power) +1 piece UVA LED package+6 A white light LED. constant voltage driving (12-16V) , Total machine power≤3W, support-40℃~65℃Harsh Environments. Heat dissipation and shockproof packaging through aluminum substrate, implement 99. 9%Pathogen inactivation, Meet the immediate disinfection and sterilization needs of household and commercial cleaning equipment.

Product Features

optical system: Tetranuclear deep ultraviolet UVC (270-285nm) , collaboration UVA (390-405nm) Long-lasting antibacterial , White light assisted illumination (3000K color temperature, 26-30LM) ; Electrical performance: 12-16V Wide voltage constant current drive , BP1808A major IC Flow control , HBM 2kV Electrostatic protection

Application scenarios

Surface sterilization module for car seats UVLEDTEK's car seat exclusive UVLED Sterilization light source, Can effectively inhibit bacteria and remove odors, Significantly improve the quality of the car interior environment. We use professional technology, Creating a comfortable and healthy in car environment for you.

Daily commuting: Before using the car every day, The module has completed sterilization, The seat is clean and odorless, Say goodbye to the discomfort after prolonged sitting, Start a refreshing commute. Family travel with children: After the child plays on the seat, The module can kill residual bacteria, Next time you ride, don't worry about your child touching the seat and causing skin discomfort. Multiple people sharing vehicles: Whether it's borrowing a car from a friend or using an online ride hailing service, The module automatically sterilizes after each use, Reduce cross contamination, Enable every passenger to ride with peace of mind.

Basic Parameters

parameter name parameter value
Drive Type constant voltage driving
rated voltage 12~16 V
rated power ≤3 W
UVC Lamp bead rated (total) current ≤240 mA
UVA Lamp bead rated (total) current ≤90 mA
UVC Number of LED package 4 pcs
UVA Number of LED package 1 pc

structural dimensions

Detailed specifications

Frequently Asked Questions

What is the color visible to the naked eye UV-C LED Visible part of the emission spectrum, It comes from oxygen substitution sites in semiconductor materials, Electronic transitions between various deep energy levels such as lattice mismatch dislocations and conduction band energy levels. Because the defect energy level is located higher relative to the quantum well valence band, So the photons emitted by electronic transitions have longer wavelengths, usually 450nm left and right, For visible light. Restricted by the accuracy of semiconductor equipment, Chips from different regions and batches on the wafer, The concentration of material defects, There are slight differences in defect categories. This difference results in a difference in the position of deep energy levels that emit visible light, Further emit visible light of different wavelengths, Presenting different colors. Although the wavelength difference is very small, But it is noticeable to the naked eye.
UVC-LED Will not produce ozone, Because the covalent bond between oxygen and oxygen can reach up to 5. 1eV, The corresponding wavelength needs to be at least shorter than 243nm Only ultraviolet rays can interrupt it, Ultimately generate ozone.

Youweixin provides professional pre-sales and after-sales consultation and services. We will recommend the most suitable one based on your needs UVLED product. If you have any questions, Please feel free to send us an email at any time:

info@uvledtek. com

Due to the large number of emails received every day, And the time zones are different, We may not be able to reply to your email immediately. But we will 24 Reply to your inquiry within one working hour.
