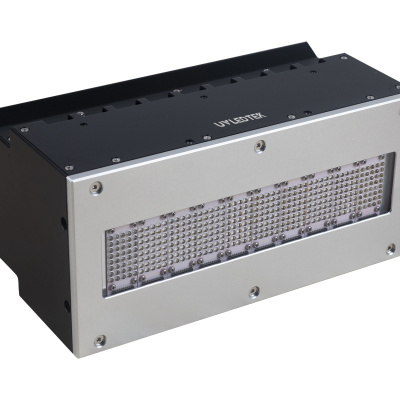

240×40 Air cooled digital printing UVA curing light source digital printing
wavelength
395 nm
irradiance
≥15 W/cm2
Effective irradiation area
230×40 mm
Suggested irradiation distance
3~5 mm
cooling method
air cooling
Overall dimensions
280*133*158. 1 mm

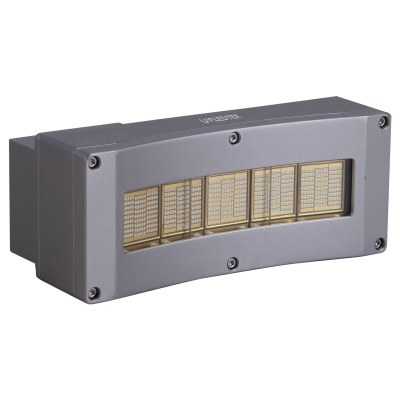

160×20 Air cooled digital printing UVA curing light source digital printing
wavelength
395 nm
irradiance
30 W/cm2
Effective irradiation area
160×40 mm
Suggested irradiation distance
5~10 mm
cooling method
air cooling
Overall dimensions
200*70*85 mm

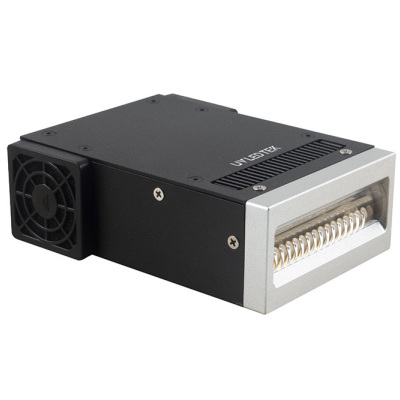

110×10 Air cooled digital printing UVA curing light source digital printing
wavelength
395 nm
irradiance
10 W/cm2
Effective irradiation area
110×10 mm
Suggested irradiation distance
5~10 mm
cooling method
air cooling
Overall dimensions
150*117*45 mm

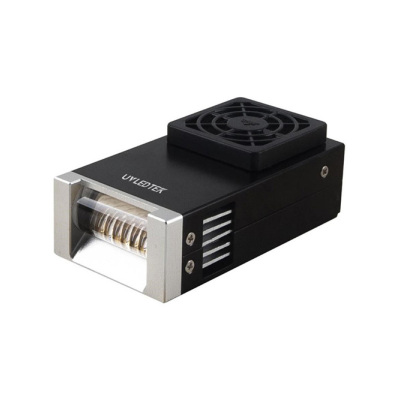

75×10 Air cooled digital printing UVA curing light source digital printing
wavelength
395 nm
irradiance
10 W/cm2
Effective irradiation area
75×10 mm
Suggested irradiation distance
5~10 mm
cooling method
air cooling
Overall dimensions
151. 9*104*44. 5 mm
new

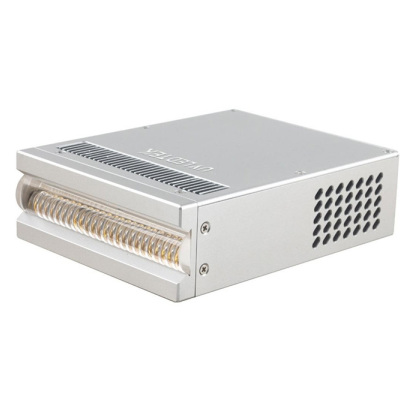

36. 6×16 Air cooled digital printing UVA curing light source digital printing
wavelength
395 nm
irradiance
≥5. 8 W/cm2
Effective irradiation area
36. 6×16 mm
Suggested irradiation distance
≤5 mm
cooling method
air cooling
Overall dimensions
90*54*33. 3 mm
