MIT005A Intelligent toilet full waterway UV sterilization module
recommend

MIT005A Intelligent toilet full waterway UV sterilization module Flowing water disinfection module

Drive Type
constant voltage driving
rated voltage
12 V
rated current
110~130 mA
rated power
1~1. 6 W
optical power
30~35 mW
peak wavelength
270~285 nm
MIT006A

MIT006A Flowing water disinfection module

rated voltage
12 V
rated current
100 mA
rated power
1. 2 W
Handling traffic
'0. 7 L/min
optical power
40 mW
peak wavelength
270~280 nm
MIT007A

MIT007A Flowing water disinfection module

Drive Type
constant voltage driving
rated voltage
12 V
rated current
300 mA
rated power
3. 6 W
Handling traffic
'1. 5 L/min
optical power
45 mW
MWP002A

MWP002A Flowing water disinfection module

Drive Type
constant voltage driving
rated voltage
DC12 /DC12-24 V
rated current
≤230 / ≤300 mA
rated power
'3 / 3. 6 W
Handling traffic
≤2 L/min
optical power
≥50 mW
MWP001A

MWP001A Flowing water disinfection module

rated voltage
12±0. 5 V
rated current
≤200 mA
rated power
'2 W
Handling traffic
≤2 L/min
optical power
≥35 mW
peak wavelength
260~280 nm
MWP003A
popular

MWP003A Flowing water disinfection module

Drive Type
constant voltage driving
rated voltage
DC12~24 V
rated current
≤600 mA
rated power
≤8 W
Handling traffic
3~5 L
optical power
≥45 mW
MWP004A

MWP004A Flowing water disinfection module

rated voltage
DC12~24 V
rated current
'600 mA
rated power
'15 W
Handling traffic
≤10 L/min
optical power
≥50 mW
peak wavelength
270~280 nm
MWP005A

MWP005A Flowing water disinfection module

rated voltage
DC24±4 V
rated current
≥120 mA
rated power
＜3. 0 W
peak wavelength
270-280 nm
optical power
120 mW
radiant angle
120 °
MWP007A

MWP007A Flowing water disinfection module

Drive Type
constant current drive
rated voltage
11~13 V
rated current
200 mA
rated power
2. 2~2. 6 W
peak wavelength
270~280 nm
radiant angle
120 °

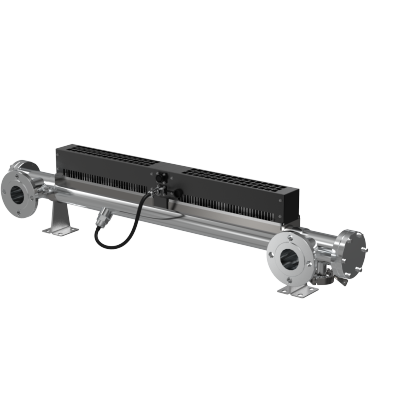

AqueGuard-A

AqueGuard-A Flowing water disinfection module

traffic
3 T/h
Number of light sources
1
A (mm)
400
B (mm)
380
C (mm)
158
D (mm)
90
AqueGuard-B

AqueGuard-B Flowing water disinfection module

traffic
5 T/h
Number of light sources
1
A (mm)
486. 5
B (mm)
480
C (mm)
117
D (mm)
92
