MIT001A Surface sterilization module

Toilet nozzle dedicated UVC LED Disinfection and sterilization module-Youweixin's deep sterilization solution

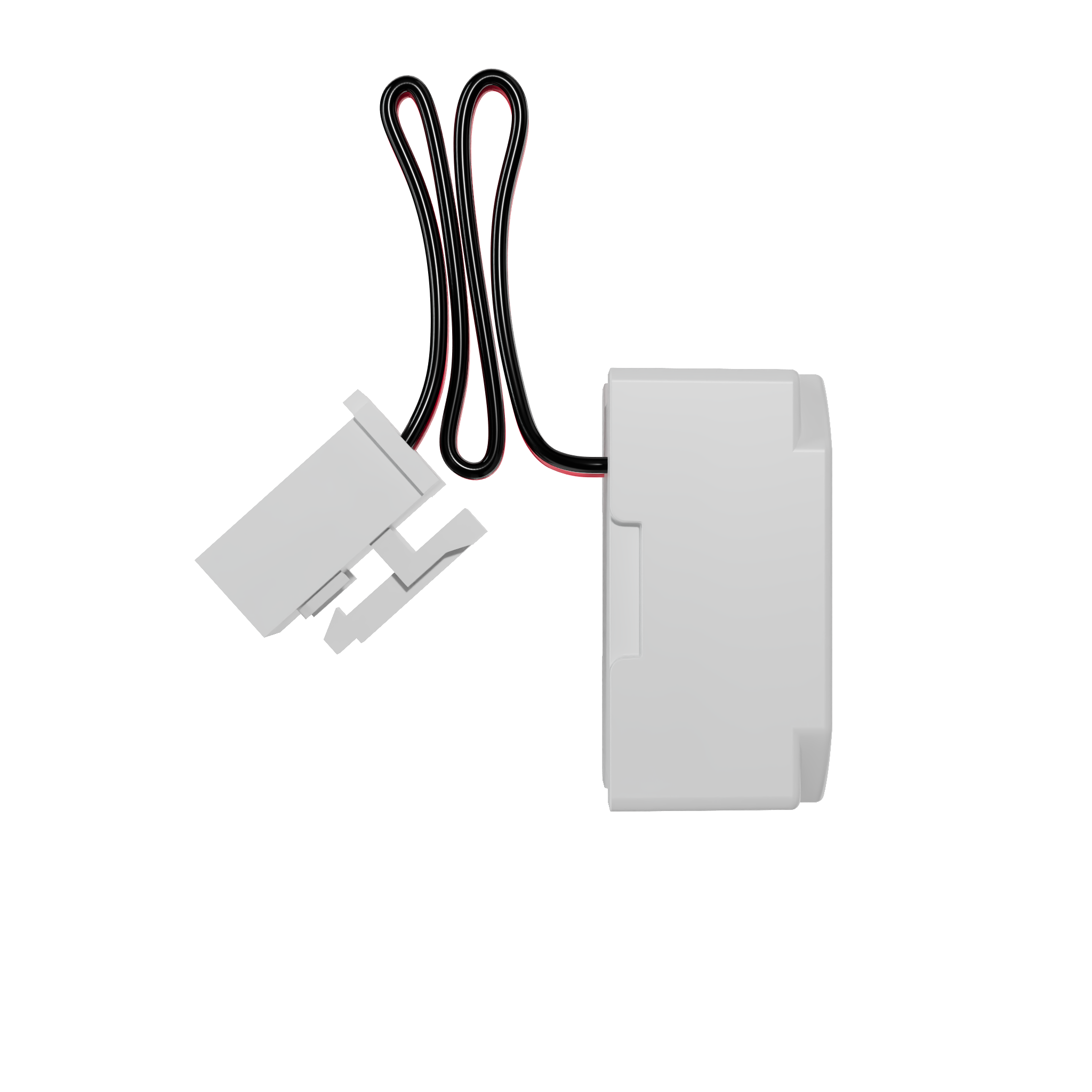

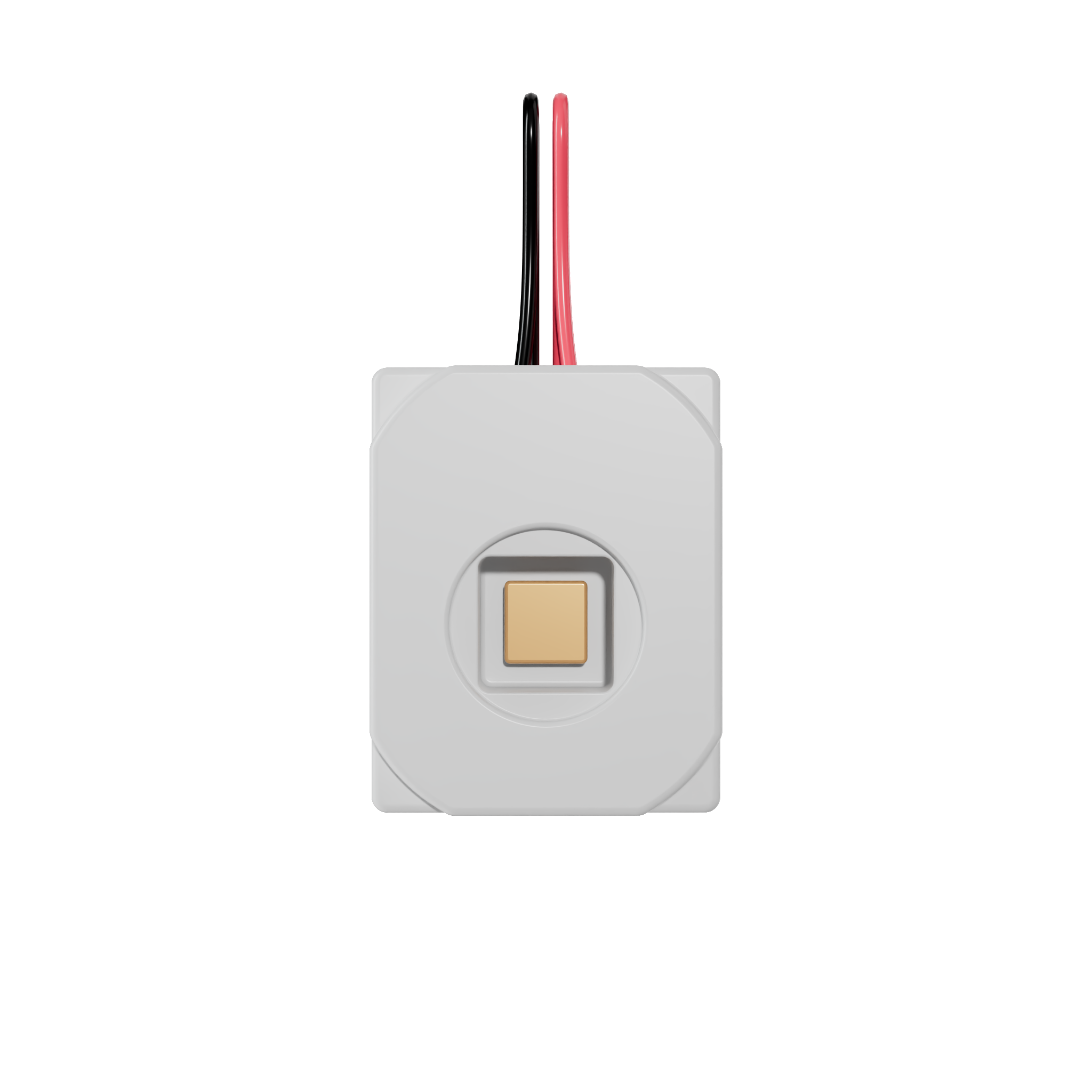

product image
product image
product image
thumbnail
thumbnail
thumbnail
Product Model MIT001A
Product Category Surface sterilization module
Product documentation
MIT001A Chinese. pdf
376KB
MIT001A Specification. pdf
384KB

Product description

270~285nm deep ultraviolet UVC LED module-Intelligent toilet nozzle for efficient sterilization, The sterilization rate is as high as 99. 9%; IP67 Waterproof and moisture-proof, Fully sealed design, Suitable for high humidity bathroom environments; Long service life 20, 000h

Product Features

Glass sheet injection molding integrated molding, good sealing performance, Less affected by the environment, high reliability;, LED Lamp beads are used UVA+UVC two-color, Enable consumers to perceive more intuitively UVC Performing sterilization work; modular design, Small and compact module, Snap on fixation, Easy to install and maintain

Application scenarios

Intelligent toilet surface sterilization module Intelligent toilet dedicated to UVLEDTEK UVLED Sterilization light source, Can effectively inhibit bacteria and deodorize, Significantly improve hygiene standards. We rely on professional UV technology, To provide you with high-quality solutions.

Daily household use: There is no need to worry about hygiene issues when sharing a toilet with the whole family, Triple sterilization for spray bar, water flow, The cylinder body is clean, Elderly and children feel more at ease using it. Women's Special Period: Women have high hygiene requirements during special periods, Spray bar and water flow become cleaner after sterilization, Reduce the risk of infection, More reassuring to use. Families with elderly people: Elderly people have weaker immunity, After sterilization, the cylinder body and spray bar, Reduce exposure to bacteria, Reduce hygiene hazards, Family members are more worry free.

Basic Parameters

parameter name parameter value
rated voltage 12 V
LED type two-color, UVC+UVA
rated current 20 mA
rated power 0. 25 W
UVC Lamp pearl power 5~8 mW
UVC Peak wavelength of lamp bead 270~285 nm
UVC Lamp bead luminous angle 120 °
UVC Positive voltage drop of lamp bead 5~7 V
UVA Peak wavelength of lamp bead 395~405nm
UVA Lamp pearl power 15~40mW

structural dimensions

Detailed specifications

Frequently Asked Questions

What is the color visible to the naked eye UV-C LED Visible part of the emission spectrum, It comes from oxygen substitution sites in semiconductor materials, Electronic transitions between various deep energy levels such as lattice mismatch dislocations and conduction band energy levels. Because the defect energy level is located higher relative to the quantum well valence band, So the photons emitted by electronic transitions have longer wavelengths, usually 450nm left and right, For visible light. Restricted by the accuracy of semiconductor equipment, Chips from different regions and batches on the wafer, The concentration of material defects, There are slight differences in defect categories. This difference results in a difference in the position of deep energy levels that emit visible light, Further emit visible light of different wavelengths, Presenting different colors. Although the wavelength difference is very small, But it is noticeable to the naked eye.
UVC-LED Will not produce ozone, Because the covalent bond between oxygen and oxygen can reach up to 5. 1eV, The corresponding wavelength needs to be at least shorter than 243nm Only ultraviolet rays can interrupt it, Ultimately generate ozone.

Youweixin provides professional pre-sales and after-sales consultation and services. We will recommend the most suitable one based on your needs UVLED product. If you have any questions, Please feel free to send us an email at any time:

info@uvledtek. com

Due to the large number of emails received every day, And the time zones are different, We may not be able to reply to your email immediately. But we will 24 Reply to your inquiry within one working hour.
