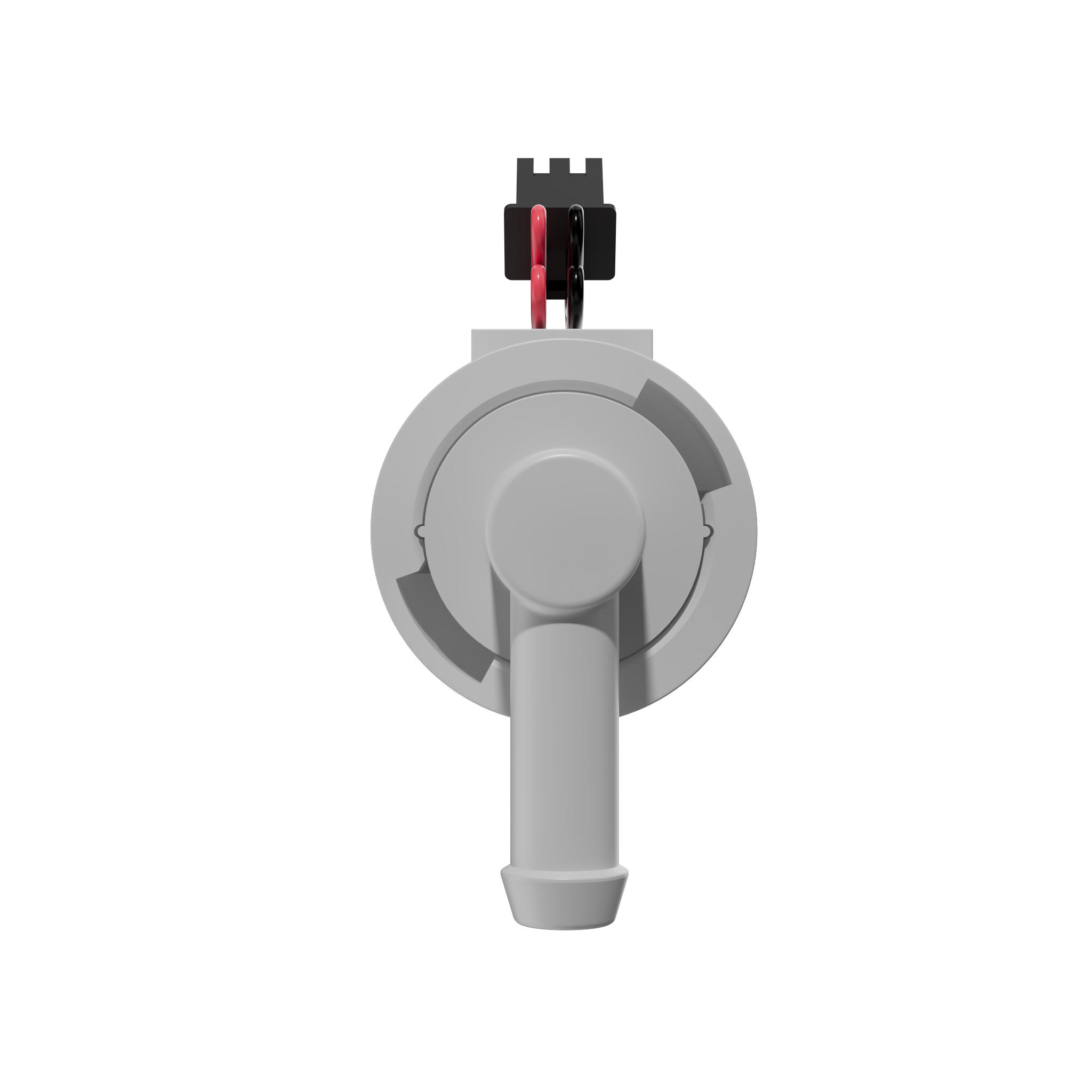

MIT005A Intelligent toilet full waterway UV sterilization module Flowing water disinfection module
Bathroom grade UVC LED UV sterilization module-Adapt to intelligent toilet nozzle, Prevent cross infection
Product Model | MIT005A Intelligent toilet full waterway UV sterilization module |
Product Category | Flowing water disinfection module |
Product documentation |
Product description
Product Features
Application scenarios
Intelligent toilet flow water sterilization module Intelligent toilet dedicated to UVLEDTEK UVLED Sterilization light source, Can effectively inhibit bacteria and deodorize, Significantly improve hygiene standards. We rely on professional UV technology, To provide you with high-quality solutions.
Daily household use: There is no need to worry about hygiene issues when sharing a toilet with the whole family, Triple sterilization for spray bar, water flow, The cylinder body is clean, Elderly and children feel more at ease using it. Women's Special Period: Women have high hygiene requirements during special periods, Spray bar and water flow become cleaner after sterilization, Reduce the risk of infection, More reassuring to use. Families with elderly people: Elderly people have weaker immunity, After sterilization, the cylinder body and spray bar, Reduce exposure to bacteria, Reduce hygiene hazards, Family members are more worry free.
Basic Parameters
parameter name | parameter value |
---|---|
Drive Type | constant voltage driving |
rated voltage | 12 V |
rated current | 110~130 mA |
rated power | 1~1. 6 W |
optical power | 30~35 mW |
peak wavelength | 270~285 nm |
Forward voltage drop | 5~7 V |
Electrostatic withstand voltage HBM | 8 kV |

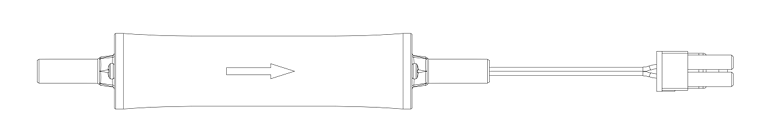

structural dimensions
Detailed specifications
Item | Symbol | Parameter | Unit |
Radiation power | LOP | 30~35 | mW |
Peak wavelength | λp | 270~285 | nm |
Forward voltage | Vf | 5~7 | V |
HBM ESD Level | ESD | 8 | kV |
Frequently Asked Questions
Youweixin provides professional pre-sales and after-sales consultation and services. We will recommend the most suitable one based on your needs UVLED product. If you have any questions, Please feel free to send us an email at any time:
info@uvledtek. com
Due to the large number of emails received every day, And the time zones are different, We may not be able to reply to your email immediately. But we will 24 Reply to your inquiry within one working hour.
UVC UV sterilization module
More mobile water sterilization module products

MIT005A Intelligent toilet full water UV sterilization module, flowing water sterilization module
Suitable for automatic sterilization of smart toilets UVC LED module; IP67 waterproof, Fully sealed design, Can be used in high humidity bathroom environments; Contactless toilet sterilization technology, Provide various types of smart bathrooms UVC LED Solution

MIT006A Flowing water disinfection module
Intelligent toilet with automatic sterilization UVC LED Disinfection and sterilization module; Fully sealed design, Can be used in high humidity bathroom environments; Long service life, simple maintenance; Contactless toilet sterilization technology, Our professional team provides you with various types of smart bathrooms UVC LED Solution

MIT007A Flowing water disinfection module
use UVC LED Industry giant LED package, high reliability, long lifespan, environmental protection and energy conservation; modular design, Small and compact module, Snap on fixation, Easy to install and maintain; sterilization rate' 99. 9%

MWP002A Flowing water disinfection module
No preheating required, Instant sterilization, The sterilization rate is as high as 99. 99%; low energy consumption, long lifespan, super 20000h; Heavy metal free, No chemicals present, Safer water purification treatment methods; Support customized needs

MWP001A Flowing water disinfection module
No preheating required, Instant sterilization, The sterilization rate is as high as 99. 99%; low energy consumption, long lifespan, super 20000h; Heavy metal free, No chemicals present, Safer water purification treatment methods; Support customized needs
