MAC005A

Data Download

Bacterial and virus eradication rate ≥ 99.9%, professional technology, providing effective and reliable air purification solutions

Product characteristics

Reliable performance, high optical power, low power consumption; Compact and easy to integrate structure, wavelength support for customization

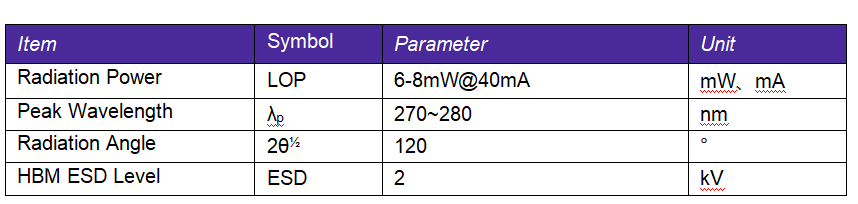

Basic parameters

rated voltage 3~5V
Rated current 75~105mA
rated power 0. 247~0. 346W
peak wavelength 270~280nm
Optical power 6~8mW
radiant angle 120°
Electrostatic withstand voltage HBM 2kV

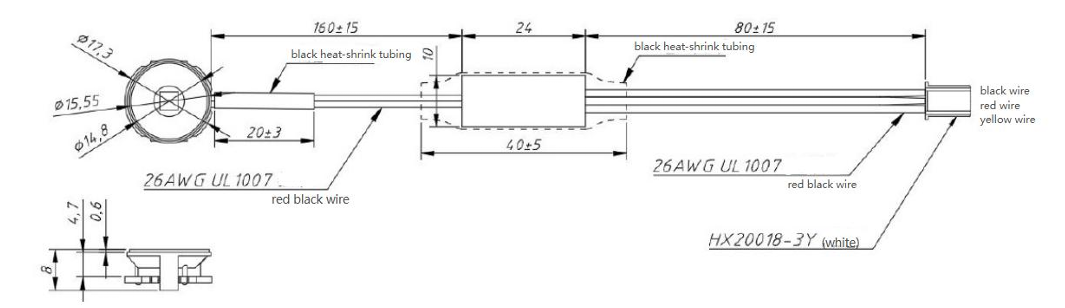

structure size

Data Download

file name category date file type file size
MAC005A Specification
SPECIFICATION 2025-07-29 PDF Loading in progress download
