MAC003A
Sterilization rate ≥ 99.9%, professional technology, providing effective and reliable air purification solutions
Product characteristics
Professional air purification UV module, compact design, easy integration, significant antibacterial and sterilization effects

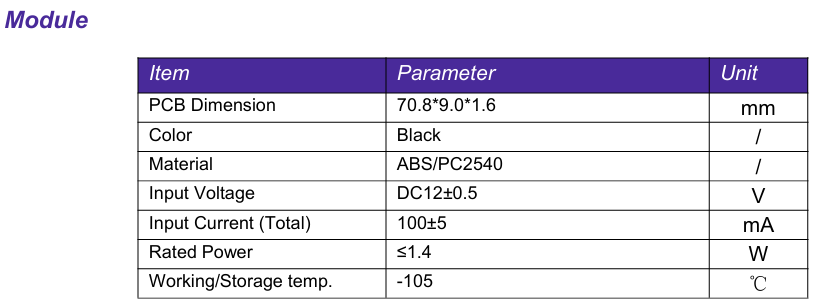

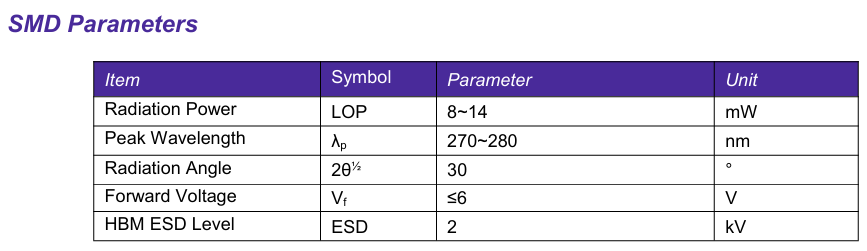

Basic parameters
Optical power
8~14mW
peak wavelength
270~280nm
rated voltage
12V
rated power
≤1. 4W
Light output angle
30°
Forward voltage drop
≤6V
Electrostatic withstand voltage HBM
2kV

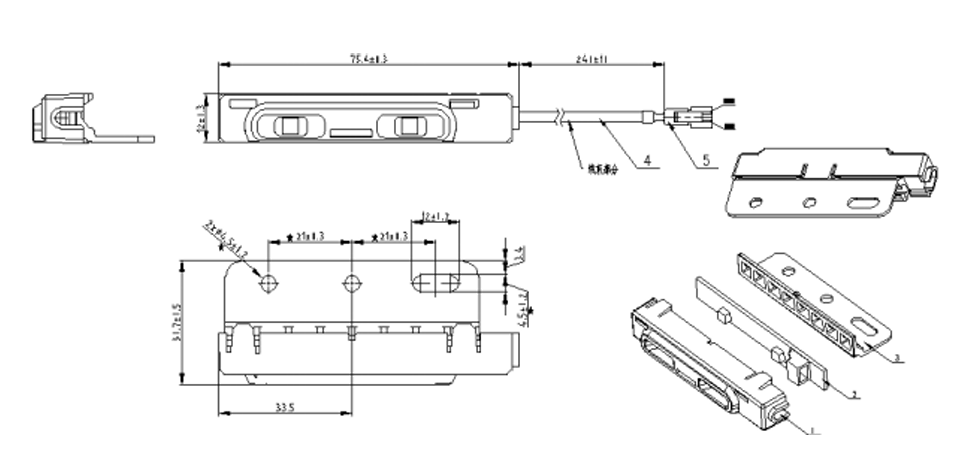

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
MAC003A Specification
|
SPECIFICATION | 2025-07-25 | Loading in progress | download |
