MAC005A Air purification module

Specially designed for air purifiers UVC Deep ultraviolet sterilization module| 6-8mW optical power | 270-280nm Efficient sterilization

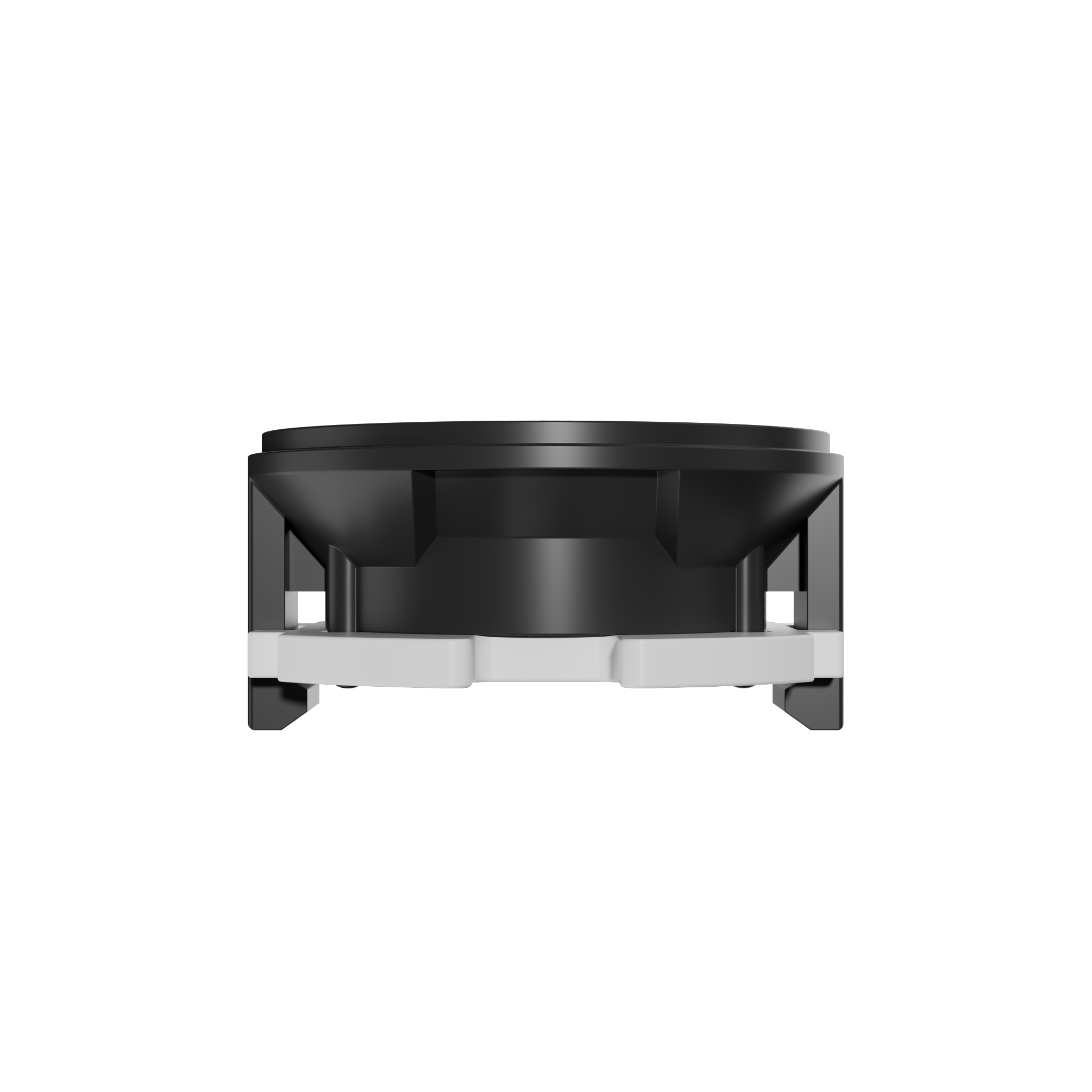

product image

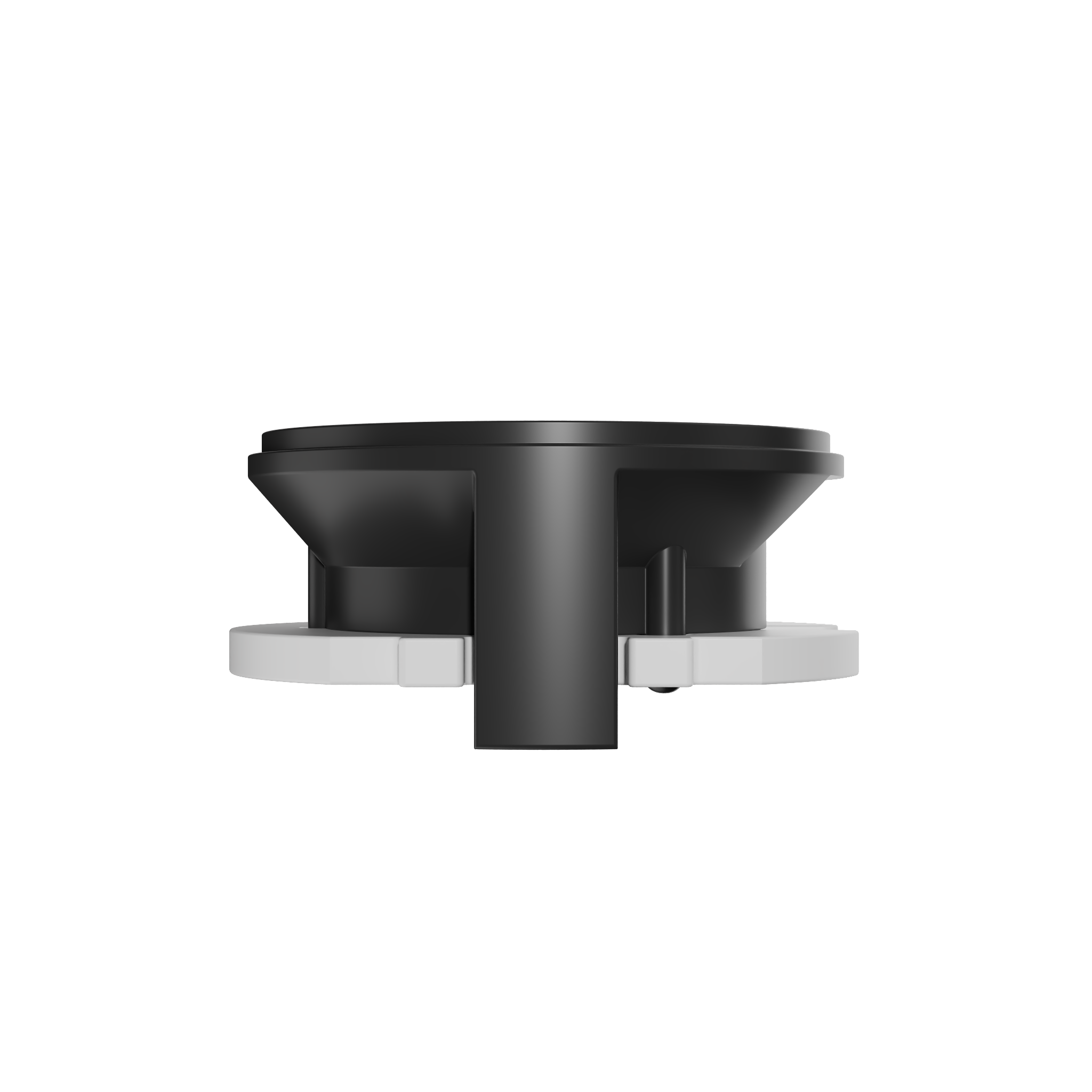

product image
product image
thumbnail
thumbnail
thumbnail
Product Model MAC005A
Product Category Air purification module
Product documentation
MAC005A Specification. pdf
540KB

Product description

Air purification UV The sterilization module is designed specifically for air purification equipment, carry, mount, equip, deploy 270-280nm deep ultraviolet UVC LED, By destroying microorganisms DNA/RNA implement 99. 9%Efficient sterilization. Built in constant current drive circuit, support DC 3. 3V Low voltage power supply, Stable optical power output 6-8mW, Long lifespan 10, 000 hour. Compliant with national standard sterilization certification, Applicable to-10℃~45℃Harsh Environments, It is the core sterilization solution for home healthy air systems

Product Features

Efficient deep ultraviolet sterilization, high reliability, Intelligent security control, Strict quality certification, Convenient integrated design

Application scenarios

Air Purifier Air Purification Module UVLEDTEK relies on professional UV technology, Provide efficient air purifiers UVLED Sterilization light source, Effectively purify the air, Inhibit bacterial growth. Choose UVLEDTEK, Create a fresh and healthy air environment for you.

Mother and baby room・Aseptic respiratory protection: Baby's respiratory system is fragile, UVC LED The module targeted disinfection and sterilization of bacteria in the milk powder tank, Paired with low-noise operation, Make the air in the mother and baby room cleaner, Reduce neonatal eczema, Cough risk. office・Virus firewall: High risk of cross infection among multiple people in the conference room, UVC LED The module quickly disinfection and sterilization the residual virus in droplets, Adapt to desktop purifiers, Let the office air improve "Can disinfect" , Efficiency doubled. Pet Home・farewell "fur baby" odor: pet dander, Urine odor hides dirt and grime, UVC LED Module decomposition odor molecules, Kill cat ringworm fungi, etc, The close contact between the poop shoveler and the pet is more reassuring.

Basic Parameters

parameter name parameter value
Operating Temperature -10~45 °C
humidity 5~80 %RH
rated voltage 3~5 V
rated current 75~105 mA
rated power 0. 247~0. 346 W
optical power 6~8 mW
peak wavelength 270~280 nm
radiant angle 120 °
Electrostatic withstand voltage HBM 2 kV

structural dimensions

Detailed specifications

Frequently Asked Questions

What is the color visible to the naked eye UV-C LED Visible part of the emission spectrum, It comes from oxygen substitution sites in semiconductor materials, Electronic transitions between various deep energy levels such as lattice mismatch dislocations and conduction band energy levels. Because the defect energy level is located higher relative to the quantum well valence band, So the photons emitted by electronic transitions have longer wavelengths, usually 450nm left and right, For visible light. Restricted by the accuracy of semiconductor equipment, Chips from different regions and batches on the wafer, The concentration of material defects, There are slight differences in defect categories. This difference results in a difference in the position of deep energy levels that emit visible light, Further emit visible light of different wavelengths, Presenting different colors. Although the wavelength difference is very small, But it is noticeable to the naked eye.
UVC-LED Will not produce ozone, Because the covalent bond between oxygen and oxygen can reach up to 5. 1eV, The corresponding wavelength needs to be at least shorter than 243nm Only ultraviolet rays can interrupt it, Ultimately generate ozone.
