MAU002A
Specially designed for car refrigerators, equipped with 2 270-280nm UVC light beads (each ≥ 25mW) and 2 4000K white light beads. IP67 protection level resists condensation water vapor, operates in a wide temperature range of -40 ℃~85 ℃, and AEC-Q102 vehicle certification ensures reliability. ≤ 2.5W ultra-low power consumption, 30 ° focused beam can accurately disinfection and sterilization pathogens in narrow space
Product characteristics
★ 极端环境：-40℃~85℃工作温度｜95%RH 高湿环境 ★ 安全防护：IP67 密封等级｜8V/12V 双电压输入 ★ Energy efficiency ratio: ≤ 2.5W power consumption (UVC 220mA+white light 40mA) ★ 光学性能：4000±500K 自然白光｜30°精准照射角

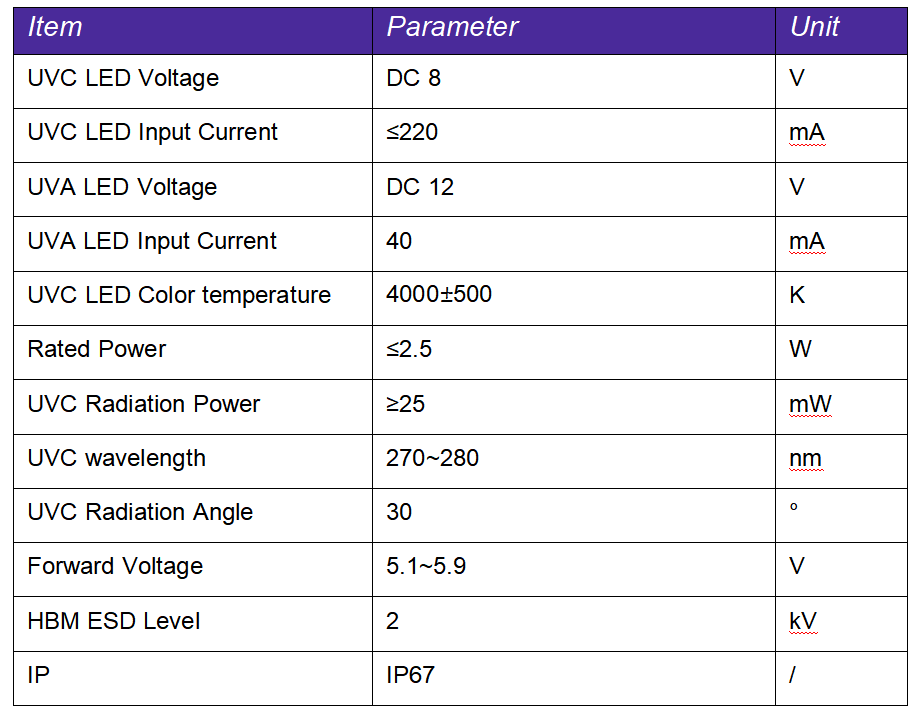

Basic parameters
operation temperature
-40〜85°C
humidity
0〜95%RH
protection grade
IP67
UVC bulb voltage
DC 8BV
UVC LED input current
≤220 mA
White light bulb voltage
DC 12 V
White light bulb input current
40 mA
rated power
≤2. 5 W

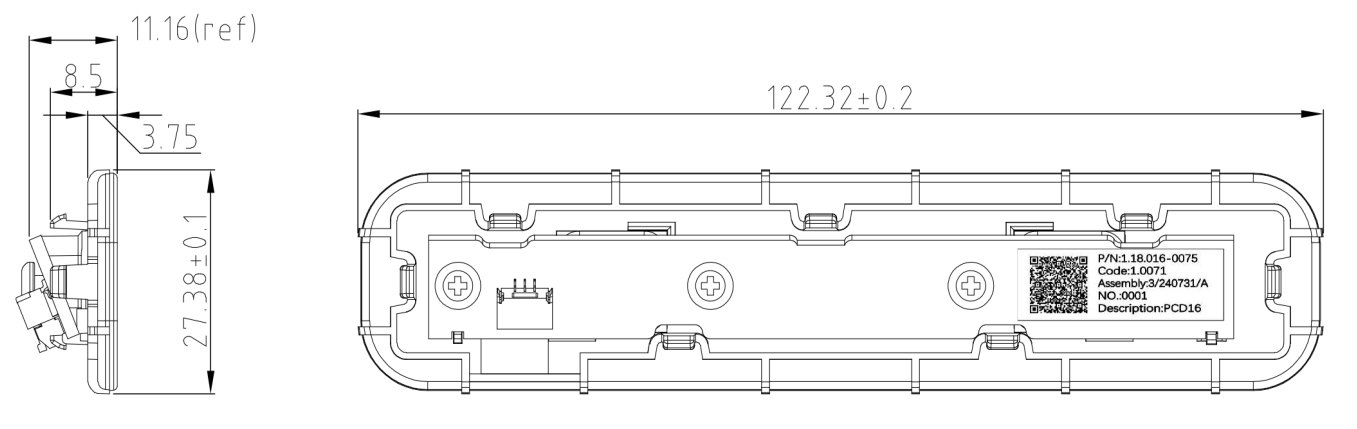

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
MAU002A Specification
|
SPECIFICATION | 2025-07-25 | Loading in progress | download |
