MAU001A

Data Download

Youweixin MWJ001A vehicle specification level UVC disinfection and sterilization module is specially developed for on-board air conditioning system. Equipped with two 260-280nm short wavelength lamp beads (each 25-30mW), covering the airflow path with a 120 ° wide-angle, and capable of starting at -40 ℃ low temperature. Through 550V withstand voltage/8kV ESD certification, it meets 10 vehicle regulations standards such as GB/T 28046, ensuring a 99.9% pathogen inactivation rate for air conditioning systems in electric vehicles and commercial buses

Product characteristics

车规级:通过-40℃~85℃高低温循环 、96h 盐雾试验 、550V/1min 耐压绝缘(>10MΩ); Optical performance: 260-280nm short wavelength (penetrating microbial DNA), dual lamp beads with a total optical power of 50-60mW, 120 ° wide-angle no dead angle irradiation

MAU001A

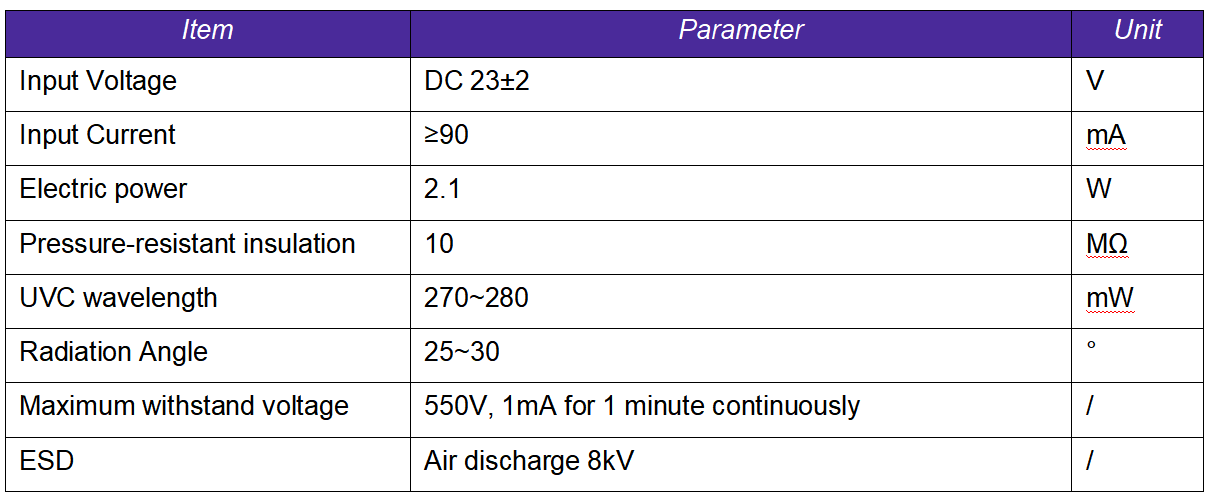

Basic parameters

INPUT VOLTAGE DC 23±2V
Input Current ≥90mA
electric power <2. 1W
Voltage resistant insulation ' 10MΩ
UVC lamp wavelength 270-280 nm
UVC light power 25-30 mW
UVC lamp emission angle 120°
Maximum withstand voltage 550V, 1mA for 1 minute
antistatic Air discharge 8KV

structure size

No structural dimension information available at the moment

Data Download

file name category date file type file size
MAU001A Specification
SPECIFICATION 2025-07-25 Loading in progress download
