MSS002A

Data Download

Specially designed for robotic vacuum cleaners, equipped with 4 270-285nm UVC light beads (each with a light power of ≥ 24mW)+1 UVA light bead+6 white LEDs. Constant voltage drive (12-16V), overall power ≤ 3W, supports harsh environments ranging from -40 ℃ to 65 ℃. 99.9% pathogen inactivation is achieved through aluminum substrate heat dissipation and shockproof packaging to meet the immediate disinfection and sterilization needs of household and commercial cleaning equipment

Product characteristics

Optical system: Four core deep ultraviolet UVC (270-285nm), synergistic UVA (390-405nm) long-lasting antibacterial, white light assisted illumination (3000K color temperature, 26-30LM); Electrical performance: 12-16V wide voltage constant current drive, BP1808A professional IC current control, HBM 2kV electrostatic protection

MSS002A

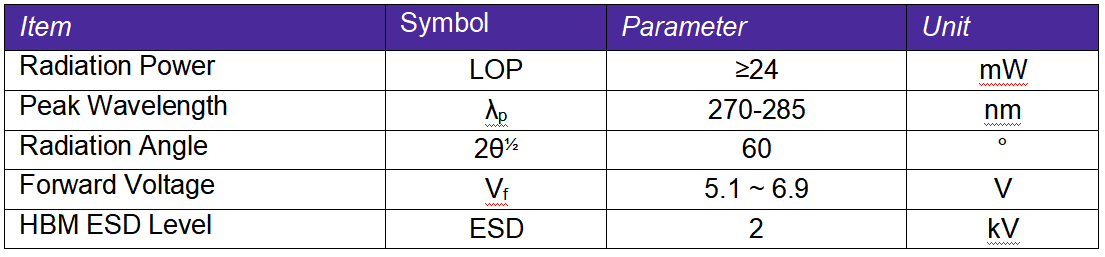

Basic parameters

Drive mode constant voltage
rated voltage 12-16V
UVC rated (total) input current ≤240mA
UVA rated (total) input current ≤90mA
Number of UVC LED beads 4 pcs
Number of UVA LED beads 1pc
rated power ≤3W

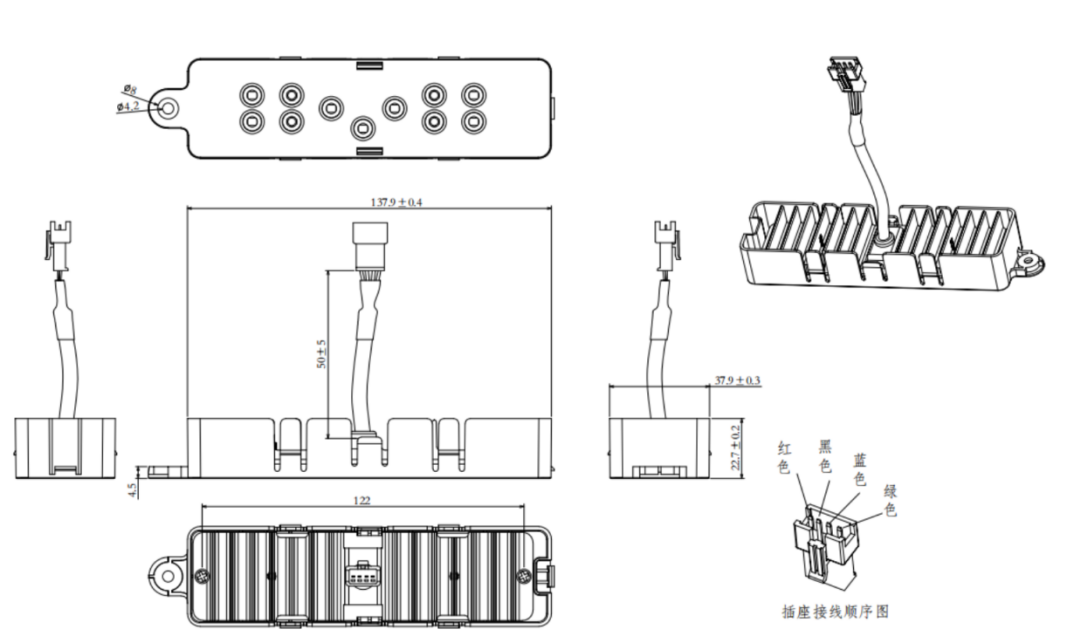

structure size

Data Download

file name category date file type file size
MSS002A Specification
SPECIFICATION 2025-07-25 Loading in progress download
