MSS001A

Data Download

Designed specifically for surface sterilization and static water treatment, using deep ultraviolet wavelengths of 270-280nm. Equipped with 8 UVC light beads (each with 10-20mW optical power), constant current drive ensures stable output, and operating temperature ranges from -40 ℃ to 65 ℃. Through RoHS certification, we provide customized connection solutions for PCBA light boards, suitable for industrial scenarios such as medical, water purification, and cold chain, and efficiently inactivate 99.9% of pathogenic microorganisms

Product characteristics

Disinfection and sterilization core: 32 deep UV LEDs (3535 package); Wavelength: 270-280nm (optimal sterilization band); Power: 1.6-3.2W (theoretical value of the entire module); Durability: 2000 hours of light decay<30% (industry standard); Protection: IP65 level requirements can be customized (requiring structural coordination)

MSS001A

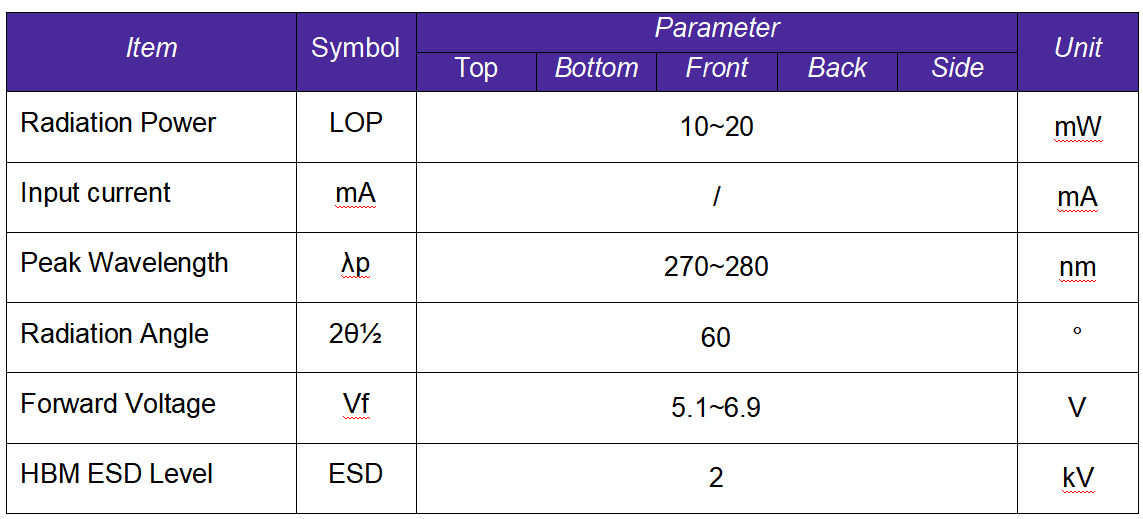

Basic parameters

Drive mode constant current
Rated current (UVC) 100mA
Rated voltage (UVC) 12V
Rated current (white light) 10mA
Rated voltage JavaScript:; (White light) 3V

structure size

No structural dimension information available at the moment

Data Download

file name category date file type file size
MSS001A Specification
SPECIFICATION 2025-07-25 Loading in progress download
