MIT004A
Compact module structure, suitable for most smart toilets; Pure physical disinfection and sterilization, no mercury and ozone, safe and reliable; Sterilization rate up to 99.9%, low-energy design, energy-saving and environmentally friendly
Product characteristics
UVC LED module suitable for automatic sterilization of smart toilets; IP67 waterproof, fully sealed design, suitable for use in high humidity bathroom environments; Contactless toilet sterilization technology, efficient sterilization, protecting physical health

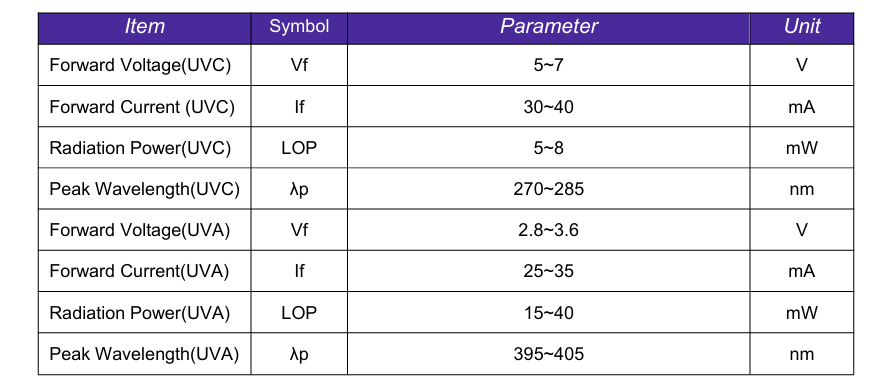

Basic parameters
Drive mode
constant voltage driving
rated voltage
12V
Rated current
35±5mA
electric power
0. 4W
Optical power (UVC)
5~8mW
Peak wavelength (UVC)
270-285nm
Positive Voltage Drop (UVC)
5~7V
Optical power (UVA)
15~40mW
Peak wavelength (UVA)
395~405nm
Drive current (UVA)
40~60mA
Working voltage (UVA)
2. 8~3. 6V
HBM electrostatic withstand voltage
8kV

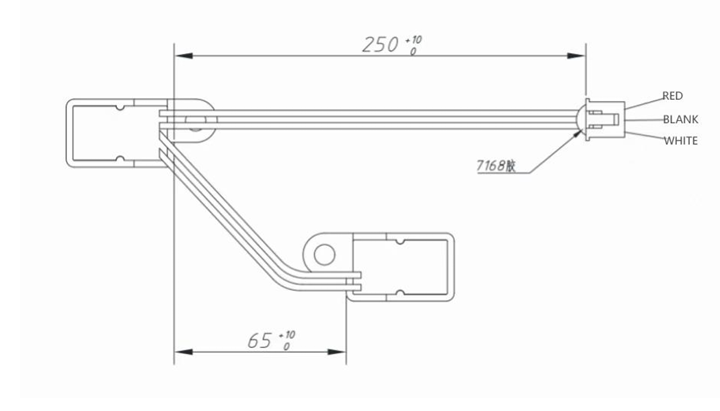

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
MIT004A Specification
|
SPECIFICATION | 2025-07-25 | Loading in progress | download |
