MIT003A
270-285nm deep ultraviolet UVC LED module - efficient sterilization of intelligent toilet nozzle, with a sterilization rate of up to 99.9%; IP67 waterproof and moisture-proof, fully sealed design, suitable for high humidity bathroom environments; Long service life of up to 20000 hours
Product characteristics
Glass sheet injection molding, with good sealing, minimal environmental impact, and high reliability; The LED beads adopt UVA+UVC dual color, allowing consumers to more intuitively perceive UVC for sterilization work; Modular design, compact modules, easy to install and maintain

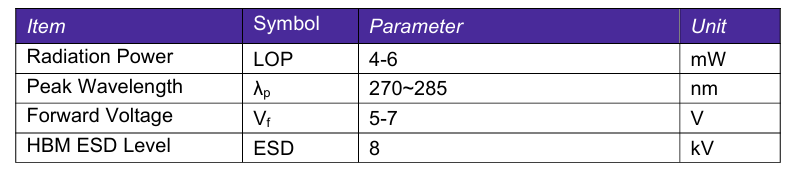

Basic parameters
Drive mode
constant voltage driving
rated voltage
12V
Rated current
20±5mA
electric power
0. 24W
Optical power (UVC)
4~6mW
Peak wavelength (UVC)
270-285nm
Light output angle (UVC)
120°
Positive Voltage Drop (UVC)
5~7V
Optical power (UVA)
15~40mW
Peak wavelength (UVA)
395~405nm
Drive current (UVA)
40~60mA
Working voltage (UVA)
2. 8~3. 6V
HBM electrostatic withstand voltage
8kV

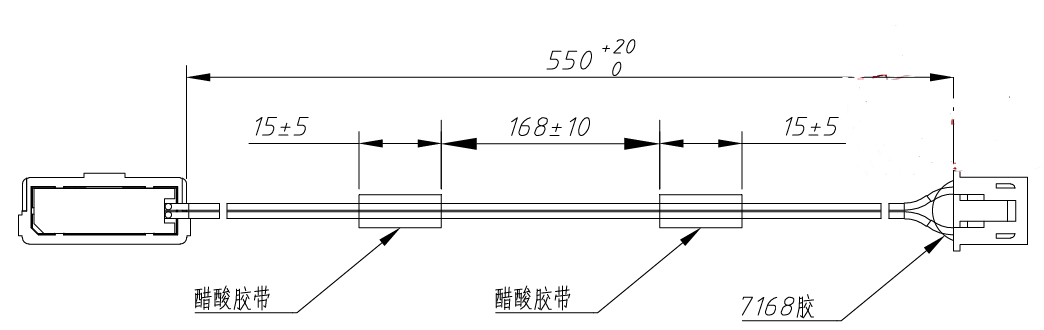

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
MIT003A Specification
|
SPECIFICATION | 2025-07-25 | Loading in progress | download |
