MIT002A

Data Download

270-285nm deep ultraviolet UVC LED module - efficient sterilization of intelligent toilet nozzle, with a sterilization rate of up to 99.9%; IP67 waterproof and moisture-proof, fully sealed design, suitable for high humidity bathroom environments; Long service life of up to 20000 hours

Product characteristics

Glass sheet injection molding, with good sealing, minimal environmental impact, and high reliability; Efficient sterilization and protection of physical health; The module has a compact size, making it easy to install and maintain

MIT002A

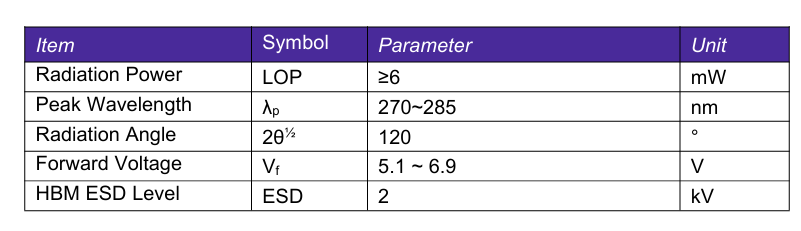

Basic parameters

Drive mode constant voltage driving
rated voltage 12V
Rated current 20±5mA
electric power
Optical power (UVC) ' 6mW
Peak wavelength (UVC) 270-285nm
Light output angle (UVC) 120°
Positive Voltage Drop (UVC) 5. 1~6. 9V
HBM electrostatic withstand voltage 2kV

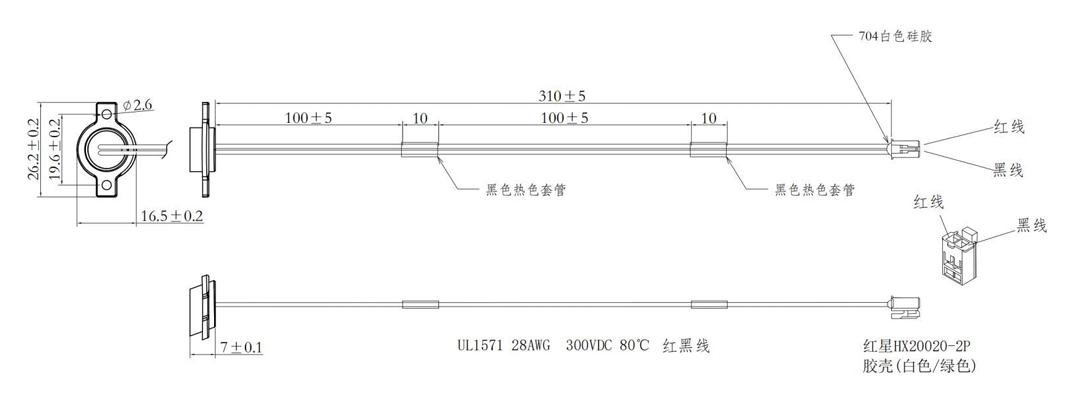

structure size

Data Download

file name category date file type file size
MIT002A Specification
SPECIFICATION 2025-07-25 Loading in progress download
