MIT001A
270-285nm deep ultraviolet UVC LED module - efficient sterilization of intelligent toilet nozzle, with a sterilization rate of up to 99.9%; IP67 waterproof and moisture-proof, fully sealed design, suitable for high humidity bathroom environments; Long service life of up to 20000 hours
Product characteristics
Glass sheet injection molding, with good sealing, minimal environmental impact, and high reliability; 、 The LED beads adopt UVA+UVC dual color, allowing consumers to more intuitively perceive UVC for sterilization work; Modular design, compact module, snap on fixation, convenient installation and maintenance

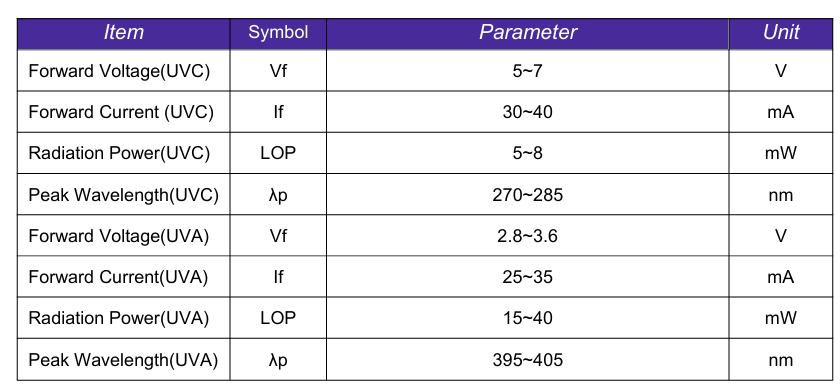

Basic parameters
rated voltage
12V
LED type
Two tone, UVC+UVA
drive current
20mA
electric power
0. 25W
Optical power (UVC)
5~8mW
Peak wavelength (UVC)
270-285nm
Light output angle (UVC)
120°
Positive Voltage Drop (UVC)
5~7V
Peak wavelength (UVA)
395~405nm
Optical power (UVA)
15~40mW
structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
MIT001A Specification
|
SPECIFICATION | 2025-07-25 | Loading in progress | download |
