MWM002A
Sterilization rate ≥ 99.9%, professional technology, providing effective and reliable washing machine purification solutions
Product characteristics
UVC LED module designed specifically for washing machines; Youweixin professional disinfection and sterilization deep UV module, bacteriostasis and sterilization, cleaning and protecting clothes, and supporting customized scheme

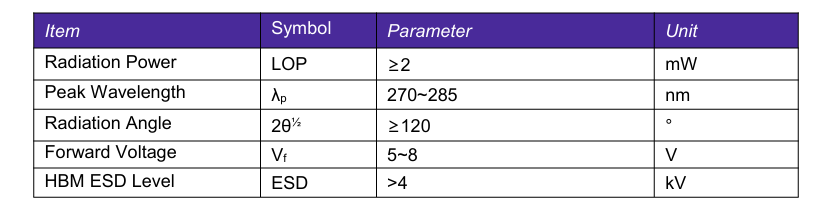

Basic parameters
Drive mode
constant voltage driving
rated power
Optical power
≥2mW
peak wavelength
270~285nm
viewing angle
120°
Forward voltage drop
5~8V
Electrostatic Withstand Voltage (HBM)
2kV

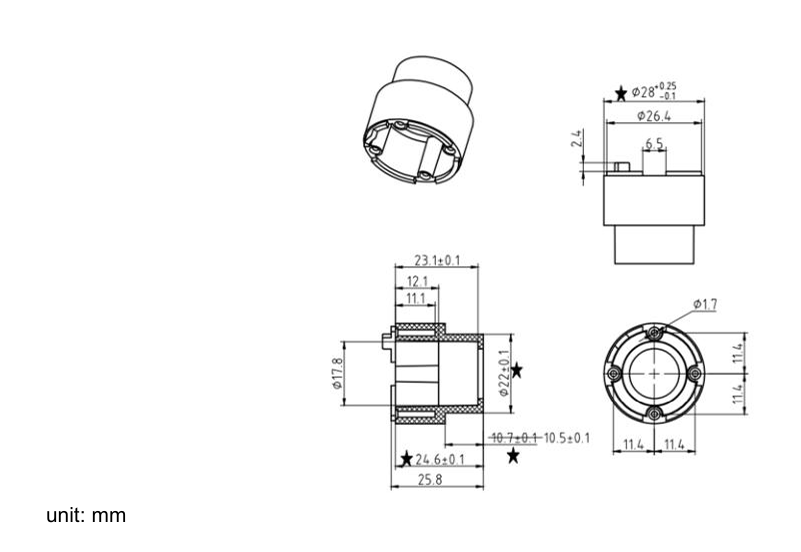

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
MWM002A Specification
|
SPECIFICATION | 2025-07-25 | Loading in progress | download |
