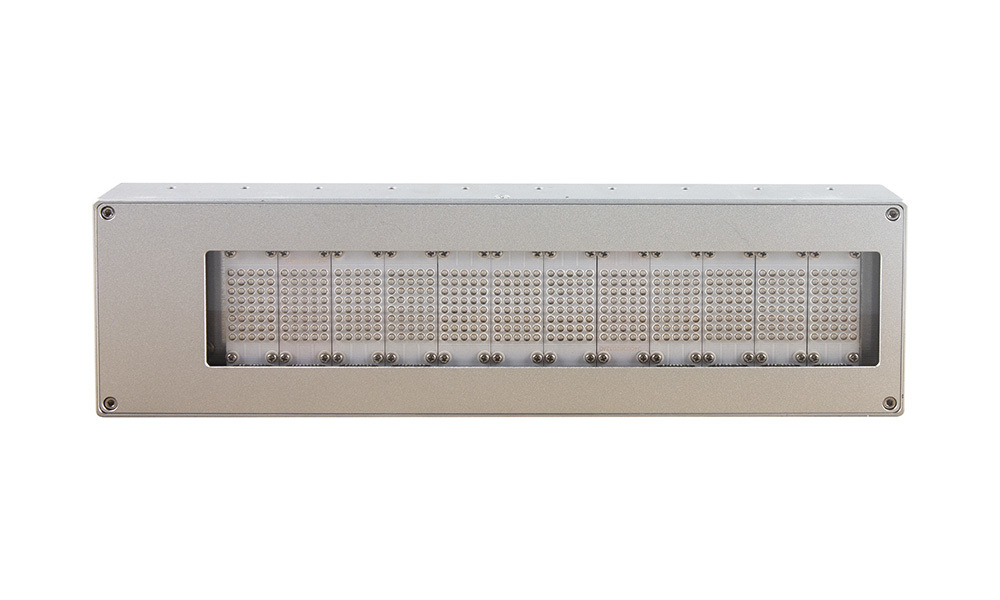

200 × 30 LCD panel UVA curing light source
Product characteristics
High uniformity assists in high-quality manufacturing of LCD panels
wavelength
395 nm
Effective irradiation area
200×30 mm
Basic parameters
wavelength
395 nm
radiance
Veneer 28 W/cm2
Effective irradiation area
200×30 mm
Irradiation distance
5~10 mm
Cooling method
water-cooling
Dimensions
262×90×30 mm
Whole machine weight
About 2KG
control mode
Dry contact (relay) control
Drive power supply
1A
Whole machine power
Approximately 2500W

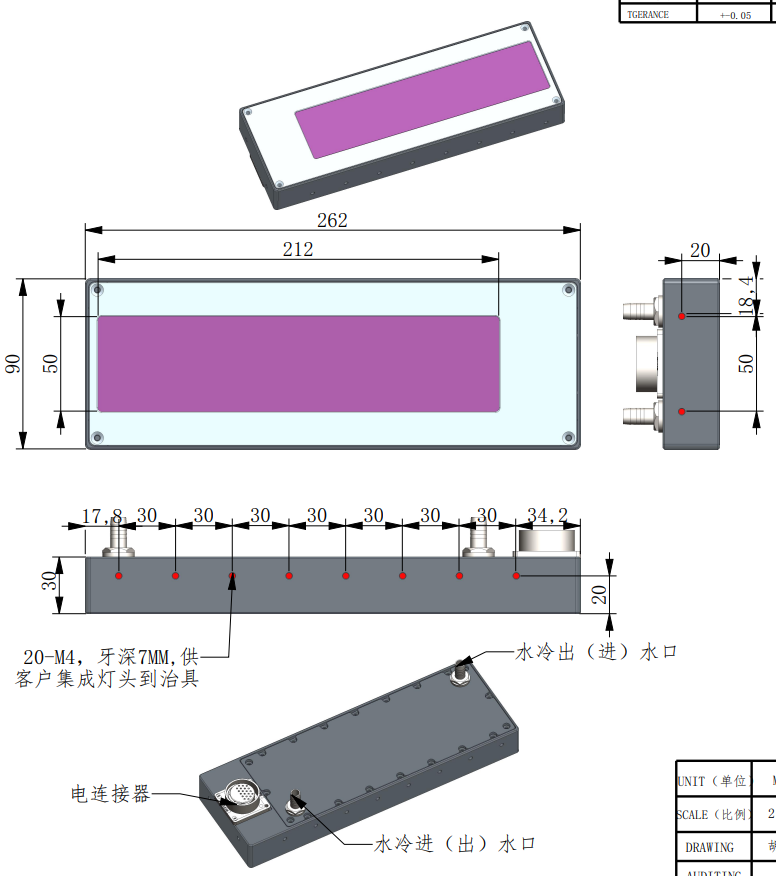

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
200x30 LCD Panel Curing UVA Light Source Product Specification
|
SPECIFICATION | 2025-07-06 | Loading in progress | download |
