330 air-cooled label printing UVA light source
Product characteristics
The UVLED label curing light source system can adapt to different models such as intermittent, flexographic printing, rotary offset printing, etc. It is environmentally friendly, energy-saving, and has stable performance. Mainstream specifications such as 240A, 330A, 470A, 650A, 1300A, 1650A, etc
wavelength
385 nm
Effective irradiation area
330 × 40 mm
Basic parameters
wavelength
385 nm
Effective irradiation area
330×40 mm
radiance
About 16W/cm2 @ veneer
Suggested irradiation distance
3~5 mm
Cooling method
forced air cooling
Dimensions
542×407×203 mm
Whole machine weight
About 15KG
control mode
Alternative options such as switch signal/level signal/PLC control
Drive power supply
AC 220V
power consumption
About 2000W

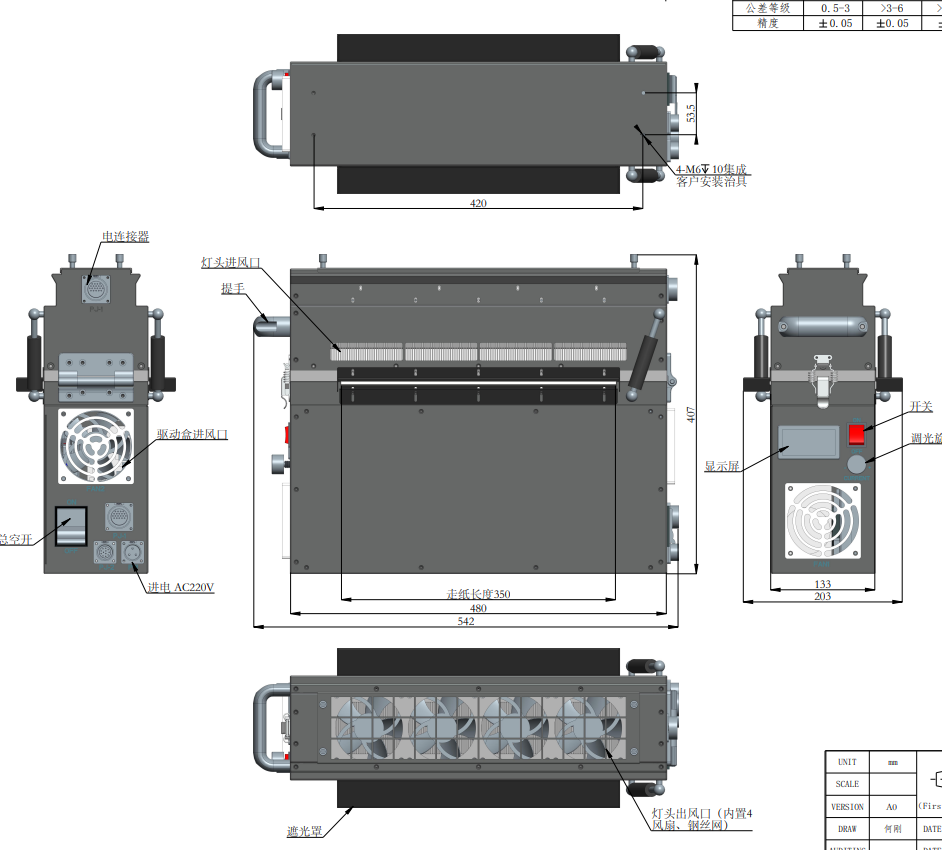

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
Specification for 330 label printing light source (air-cooled)
|
SPECIFICATION | 2025-07-06 | Loading in progress | download |
