Fiber optic coloring UVA curing water-cooled light source
Product characteristics
The water-cooled fiber optic color light source has a small volume and is easy to maintain and operate. Water cooling can effectively and stably reduce the junction temperature of light-emitting chips, thereby extending the service life and light stability of optical modules. ● Uniform energy, peak illumination up to 40W/cm ² (forming a uniform light column area with a diameter of 10mm around the optical fiber) ● Luminous area up to 500mm ● Easy and convenient maintenance ● Easy and fast installation ● Small size, simple appearance, generous ● No light leakage around the lamp body
wavelength
395 nm
Effective irradiation area
480×40 mm
Basic parameters
wavelength
395 nm
radiance
12 W/cm2
Effective irradiation area
480×40 mm
Cooling method
Water cooling+air cooling
Suggested irradiation height
5~8 mm
Dimensions
805×150×223. 5 mm
Whole machine weight
About 19KG
control mode
PLC control
Drive power supply
6000W water-cooled power supply
power consumption
3100W

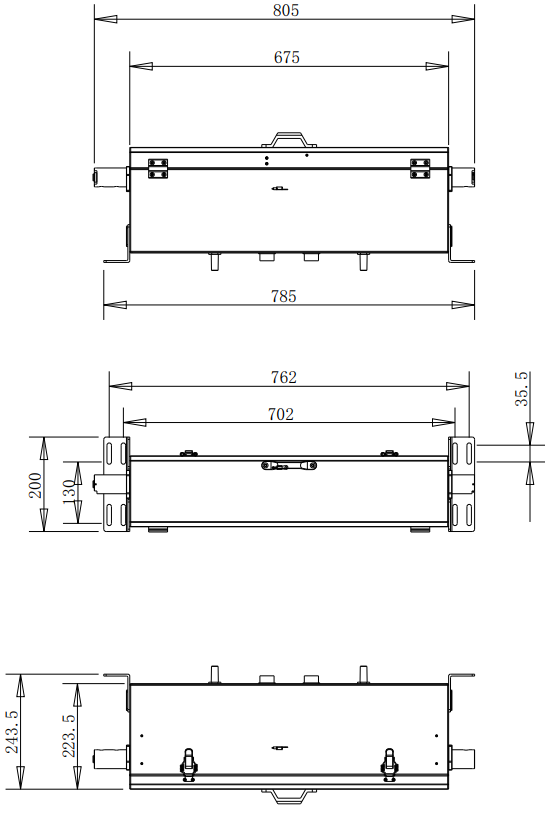

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
Product Specification for Fiber Colored UVA Curing Light Source
|
SPECIFICATION | 2025-07-06 | Loading in progress | download |
