2020 mil UVC LED eutectic chip
Product characteristics
UVC band, high optical power, high reliability, long lifespan, environmentally friendly and energy-saving
wavelength
260~285 nm
Optical power
10~40 mW

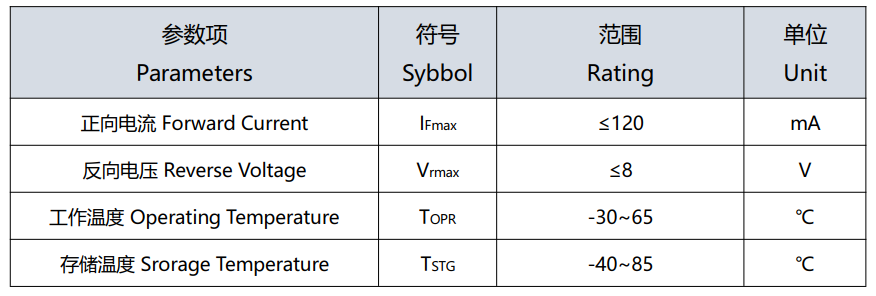

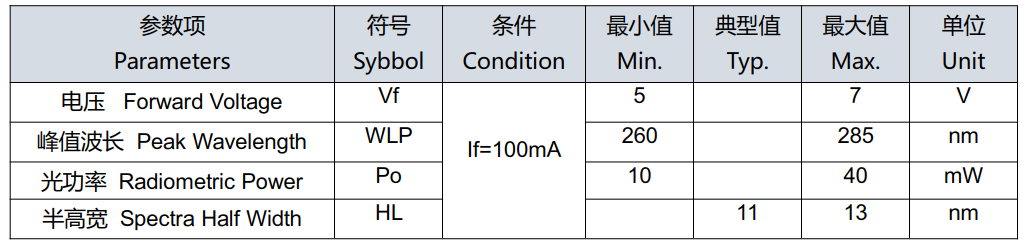

Basic parameters
length
546±30 μm
width
546±30 μm
thickness
340±30 μm
GAP width
100±5 μm
chip structure
inversion
electrode
Au/Sn alloy
wavelength
260~285 nm
Optical power
10~40 mW @ 100 mA

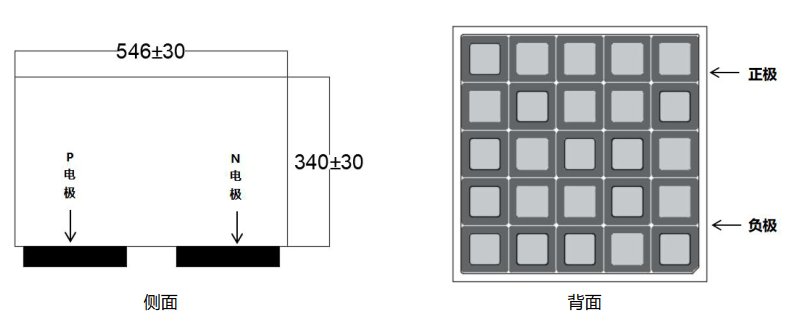

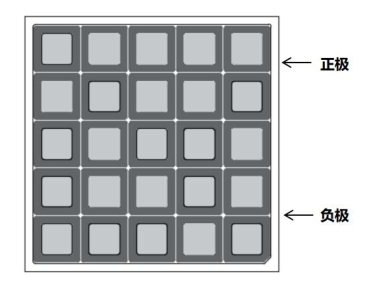

structure size
Data Download
| file name | category | date | file type | file size | |
|---|---|---|---|---|---|
|
UVC Chip 20mil Product Specification
|
SPECIFICATION | 2025-07-09 | Loading in progress | download |
