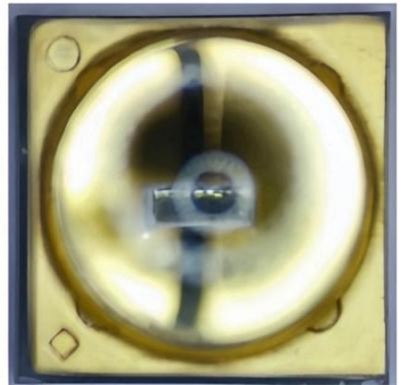

LD2AHAA UVC LED LED package
| Product Model | LD2AHAA |
| Product Category | UVC LED LED package |
| wavelength | 260~280 nm |
| optical power | 15~50 mW |
| Working Voltage | 5~7 V |
| Light output angle | 60° |
| Product documentation |
Application scenarios
Maternal and Child Disinfection Cabinet UVC LED LED package Yuweixin's specialized mother and baby disinfection cabinet UVLED UV light source, Safe and Efficient, It is an ideal choice for caring for the health of mothers and infants. We use professional technology, Provide reliable solutions for disinfection of maternal and infant products.
Bottle tableware - Every time I use it, it feels like new: Disinfect milk bottles, baby food bowl, Breast pump, etc, UVC Light directly reaches the inner wall, Eliminate bacteria that breed in milk stains residue, avoid "Clean but not disinfected" Causing diarrhea in the baby. Pacifier gum - Baby bites with peace of mind: A pacifier designed for babies who frequently nibble on it, teether, No chemical residue after sterilization, No need for additional rinsing, Even if the baby enters directly, there is no need to worry about stimulating the mouth. comfort toy - Playing with others is also possible "Aseptic interaction" : plush toy, Plastic bells and other items that are prone to dirt accumulation, Disinfect and kill surface mites, Saliva residue bacteria, Baby holding and playing, Reduce the risk of contact infection when biting.
Basic Parameters
| parameter name | parameter value |
|---|---|
| wavelength | 260~280 nm |
| optical power | 15~50 mW |
| Working Voltage | 5~7 V |
| Light output angle | 60° |
| Package Size | 3535 |
| Lamp bead height | 3. 05 mm |
| Substrate material | aluminum nitride |
| drive current | 100 mA |
structural dimensions
Detailed specifications
parameter |
test conditions |
symbol |
numerical value |
grading |
unit |
||
minimum |
typical value |
maximum |
|||||
UVCpeak wavelength |
If=100 mA |
WLP |
260 |
|
280 |
10 |
nm |
Half wave width |
If=100 mA |
Δλ |
7 |
|
13 |
/ |
nm |
optical power |
If=100 mA |
Po |
15 |
|
50 |
/ |
mW |
UVCWorking Voltage |
If=100 mA |
Vf |
5 |
|
7 |
0. 1 |
V |
beam angle |
If=100 mA |
2θ1/2 |
50 |
60 |
70 |
/ |
Deg |
Reverse leakage |
Vr=5 V |
Ir |
0 |
|
1 |
/ |
μA |
thermal resistance |
If=100 mA |
Rth (j-s) |
|
≤20 |
|
|
℃/W |
UVA Optoelectronic parameters
parameter |
symbol |
numerical value |
unit |
UVApeak wavelength |
λp |
395-405 |
nm |
UVARadiation flux |
Po |
30-100 |
mW |
UVAdrive current |
If |
40-150 |
mA |
UVAWorking Voltage |
Vf |
3. 0-4. 0 |
V |
data curve
Reliability project
test project |
Relevant standards |
test conditions |
test cycle |
Failure Criteria |
Number of failures |
Room temperature aging |
JEDEC JESD22 A108. C |
Ta=25 ℃, If =100 mA Rthja=22 ℃/W |
1000 hour |
ΔPo' 15% ΔVF' 10% |
0/10 |
thermal shock |
JEDEC JESD22-A104 |
-40 ℃to100 ℃Temperature changes, 30 mina cycle |
300time |
0/10 |
|
anti-static |
ANSI/ESDA/ JEDEC JS-001 |
HBM , 2 KV, 1. 5 kΩ, 100 pF, 3 pulses |
|
0/50 |
|
vibration |
JEDEC JESD22-B110 |
200 m/s2, 20 Hz , x. y. z Three directions |
24hour |
0/10 |
|
Low-temperature storage |
EIAJED4701/200 (202) |
Ta=-40 ℃ |
1000hour |
0/10 |
|
high temperature storage |
EIAJED4701/200 (201) |
Ta=100 ℃ |
1000hour |
0/10 |
|
Anti reflux |
EIAJED4701/300 (304) |
Peak≤260 ℃, 10Temperature zone reflux |
1time |
0/100 |
