LS2MQBB UVC LED LED package
Product Model | LS2MQBB |
Product Category | UVC LED LED package |
shipment volume | super 100KK |
dedicated to | Home appliance sterilization scene |
lens | sapphire |
Product documentation |
Product Features
Application scenarios
Plant growth regulation UVC LED LED package Specially designed for plant growth regulation by UVLEDTEK UVLED light source, Can effectively promote the healthy growth of plants. We use professional agricultural UV technology, Provide high-quality light source solutions for the agricultural planting industry.
Greenhouse fruit and vegetable cultivation: Used for tomatoes, Planting strawberries and other fruits and vegetables, UVA Promote fruit coloring and sugar accumulation, UVB Enhance resilience, Improve the taste and product rate of fruits and vegetables. Cultivation of medicinal plants: Suitable for ginseng, Medicinal plants such as Dendrobium officinale, Multi wavelength modulation promotes the synthesis of active ingredients, simultaneously UVC Inhibit pathogens, Enhance medicinal value and survival rate. Seedling stage: Regarding vegetables, Flower seedlings, Regulating light sources to promote root development and stunted growth, Reduce excessive length, Improve the survival rate of seedling transplantation.
Crustacean aquaculture UVC LED LED package Yuweixin's Crustacean Breeding Specialty UVLED UV sterilization light source, Can effectively improve the quality of aquaculture water, Provide guarantees for the healthy growth of crustaceans. We focus on providing professional sterilization solutions for the agricultural breeding industry.
shrimp culture: Regarding shrimp farming, Promote the shedding and growth of seedlings, Reduce the proportion of soft shell shrimp, The shell of adult shrimp is thick and shiny, Enhance product level and market competitiveness. Crab culture: Used for river crab farming, Assist in smooth shell replacement during the molting period, Reduce the mortality rate of molting, Crab paste filled with yellow fat, Hard shell, Improve the survival rate of aquaculture. Lobster farming: Suitable for lobster farming, Promote seedling growth and adult shrimp shell development, Reduce diseases caused by calcium deficiency, Improve lobster specifications and yield.
Maternal and Child Disinfection Cabinet UVC LED LED package Yuweixin's specialized mother and baby disinfection cabinet UVLED UV light source, Safe and Efficient, It is an ideal choice for caring for the health of mothers and infants. We use professional technology, Provide reliable solutions for disinfection of maternal and infant products.
Bottle tableware - Every time I use it, it feels like new: Disinfect milk bottles, baby food bowl, Breast pump, etc, UVC Light directly reaches the inner wall, Eliminate bacteria that breed in milk stains residue, avoid "Clean but not disinfected" Causing diarrhea in the baby. Pacifier gum - Baby bites with peace of mind: A pacifier designed for babies who frequently nibble on it, teether, No chemical residue after sterilization, No need for additional rinsing, Even if the baby enters directly, there is no need to worry about stimulating the mouth. comfort toy - Playing with others is also possible "Aseptic interaction" : plush toy, Plastic bells and other items that are prone to dirt accumulation, Disinfect and kill surface mites, Saliva residue bacteria, Baby holding and playing, Reduce the risk of contact infection when biting.
Basic Parameters
parameter name | parameter value |
---|---|
wavelength | 260~280 nm |
optical power | 6~15mW |
drive current | 40 mA |
Working Voltage | 5~7 V |
Light output angle | 120° |
Substrate material | aluminum nitride |
Lens Material | sapphire |

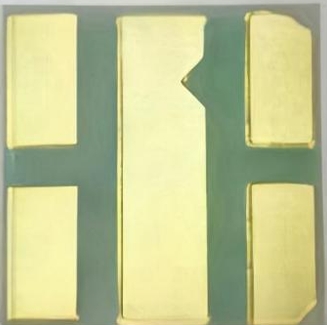

structural dimensions
Detailed specifications
parameter |
test conditions |
symbol |
numerical value |
grading |
unit |
||
minimum |
typical value |
maximum |
|||||
UVCpeak wavelength |
If=40 mA |
WLP |
260 |
|
280 |
10 |
nm |
Half wave width |
If=40 mA |
Δλ |
7 |
|
13 |
/ |
nm |
optical power |
If=40 mA |
Po |
6 |
|
15 |
/ |
mW |
UVCWorking Voltage |
If=40 mA |
Vf |
5 |
|
7 |
0. 1 |
V |
beam angle |
If=40 mA |
2θ1/2 |
110 |
120 |
130 |
/ |
Deg |
Reverse leakage |
Vr=5 V |
Ir |
0 |
|
1 |
/ |
μA |
thermal resistance |
If=40 mA |
Rth (j-s) |
|
≤20 |
|
|
℃/W |
Extreme conditions
parameter |
symbol |
numerical value |
unit |
power consumption |
Pd |
560 |
mW |
forward current |
If |
80 |
mA |
forward voltage |
Vf |
5~7 |
V |
Operating Temperature |
Topr |
-30~85 |
℃ |
Storage temperature |
Tstg |
-40~100 |
℃ |
junction temperature |
Tj |
≤110 |
℃ |
static electricity (HBM) |
ESD |
2000 |
V |
data curve
Reliability project
test project |
Relevant standards |
test conditions |
test cycle |
Failure Criteria |
Number of failures |
Room temperature aging |
JEDEC JESD22 A108. C |
Ta=25 ℃, If =40 mA Rthja=22 ℃/W |
1000 hour |
ΔPo' 15% ΔVF' 10% |
0/10 |
thermal shock |
JEDEC JESD22-A104 |
-40 ℃to100 ℃Temperature changes, 30 mina cycle |
300time |
0/10 |
|
anti-static |
ANSI/ESDA/ JEDEC JS-001 |
HBM , 2 KV, 1. 5 kΩ, 100 pF, 3 pulses |
|
0/50 |
|
vibration |
JEDEC JESD22-B110 |
200 m/s2, 20 Hz , x. y. z Three directions |
24hour |
0/10 |
|
Low-temperature storage |
EIAJED4701/200 (202) |
Ta=-40 ℃ |
1000hour |
0/10 |
|
high temperature storage |
EIAJED4701/200 (201) |
Ta=100 ℃ |
1000hour |
0/10 |
|
Anti reflux |
EIAJED4701/300 (304) |
Peak≤260 ℃, 10Temperature zone reflux |
1time |
0/100 |
